Product Overview
Single mechanical seal parts are the replaceable components used to assemble or repair single-face mechanical seals for pumps and rotating equipment. These parts include the rotating face, stationary seat, spring(s) or bellows, secondary seals (O-rings / gaskets), gland and fasteners. We supply full replacement kits and individual components to match OEM form-fit-function for standard single seals used in process, water, HVAC and light chemical applications.
Key Components
Rotary Face (Rotating Ring)
Precision-lapped face that rotates with the shaft. Typical materials: carbon (graphite), silicon carbide (RBSiC), tungsten carbide. Selection depends on pressure, speed and fluid abrasiveness.
Stationary Seat (Mating Ring)
Hardened seat that remains stationary; normally ceramic, silicon carbide, or tungsten carbide. Proper matching of rotary and stationary faces controls leakage and wear.
Spring / Bellows
Provides axial load to keep the faces in contact. Options: single coil spring, multiple coil springs, or elastomer/metal bellows (for automatic compensation and dry-running protection).
Secondary Seals (O-rings / V-rings / PTFE)
Seal between metal parts and shaft/gland. Materials: NBR, EPDM, FKM (Viton®), FFKM (Kalrez®), PTFE components for aggressive chemicals.

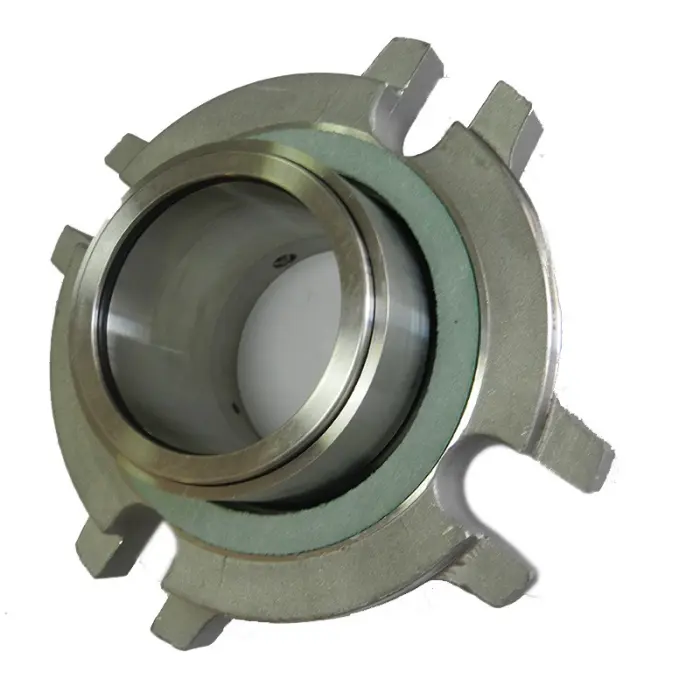

Gland Plate, Sleeve & Fasteners
Gland holds the stationary seat and provides mounting. Shaft sleeves available for worn shafts or sleeve-mounted seal designs.
Materials & Performance (E-E-T-A)
Experience & Expertise: Our engineering selection follows proven industry criteria — match face hardness, thermal conductivity and chemical compatibility to minimize face wear and extend MTBR (mean time between repairs).
Authoritativeness: Component choices and test practices align with common industry references (standard single-seal data and OEM guidance).
Trustworthiness / Accuracy: Material temperature and chemical limits are provided for selection; always confirm with compatibility charts and service testing. For example, silicon carbide faces and metal bellows are used for higher-temperature services up to several hundred °C.
Actionability: Contact our engineering team with fluid data, temperature, pressure and shaft diameter to receive a recommended parts kit and installation checklist.
Typical Operating Ranges & Technical Highlights
-
Common shaft sizes covered: Metric and imperial — typical stocked ranges begin at 8 mm up to 70–150 mm depending on design; many OEMs supply 8–75 mm as common pump sizes.
-
Pressure: General-purpose elastomer bellows / single spring seals commonly used up to ~10 bar (≈150 psi); heavy-duty single seals (specific face geometry, hard faces) can be applied at higher differential pressures — dynamic ratings vary by design (examples: 41 bar dynamic for certain 76 mm seals at given rpm/conditions). Always verify with seal selection data.
-
Temperature: Elastomer secondary seals commonly operate between roughly -30°C to +150°C (varies by elastomer); fluorocarbon (FKM) and FFKM have higher ranges; silicon-carbide/tungsten-carbide faces perform reliably to hundreds of °C in specialized designs.
-
Speed: Typical pump applications up to 3,600 RPM for common sizes; high speed or high surface velocity applications require hardened faces and specific lubrication/flush plans.
Applications
-
Centrifugal pumps (water treatment, chemical dosing, HVAC)
-
Process pumps in petrochemical and chemical plants (with appropriate face and secondary seal selection)
-
Industrial mixers and agitators
-
OEM spare parts supply and aftermarket repair shops
Technical Specifications
Note: final selection depends on specific pump model, service fluid, temperature, pressure and shaft condition. The table below lists typical ranges used for specifying parts.
| Parameter | Typical Value / Range |
|---|---|
| Shaft diameter (metric) | 8 mm – 150 mm (common stocked 8–75 mm). |
| Dynamic pressure (typical general-purpose) | ≤ 10 bar for standard elastomer bellows/single-spring seals; specialized single seals up to 20–40 bar depending on face materials and design. |
| Temperature (elastomer-based) | -30°C to +150°C (NBR/EPDM standard ranges), FKM up to ~+200–260°C, FFKM up to ~+300°C (material dependent). |
| Face materials | Carbon (graphite), Silicon Carbide (RBSiC), Tungsten Carbide, Ceramic. |
| Max rotational speed | Typical 3,600 RPM for pump seals; depends on face material and size. |
(These are representative selection targets; please provide the exact pump model or shaft dimensions for an exact parts match.)
Common Sizes & Ordering Guide
We stock and supply standard replacement components and full kits for common pump shaft diameters. Common stocked shaft diameters (metric): 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40, 45, 50, 65, 75. For larger diameters (≥ 80 mm), select engineered single seals or sleeve-mounted designs.
Common product aliases / keywords included for buyer matching: single spring seal parts, single-face seal kit, single mechanical seal replacement parts, pump seal spare parts, single seal components, rotating seal parts.
Product Advantages
-
Direct OEM form-fit parts and universal replacements — fast interchangeability for common pump models.
-
Wide material options — carbon, SiC, WC, ceramics, plus elastomer choices to match chemical compatibility.
-
Kitted for quick maintenance — each kit contains all wear components to minimize downtime (rotary, stationary, spring/bellows, O-rings, hardware).
-
Technical support — application review (fluid, temp, pressure, rpm) for correct face pairing and secondary seal selection.
-
Quality control — lapped faces, concentricity checks and material traceability for critical components.
Material Comparison
| Feature | Carbon (Graphite) | Silicon Carbide (SiC) | Tungsten Carbide (WC) |
|---|---|---|---|
| Best for | General service, forgiving to abrasion | High pressure, abrasive, high temp | Very hard, for abrasive/corrosive wear |
| Temperature capability | Moderate | High (up to ~400°C in specialized designs). | High |
| Typical use | Water, light chemicals | Petrochemical, abrasive slurries | Slurries, abrasive services |
| Cost | Low | Medium–High | High |
FAQ
Q1: What info do you need to send a correct replacement parts quote?
A: Provide pump make/model, shaft diameter, fluid name and concentration, operating temperature, operating pressure, rotational speed (RPM), and any observed leakage or failure symptoms.
Q2: Do you sell individual components or only full kits?
A: Both — we sell individual parts (rotary ring, stationary seat, springs, O-rings) and complete kits for faster maintenance. Kits ensure all wear parts are replaced at once.
Q3: Can your seals handle abrasive fluids or solids?
A: Use hardface combinations (SiC vs SiC or WC) and specific hardware; we recommend flush plans and improved filtration. For abrasive slurries, hardened faces and protective sleeves are standard.
Q4: What tolerance on shaft diameter is acceptable?
A: Typical tolerance is H7/h6 fits depending on sleeve use; send shaft measurement to verify. Sleeve-mounted designs available for worn shafts.
Q5: Do you provide material certificates or test documentation?
A: Yes — material traceability and test reports can be supplied on request for batch orders; contact sales for documentation options.
Product Catalog & Downloads
I created a concise downloadable product catalog/spec sheet for common single mechanical seal parts and kits. It includes typical SKU lines, component lists, nominal shaft ranges, pressure and temperature guidance for ordering.
Ordering & Contact
To request a quote, provide the pump model and service details (shaft diameter, fluid, temp, pressure, rpm). We will respond with recommended kit (OEM cross or our part number), price and lead time.
