Executive Summary

Graphite packings are tailored for high-temperature and steam services where gas-tightness, low friction and thermal resilience are needed. This page consolidates selection criteria, technical specifications, installation best practices, downloadable datasheets and troubleshooting for procurement, engineering and maintenance teams.

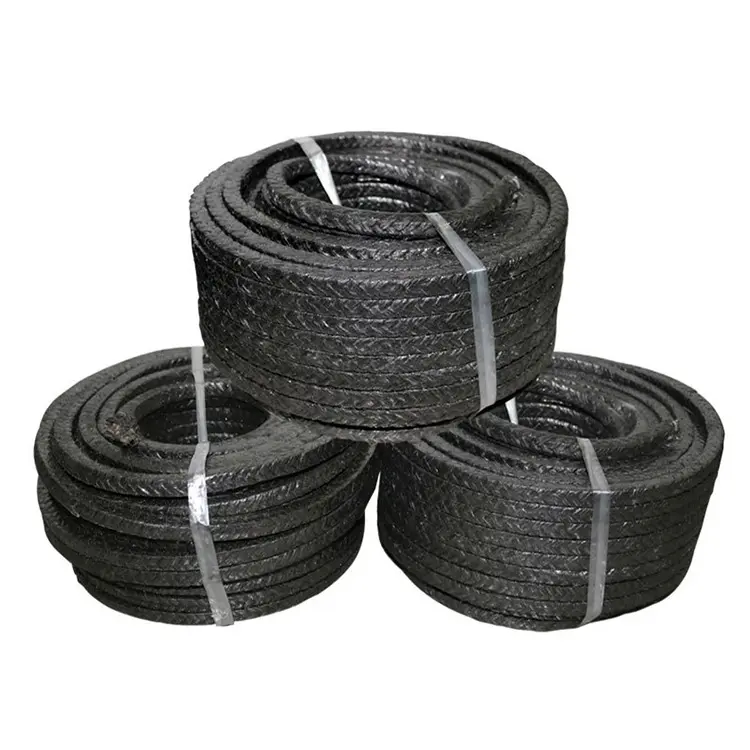

What is Graphite Packing?

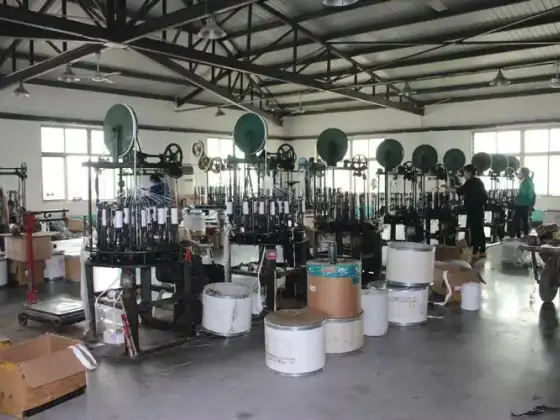

Graphite packing is made from expanded (exfoliated) graphite yarns or braided flexible graphite. It can be:
  • Flexible graphite braid — soft, conformable and low permeability
  • Graphite impregnated with lubricants or binders for improved handling
  • Graphite with metal/aramid reinforcement or braided over core for anti-extrusion
Key benefits: wide temperature capability, excellent chemical compatibility in many services, and low permeation for vapor-tight seals. Considerations include oxidation sensitivity at very high temperatures and handling precautions for fibrous dust.

Types & Construction

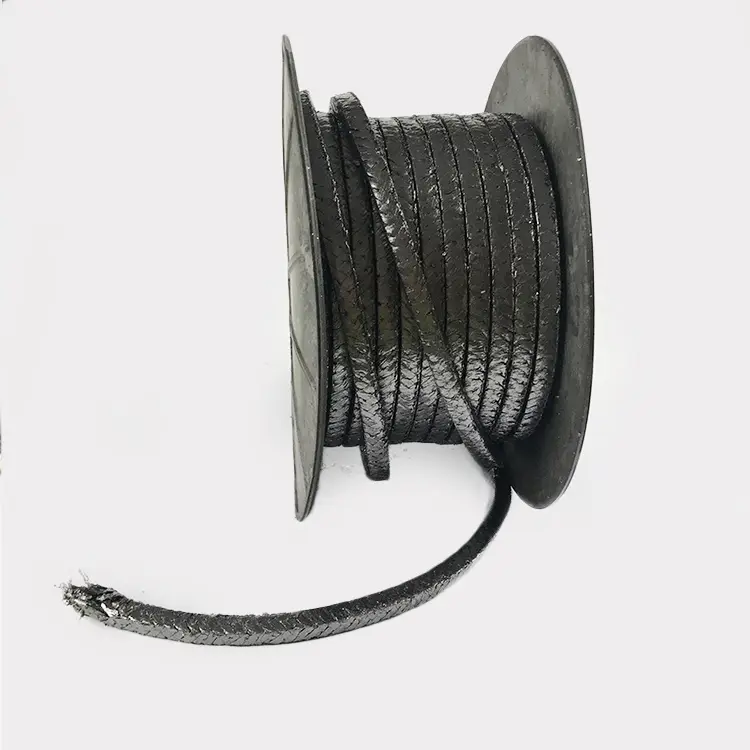

Flexible Graphite Braid

Pure graphite braid available in multiple cross-sections; ideal for steam and high-temp valves where conformity and low permeability are needed.

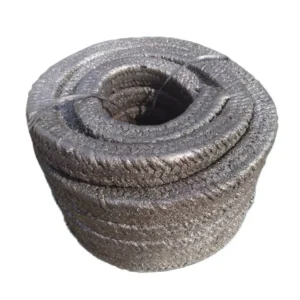

Impregnated / Coated Graphite

Graphite braided then impregnated with PTFE, resin or lubricants to improve handling, reduce friction and limit oxidation.

Reinforced / Composite

Graphite with aramid/metal reinforcements or stainless-steel wire cores for anti-extrusion in high-pressure or reciprocating services.

Selection Guide — How to Choose Graphite Packing

  1. Service temperature & atmosphere: graphite is excellent for high temperature and steam but oxidizes in hot oxygen-rich atmospheres — consider coatings or metal-faced options for oxidative services.
  2. Motion type: select braided graphite with core/reinforcement for reciprocating shafts; pure flexible graphite is suitable for low-speed rotating shafts and valves.
  3. Pressure & extrusion risk: use anti-extrusion rings or reinforced constructions for high-pressure glands.
  4. Chemical compatibility: graphite is compatible with many chemicals; verify specific corrosive media with supplier data.
  5. Shaft finish & hardness: maintain recommended shaft/sleeve finish and hardness to minimize wear and extend packing life.
  6. Safety & handling: implement dust control and PPE during cutting; use impregnated grades if handling dust is a concern.

Practical tip: for steam service prefer stainless-steel-reinforced graphite or graphite with PTFE impregnation if oxidation or blowout resistance is a concern.

Technical Parameters & Common Specifications

Example reference values
Type Temp Range (°C) Max Pressure (bar) Typical Cross-section (mm) Key Advantages
Flexible graphite braid (unfaced) -200 → +450 ≤ 120 3 × 3, 4 × 4, 6 × 6 High conformability, low permeability
PTFE-impregnated graphite -200 → +400 ≤ 150 4 × 4, 6 × 6 Lower friction, improved handling
Reinforced graphite (aramid/SS core) -200 → +450 ≤ 250 4 × 4, 6 × 6 Anti-extrusion, higher pressure capability
Graphite braided over metal core -200 → +500 (with alloy core) ≤ 300+ Custom High-duty, severe steam lines

Standard Packaging & Lengths

Form Std Length Pack
Braid spools 10 m / 25 m / 50 m Spools / boxed
Pre-formed rings Single ring per pack Blister / carton
Cut-to-length kits Per gland set Kit with instructions

Datasheets & Technical Documents

Download flexible graphite datasheets, oxidation & high-temp guides and installation templates.

Installation, Gland Adjustment & Best Practices

  1. Prepare stuffing box: remove old packing, inspect shaft & sleeve, clean contaminants.
  2. Cutting & handling: cut braid with minimal dust; use impregnated braid where dust control is needed. Employ PPE and vacuum extraction if dry cutting.
  3. Ring installation: install rings with staggered joints (heel-to-toe) and ensure snug fit without over-compression.
  4. Gland tightening: tighten incrementally—initial light compression, run-in at low speed/pressure, then set final compression to target leakage rate.
  5. Anti-extrusion: use inner/outer rings or reinforced constructions for high-pressure glands.
  6. Inspection & retorque: inspect after initial thermal cycles and retorque if manufacturer recommends.
Recommended installation workflow — use vacuum or wet cutting methods to reduce dust and ensure safety.

Application Industries & Case Studies

  • Power generation — steam valves, turbine glands
  • Petrochemical & refining — high-temperature process lines
  • Oil & gas — heater treater and atmospheric vents
  • Marine & offshore — high-temp exhaust and heater systems
  • Chemical processing — reactors and hot-line valves

Case Study — Steam Valve Packing Upgrade

Problem: Frequent leakage and short packing life on high-temp steam valves. Solution: Replaced generic packing with PTFE-impregnated graphite braid with stainless-steel inner ring and upgraded gland run-in procedure. Result: Leak rate reduced to near-zero, service interval extended and energy losses decreased.

Performance Matrix & Material Comparison

Property Plain Graphite PTFE-Impregnated Reinforced (Aramid/SS) PTFE Packing
Max temp Up to 450°C Up to 400°C Up to 500°C (core dep.) Up to 260°C
Chemical compatibility Good Very Good Good Excellent
Gas permeability Low Lower Lowest Low
Running torque Low Lower Moderate Very Low
Extrusion resistance Moderate Moderate High Low-Moderate

Common Failures & Troubleshooting

Oxidation / weight loss at high temp
Cause: Graphite oxidation in oxygen-rich high-temp environments. Action: Use metallic-faced graphite or inerting strategies; consider PTFE-impregnated grades for reduced oxidation.
Filler extrusion under pressure
Cause: Low confinement or thin packing with high pressure. Action: Add anti-extrusion rings or switch to reinforced constructions.
Excessive dust during cutting
Cause: Dry cutting of graphite braid. Action: Use wet cutting or vacuum extraction, use impregnated grades and PPE to control dust exposure.
Leak after thermal cycling
Cause: Loss of seating stress or improper run-in. Action: re-torque after thermal cycle, review packing turns/thickness and consider higher density or reinforced packings.

FAQ — For Procurement / Engineering / Maintenance

Q: Can graphite packing be used in steam service?A: Yes — graphite excels in steam and high-temperature services; use reinforced or faced versions where oxidation or high-pressure extrusion risk exists.
Q: How to minimize graphite dust during installation?A: Use PTFE-impregnated graphite, wet cutting methods, vacuum extraction and PPE. Consider pre-formed rings to avoid onsite cutting.
Q: What info speeds up a quote?A: Provide shaft diameter, motion type (rotating/reciprocating), rpm or m/s, pressure, temperature, media composition and gland depth or packing cross-section.

Need assistance specifying graphite packing?

Contact our technical team for grade selection, oxidation data, sample kits and onsite support.
