Executive Summary

Beater sheets and paper-based gasket materials are economical, versatile sealing products manufactured from beaten cellulose/fiber blends and then finished by impregnation (e.g., phenolic, resin, NBR) or lamination. They are commonly used in low-to-medium pressure flanges, electrical insulation, cushioning pads, and as interleaving liners. This page compiles selection guidance, typical specifications, handling and processing notes, downloadable technical documents, installation tips and troubleshooting to help procurement, engineering and maintenance teams choose the right beater sheet solution.

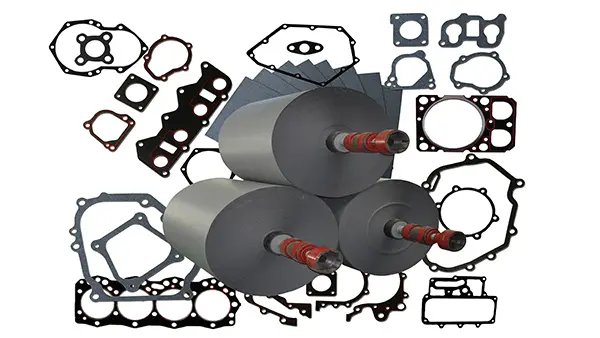

What is a Beater Sheet / Paper?

A beater sheet is typically produced by the papermaking/beating process: cellulosic fibers are refined (beaten) to increase bonding, then formed into sheets and dried. For sealing use these sheets may be:
  • Impregnated with phenolic or other resins for improved strength and oil resistance (phenolic-impregnated paper).
  • Bonded with elastomers (NBR, SBR) for improved sealing and resilience.
  • Laminated or reinforced with fabric/foil to increase tensile strength and reduce permeation.
Strengths: low cost, good compressibility for small bolt loads, excellent electrical insulation and easy die-cutting. Limitations: lower chemical and temperature resistance than PTFE, graphite or metallic gaskets — choose for compatible services.

Classification — By Base Fiber, Impregnation & Application

By Base Fiber

  • Cellulose kraft beater paper
  • Wood pulp blended with synthetic fibers (for strength)
  • Specialty cellulose (high wet strength grades)

By Finishing / Impregnation

  • Phenolic-impregnated beater sheet (improved oil & heat resistance)
  • NBR/Elastomer-impregnated (better sealing / flexibility)
  • PTFE or polymer-coated paper (improved chemical resistance)
  • Fabric-reinforced or foil-faced variants

By Typical Use

  • Low-to-medium pressure flange gaskets
  • Electrical insulation boards and terminal pads
  • Valve cover & pump gasket sheets
  • Vibration damping liners and cushioning

Selection Guide — How to Choose the Right Beater Sheet

  1. Define service media: water, oil, steam, mild chemicals — paper-based sheets suit neutral or mildly aggressive media; use impregnated or coated variants for oils and solvents.
  2. Temperature & pressure: verify operating T & P. Typical phenolic-impregnated paper can handle moderate temperatures (consult datasheet); avoid for high-temp steam above recommended limits.
  3. Thickness & bolt load: choose thickness to achieve recommended seating stress — paper is compressible so thinner sheets suit higher bolt loads.
  4. Edge & face finish: for coarse flange faces consider foil-faced or adhesive-backed variants to improve sealing.
  5. Regulatory / hygiene: for potable or food contact choose certified materials or use alternative PTFE/special grades.

Application tip: for oil-lubricated systems use phenolic-impregnated or polymer-coated beater sheets; for electrical insulation use specially processed high-dielectric-grade papers.

Technical Parameters & Typical Dimensions

Below are typical reference values.
Type Temp Range (°C) Max Pressure (bar) Typical Thickness (mm) Key Features
Unimpregnated cellulose paper -20 to 100 ≤ 10 0.5 / 1.0 / 1.5 Low cost, good compressibility, electrical insulation
Phenolic-impregnated beater sheet -20 to 150 ≤ 25 0.5 / 1.0 / 2.0 Improved oil & heat resistance, higher strength
NBR-impregnated paper -30 to 120 ≤ 20 0.5 / 1.0 / 1.5 Better sealing, improved elasticity & low leak
Polymer-coated / PTFE-faced paper -200 to 150 (face dependent) ≤ 40 0.5 / 1.0 Enhanced chemical resistance and lower permeation

Standard Sheet Sizes & Packaging

Sheet Size (mm) Thickness Options (mm) Typical Pack
1000 × 1000 0.5, 1.0, 1.5 Carton / pallet
1500 × 1500 1.0, 2.0 Wood pallet
2000 × 1000 1.5, 3.0 Bulk crates

Product Data & Technical Documents

Download datasheets, resin-impregnation specifications, cutting templates and compatibility charts.

Cutting, Impregnation & Handling Recommendations

  1. Cutting: die-cutting or CNC waterjet produce clean edges for gaskets; for thin papers rotary cutters or guillotine shears may suffice.
  2. Impregnation & curing: phenolic or elastomer impregnation should be fully cured per supplier instructions to achieve expected chemical and thermal resistance.
  3. Edge finishing: seal cut edges when required (coating or edge-welding of polymer-faced sheets) to reduce permeation and fraying.
  4. Storage: store flat in dry, temperature-controlled environment; avoid moisture uptake for unimpregnated papers.
  5. Handling: use gloves to avoid oil contamination on sealing surfaces; avoid folding or creasing impregnated sheets.

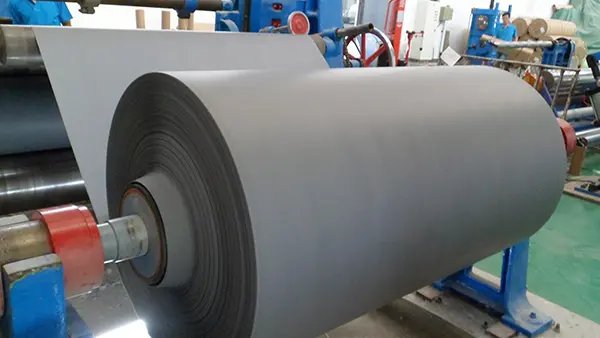

beater sheet paper
Typical workflow: produce beater paper → impregnate (optional) → cure → cut → inspect → install.

Application Industries & Case Studies

  • General industrial piping (low-to-medium pressure)
  • Automotive components (gasket liners, insulation)
  • Electrical & electronics (insulation boards, terminal pads)
  • Pumps & valves (non-critical services)
  • Appliances & HVAC (cushioning, sealing)

Case Study — Valve Cover Gaskets for HVAC Unit

Problem: Frequent minor leaks on low-pressure HVAC valves using generic gaskets. Solution: Switched to phenolic-impregnated beater sheet die-cut gaskets sized for correct seating stress and added foil-faced variant for coarse flange. Result: Immediate reduction in seepage reports and lower material cost vs premium PTFE gaskets.

Performance Comparison & Material Selection Matrix

Property Unimpregnated Paper Phenolic-Impregnated NBR-Impregnated PTFE-faced Paper
Chemical resistance Poor Moderate Good (oils) Good-Excellent
Temperature tolerance Low Moderate Moderate Wide (face dependent)
Compressibility High Medium Medium-High Medium
Suitable pressure Low Low-Mid Low-Mid Mid
Die-cut & handling Easy Good Good Good (depends on facing)

Common Failures & Troubleshooting

Rapid swelling / softening
Cause: Exposure to incompatible solvents or prolonged immersion. Action: Replace with chemically compatible impregnated or faced variant (e.g., PTFE-faced).
Edge fraying or delamination
Cause: Poor cutting method or insufficient impregnation. Action: Use precision die-cutting and apply edge sealing where required.
Leakage under pressure
Cause: Incorrect thickness or insufficient bolt load. Action: Re-evaluate seating stress and select thicker or stiffer impregnated grade; consider faced/laminate variant for higher pressure.
Moisture uptake and swelling
Cause: Unimpregnated paper used in humid/wet service. Action: Use phenolic-impregnated or polymer-coated grade and ensure correct storage prior to installation.

FAQ — For Purchasing / Engineering / Maintenance

Q: Are beater sheets suitable for steam service?A: Standard unimpregnated paper is not recommended. Phenolic-impregnated or specially formulated grades may handle low-to-moderate steam temperatures — check supplier datasheet for limits.
Q: Can beater paper be used for food-contact gaskets?A: Typically no unless specifically manufactured and approved for food contact. For food applications, use certified PTFE, silicone or approved elastomeric materials.
Q: What info is needed for a fast quote?A: Provide sheet type (impregnated / coated / faced), thickness, sheet size or gasket drawing, operating temperature & pressure, media description and required approvals.
Need a cost-effective sheet for low-to-mid pressure sealing?
Contact our technical team for sample cuts, impregnation options and die-cutting services.
Beater Sheet Paper Technical Data Sheet (PDF) Request quote Contact technical team
