Carbon Fiber Packing — High Strength, Low Wear Sealing for Demanding Services
What / Why — Carbon fiber & carbon-based packings combine high tensile strength, excellent abrasion resistance and good thermal stability. They are used where extended service life, resistance to solids abrasion and low elongation are priorities. This page helps procurement, engineers and maintenance teams choose, install and maintain carbon/graphite-based gland packing for pumps, valves and rotating equipment.
Executive Summary
Carbon fiber and carbon-composite packings offer long wear life and dimensional stability in abrasive and high-load services. They are often used as braided ropes, formed rings or as reinforcement layers in hybrid packings. Use them where abrasion, mechanical load or dimensional stability limit the performance of conventional packings.Note: always validate material compatibility with your media and operating conditions — the tables below are reference examples and should be replaced with product datasheets for publication.
What is Carbon Fiber / Carbon-Graphite Packing?
Carbon fiber packing refers to packing cords, braids or formed rings that use carbon fibers, carbon yarns, or carbon/graphite mixtures as the sealing element or as reinforcement. They may be pure carbon braid, carbon-impregnated yarns, or carbon combined with PTFE, graphite, aramid or metal reinforcements to tailor friction, wear and thermal behaviour. Typical advantages include high abrasion resistance, good compressive strength, electrical conductivity (antistatic variants), and stability under cyclic loading. Limitations can include chemical compatibility issues (strong oxidizers) and higher relative cost versus general-purpose packings.-

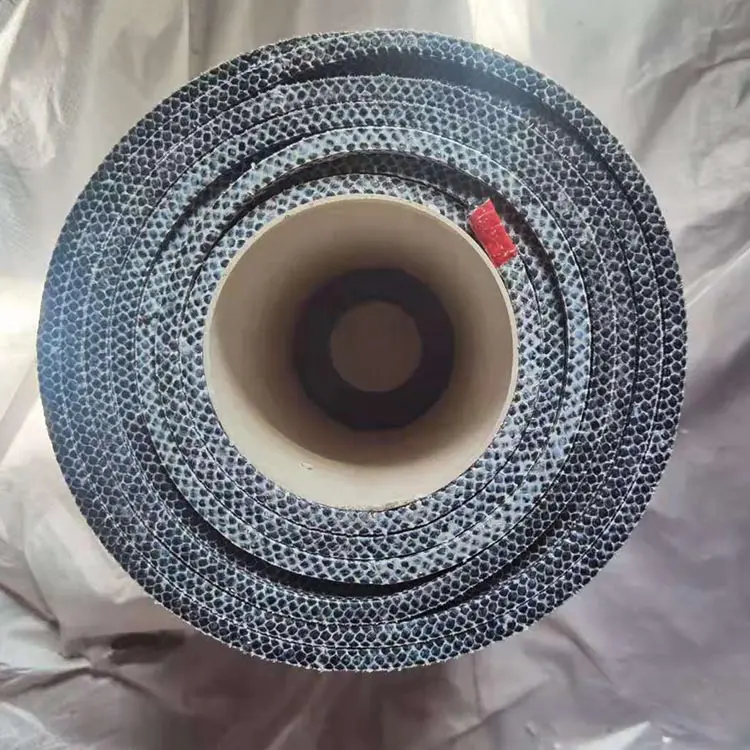

Carbon Fiber PackingCarbon Fiber Packing Rope

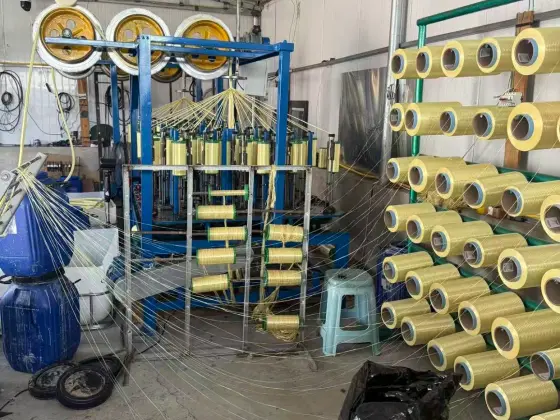

Types & Construction
Pure Carbon / Carbon Yarn Braid
High-strength carbon yarns braided into square-section packings for abrasion-prone shafts and heavy-duty applications.Carbon / Graphite Hybrid
Carbon fibers combined with flexible graphite or graphite fillers to balance abrasion resistance with compressibility and sealing ability.Composite Packings
Carbon core or carbon-reinforced packing with PTFE or aramid overbraid — designed for dynamic sealing with improved chemical tolerance and lower friction.Selection Guide — How to Choose Carbon Fiber Packing
- Service abrasives: if the fluid contains solids or abrasive particles prioritize carbon/bronze-interlayer packings for wear resistance.
- Motion & speed: for reciprocating shafts carbon braid resists abrasion; for high-speed rotating shafts choose low-friction composite variants or lubricated cores.
- Temperature & pressure: carbon/graphite variants handle wide temperature ranges but verify oxidation limits in oxygen-rich environments.
- Electrical considerations: carbon-based packings are conductive—use antistatic properties when required for electrical safety in rotating machinery.
- Anti-extrusion: where gland clearance is large or pressure is high, use carbon packings with metallic or PTFE anti-extrusion rings.
- Economics & life-cycle: higher initial material cost can be offset by longer service life and reduced downtime in abrasive services.
Quick tip: provide solids loading, particle size distribution (if slurry), shaft speed and gland depth when requesting a quote — these parameters critically affect packing selection.
Technical Parameters & Typical Sizes
Reference values| Type | Temp Range (°C) | Max Pressure (bar) | Typical Cross-section (mm) | Key Strengths |
|---|---|---|---|---|
| Pure carbon braid | -50 → +350 | ≤ 120 | 3 × 3, 4 × 4, 6 × 6 | Very high abrasion resistance, strength |
| Carbon + graphite hybrid | -200 → +450 | ≤ 160 | 4 × 4, 6 × 6 | Balance of sealing and wear resistance |
| Carbon core with PTFE overbraid | -200 → +260 | ≤ 100 | 4 × 4, 6 × 6, custom | Improved chemical resistance & low friction |
| Carbon + bronze interlayer | -50 → +300 | ≤ 200 | Custom | Abrasion resistance + conductivity & anti-static |
Packaging & Standard Lengths
| Form | Std Length | Pack |
|---|---|---|

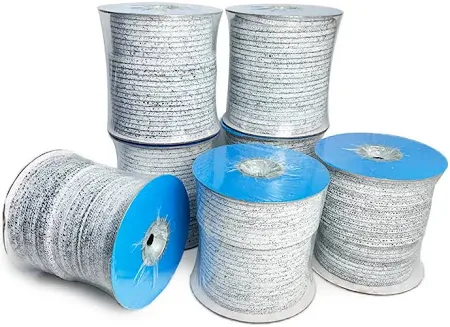

| Braid spools | 10 m / 25 m / 50 m | Spools / boxed |
| Pre-formed rings | Single ring per pack | Blister / carton |
| Cut-to-length kits | Per gland set | Kit with instructions |
Datasheets & Technical Documents
Download carbon fiber packing catalogues, slurry wear reports and gland installation guides.Installation, Gland Adjustment & Best Practices
- Inspect shaft & sleeve: verify surface finish and hardness; repair or fit sleeve if worn.
- Cut rings precisely: square butt joints, stagger joints across rings to prevent leakage paths.
- Number of rings: typically 3–4 rings depending on gland depth—ensure adequate fill without over-compression.
- Gland tightening: initial light compression, run-in at low speed and pressure, then gradually set final compression to minimize wear and control leakage.
- Anti-extrusion: use inner/outer rings or metal-backed rings in high-pressure or large clearance glands.
- Monitoring: inspect packing after run-in, schedule periodic checks for wear, electrical continuity (if antistatic function required) and leakage.
Application Industries & Case Studies
- Mining & mineral processing — slurry pumps and cyclones
- Pulp & paper — stock pumps and pulp handling equipment
- Chemical processing — abrasive slurries and high-load seals
- Power generation — coal handling and ash slurry pumps
- Desalination & water treatment — abrasive seawater and sand-laden flows
Performance Matrix & Material Comparison
| Property | Carbon Braid | Carbon+PTFE | Carbon+Bronze | Aramid / Kevlar |
|---|---|---|---|---|
| Abrasion resistance | Very High | High | Very High | High |
| Running torque | Moderate | Low | Moderate | Moderate |
| Chemical resistance | Good (check oxidizers) | Very Good | Good | Good with PTFE impregnation |
| Temperature capability | Up to ~350°C | Up to ~260°C | Up to ~300°C | Up to ~240°C |
| Electrical conductivity | Conductive (antistatic) | Depends on overbraid | Conductive | Insulative unless treated |
Common Failures & Troubleshooting
- Rapid wear in slurry service
- Cause: Incorrect packing type or inadequate gland run-in. Action: Use carbon+bronze interlayer or thicker braid; check shaft finish and add flush where possible.
- High running torque
- Cause: Over-tightening or non-lubricated braid. Action: Loosen gland, perform run-in, consider carbon+PTFE overbraid to reduce friction.
- Oxidative degradation at high temp
- Cause: Oxygen-rich atmospheres at elevated temperatures. Action: Use protective overbraids or select graphite variants with oxidation-resistant coatings; avoid pure carbon in highly oxidative high-temp contexts.
- Electrical continuity lost (for antistatic requirement)
- Cause: Overbraid non-conductive material or corrosion. Action: Specify conductive interlayer or bronze/carbon mix and verify continuity periodically.
