Executive Summary

PTFE packing is a low-torque, chemically resistant gland packing solution used across many rotating and reciprocating equipment types. Available in pure PTFE, filled PTFE (graphite, carbon, bronze), and composite constructions, PTFE packing minimizes shaft wear and contamination risk while delivering long sealing life when installed and adjusted correctly.

What is PTFE Packing?

PTFE packing consists of braided, twisted or formed yarns made from polytetrafluoroethylene (PTFE). It can be manufactured as:
  • Virgin PTFE braid (very inert, low friction)
  • Filled PTFE (graphite, carbon, bronze, molybdenum disulfide) — reduces cold flow and improves thermal/conductive properties
  • Multi-part composite packings with reinforcement or anti-extrusion cores
PTFE packing is suitable for aggressive chemicals, ultra-pure media, and where low friction or FDA-type compliance is required. For dynamic sealing (rotating shafts), filled PTFE often performs better due to reduced cold flow.

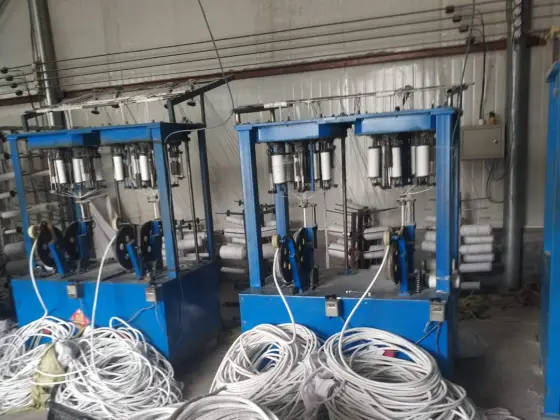

Types & Construction — Braids, Fillers & Composite Designs

Braid / Construction

  • 8-braid or 12-braid square braid — common for gland packing rings
  • Plaited overbraid — improved sealing tightness
  • Solid rope / formed rings — for large-diameter shafts and custom stuffing boxes

Fillers & Enhancements

  • Graphite-filled PTFE — improved thermal conductivity & low friction
  • Carbon-filled PTFE — enhanced wear resistance
  • Bronze-filled PTFE — better thermal conduction & anti-static properties
  • Lubricated PTFE — lower running torque for dynamic shafts

Composite Packings

  • PTFE over an aramid or synthetic core — reduces extrusion and improves handling
  • PTFE with graphite core for high-temperature reciprocating service
  • PTFE with stainless-steel wire insert for anti-extrusion in high-pressure valves

Selection Guide — How to Choose PTFE Packing

  1. Service media: PTFE is broadly chemically resistant — virgin PTFE for ultra-pure/food; filled types for abrasive or high-temp media.
  2. Shaft speed & motion: for rotating shafts choose low-friction, lubricated or carbon/graphite-filled PTFE; for reciprocating shafts prefer low-friction composites with good recovery.
  3. Temperature & pressure: verify packing temperature limits (typically up to ~260°C for PTFE); filled grades may handle thermal spikes better.
  4. Shaft diameter & gland clearance: use correct cross-section (square braid) and allow recommended clearance to avoid binding or extrusion.
  5. Abrasion & solids: for solids-laden fluids use bronze-filled or carbon-filled PTFE to resist wear.
  6. Static vs dynamic: static valves may accept virgin PTFE; dynamic equipment usually requires filled or composite packings to reduce cold flow and leakage.

Quick tip: Always provide shaft speed (m/s or rpm), stroke length (if reciprocating), pressure, temperature and media when requesting a quote to ensure correct packing selection.

Technical Parameters & Typical Sizes

Reference values
Type Temp Range (°C) Max Pressure (bar) Typical Cross-section (mm) Key Strengths
Virgin PTFE braid -200 → +260 ≤ 40 3 × 3, 4 × 4, 5 × 5 (square braid) Highest chemical inertness, low friction
Graphite-filled PTFE -200 → +300 (short) ≤ 60 3 × 3, 4 × 4, 6 × 6 Improved thermal behavior & wear resistance
Bronze-filled PTFE -200 → +260 ≤ 80 4 × 4, 6 × 6 Good abrasion resistance & anti-static
Composite PTFE (core + PTFE) -100 → +260 ≤ 100 Custom formed rings Low extrusion, high sealing reliability

Standard Packing Lengths & Packaging

Type Std Length Pack

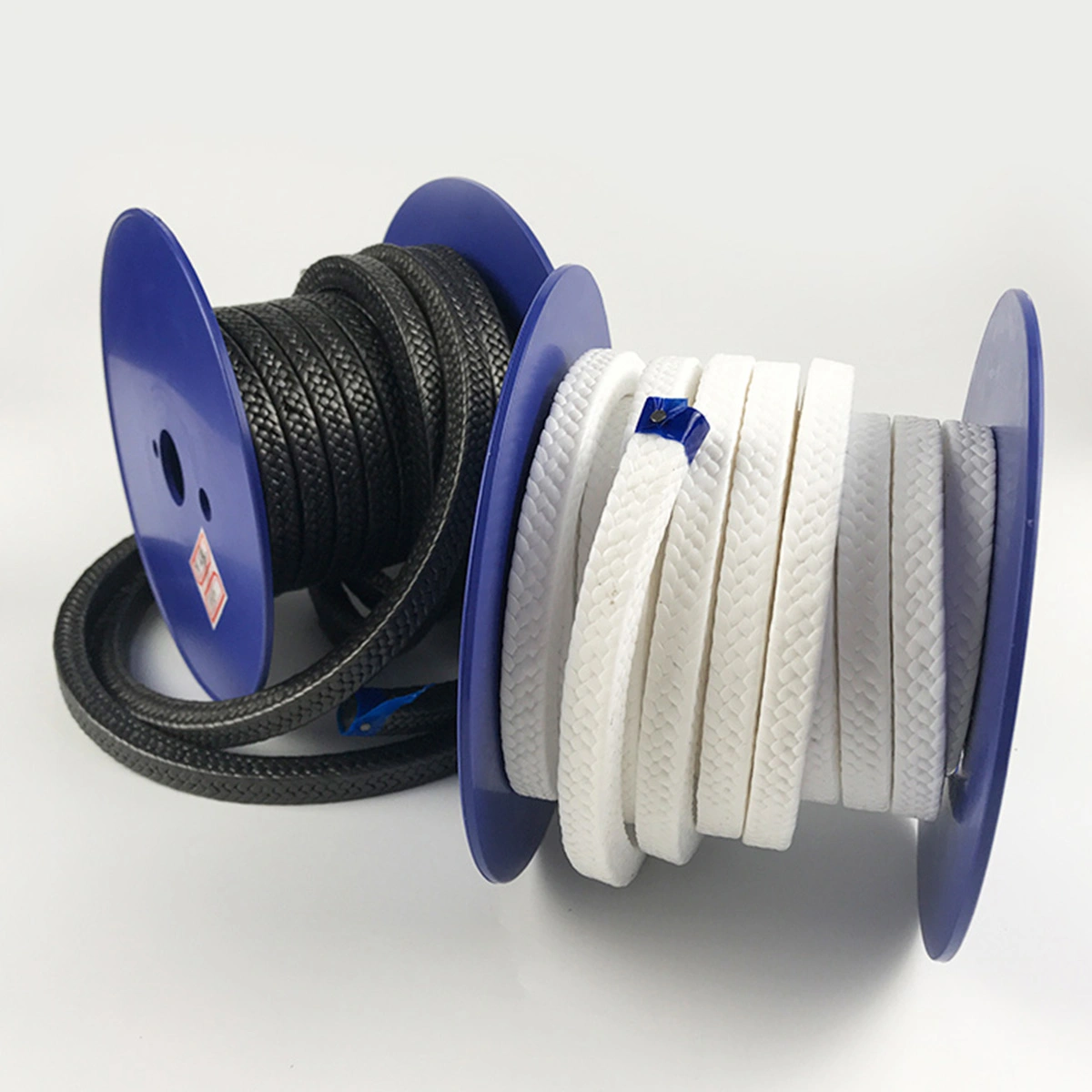

Braid spools 10 m / 25 m / 50 m Spools / boxed
Pre-formed rings Single ring per pack Blister / carton
Cut-to-length sets Per gland seal set Kit with instructions

Datasheets & Installation Guides

Download PTFE packing catalogues, gland installation guides and compatibility tables.

Installation, Gland Adjustment & Best Practices

  1. Prepare stuffing box: clean the box, remove old packing and inspect shaft/sleeve condition.
  2. Cut packing rings: cut square, heel-to-toe joints, stagger joint positions across rings to avoid leakage paths.
  3. Fill the box: install rings snugly without damaging shaft — typically 3–4 rings depending on gland depth; inner rings first.
  4. Gland follower & torque: tighten follower nuts evenly; for PTFE keep gland slightly loose initially, then run-in and progressively tighten to minimize friction and achieve target leakage stop.
  5. Run-in & final adjustment: operate at low speed/pressure to seat packing, then incrementally set gland to recommended gland load—avoid over-tightening which causes shaft wear.
  6. Lubrication / flush: for some services use gland lubrication or flush lines per manufacturer recommendations to remove heat and contaminants.

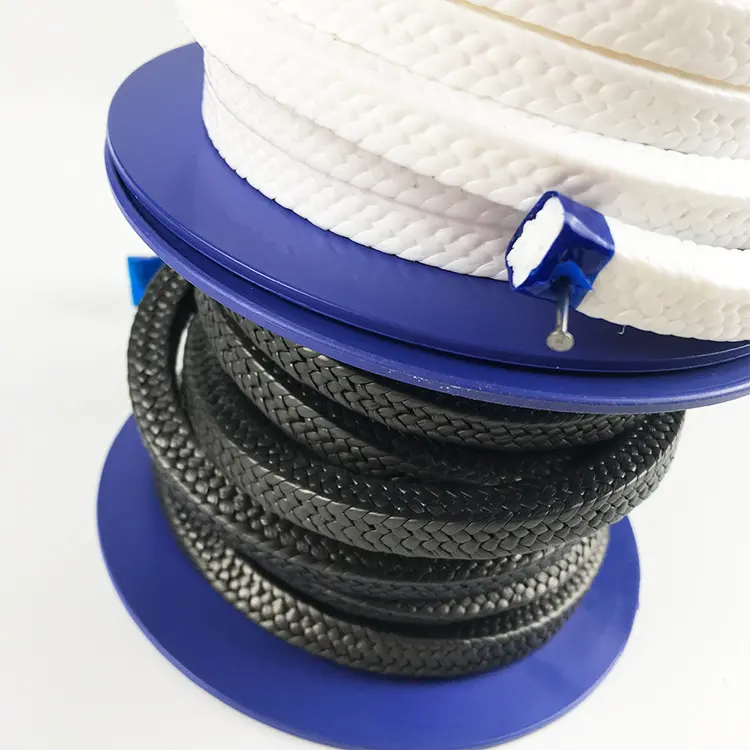

ptfe packing
Typical packing installation flow — cut, install rings, stagger joints, run-in, then adjust gland.

Application Industries & Case Studies

  • Chemical & petrochemical pumps and valves
  • Food & pharmaceutical processing (FDA-grade PTFE)
  • Power generation — feedwater pumps and control valves
  • Water & wastewater pumps with aggressive media
  • Marine and offshore rotating equipment

Case Study — Corrosive Pump Packing Upgrade

Problem: Frequent gland leakage and shaft wear on an acid transfer pump using inferior packing. Solution: Switched to bronze-filled PTFE braid and implemented correct ring-staggering and gland run-in procedure. Result: Leak rate reduced by 90% and packing life increased 6×; shaft wear minimized due to lower running torque.

Performance Comparison & Material Matrix

Property Virgin PTFE Graphite-Filled PTFE Bronze-Filled PTFE Aramid / Fiber Packing
Chemical resistance Excellent Excellent Very Good Good (not for strong acids)
Running torque Very low Low Moderate Moderate-High
Abrasion resistance Poor Improved Good Good
Temperature range -200 → +260°C -200 → +300°C -200 → +260°C -50 → +250°C
Suitability for dynamic shafts Limited (cold flow) Good Good Good for reciprocating

Common Failures & Troubleshooting

Excessive leakage after installation
Causes: Poorly cut rings, aligned joints, insufficient number of rings, or under-tightened gland. Actions: Remove and re-cut rings, stagger joints, install correct number of rings and follow run-in torque procedure.
High running torque & shaft wear
Causes: Over-tightened gland, abrasive solids or incompatible filler. Actions: Loosen gland, verify shaft finish, consider lubricated or filled PTFE with better abrasion resistance.
Short packing life in abrasive service
Causes: Solids in media abrade braid. Actions: Use bronze-filled PTFE or mechanical seals; install flushing/filtration to reduce solids.
Cold flow / extrusion under high pressure
Causes: Virgin PTFE in high-pressure dynamic service. Actions: Use filled or composite PTFE, add anti-extrusion rings or transition to mechanical seal if required.

FAQ — For Procurement / Engineering / Maintenance

Q: Can I use virgin PTFE packing on a high-speed pump?A: Not recommended for high-speed rotating shafts due to cold flow; choose a filled PTFE braid or composite packing designed for dynamic service.
Q: How many rings should I install in a stuffing box?A: Depends on gland depth; typically 3–4 rings for standard stuffing boxes. Ensure the total cross-section fills the box with correct compression allowance per manufacturer guidelines.
Q: What information is required for a fast quote?A: Provide shaft diameter, shaft speed (rpm or m/s), media composition, operating temperature & pressure, motion type (rotating/reciprocating), and desired packing length or gland depth.
