What / Why — Kevlar (aramid) packing delivers excellent tensile strength, low stretch and high wear resistance for demanding pump and valve sealing applications. Ideal for abrasive slurries, high-pressure pumps and reciprocating shafts, aramid packings combine durability with good compressibility and long service life.
Executive Summary
Kevlar and aramid-based packings offer an outstanding balance of mechanical strength, abrasion resistance and dimensional stability. They are frequently selected for slurry pumps, reciprocating compressors, and valves where long life and reduced maintenance are priorities. This page provides technical guidance, selection rules, installation best practices and downloadable documents for procurement, engineering and maintenance teams.What is Kevlar / Aramid Packing?
Kevlar (a trade name for an aramid fiber) is a high-strength synthetic aromatic polyamide known for exceptional tensile strength and abrasion resistance. In gland packing, aramid fibres are braided or formed into yarns then impregnated or lubricated with PTFE, graphite, or other fillers to improve sealing, reduce friction and enhance temperature tolerance. Typical advantages: high wear resistance, low elongation, good thermal stability, and excellent mechanical integrity in abrasive and high-pressure services.-

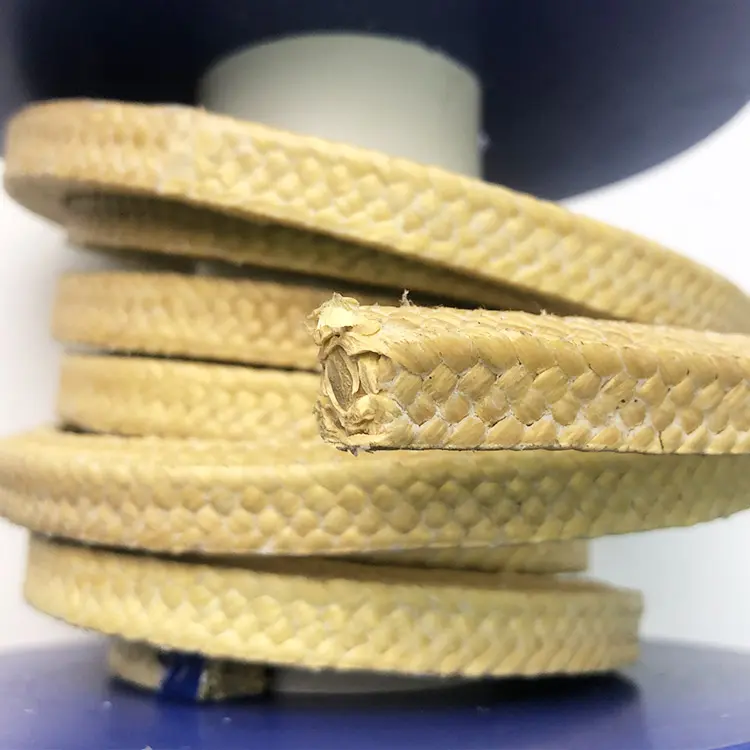

Kevlar Aramid PackingKevlar/Aramid Packing for Pumps and Valves
Types & Construction
By Construction

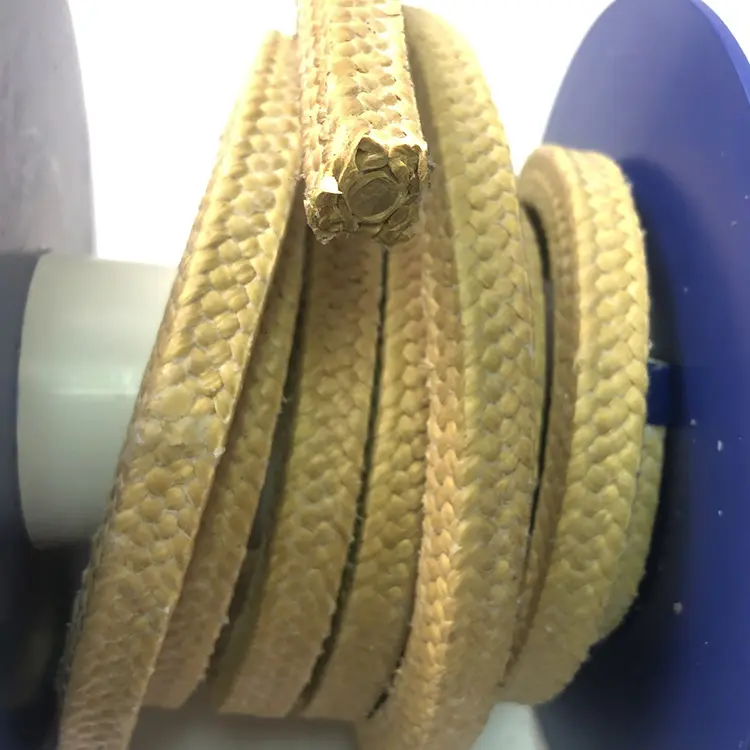

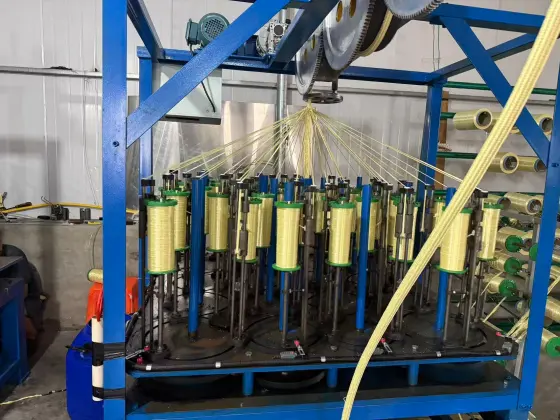

- Braided aramid yarn packing — common 8/12-braid constructions
- Plaited overbraid (aramid core with PTFE/graphite overbraid)
- Solid rope / formed rings — for large stuffing boxes
- Aramid core with PTFE or graphite impregnation — reduced friction & improved sealing
By Filler / Impregnation
- PTFE-impregnated aramid — low friction & chemical compatibility
- Graphite-impregnated aramid — high-temperature capability and lubrication
- Lubricant-filled (special greases) — reduces running torque
- Bronze or carbon interlayers — improved thermal conduction & anti-static
By Application Form
- Spool/braid for onsite cutting
- Pre-formed rings and kits
- Die-cut seal sets with backing rings
- Composite packing sets for valves and pumps
Selection Guide — How to Choose Kevlar / Aramid Packing
- Identify service media: aramid fibers resist abrasion but are not inherently chemically inert — select PTFE-impregnated or coated variants for aggressive chemistries.
- Motion type: for reciprocating shafts aramid excels due to low wear; for high-speed rotating shafts choose low-friction impregnated variants.
- Temperature & pressure: aramid packings typically operate up to ~250°C (dependent on impregnation). For sustained high temperatures check datasheet.
- Abrasion & solids: aramid is preferred where solids or slurry cause high abrasion — combine with bronze/graphite fillers for longevity.
- Shaft finish: proper shaft/sleeve surface finish reduces wear — recommend mirror or ground finishes as per pump OEM guidance.
- Anti-extrusion: use PTFE/metallic anti-extrusion rings or stainless wire core for high-pressure applications.
Practical tip: When converting from fiber-based packing to Kevlar, verify gland depth and provide correct number of rings (typically 3–4) and stagger joints to avoid leakage paths.
Technical Parameters & Typical Specifications
Reference values| Type | Temp Range (°C) | Max Pressure (bar) | Typical Cross-section (mm) | Key Strengths |
|---|---|---|---|---|
| Virgin aramid braid | -50 → +200 | ≤ 60 | 3 × 3, 4 × 4, 6 × 6 | Excellent abrasion resistance & tensile strength |
| PTFE-impregnated aramid | -200 → +240 | ≤ 80 | 4 × 4, 6 × 6 | Improved chemical compatibility & lower running torque |
| Graphite-impregnated aramid | -50 → +300 | ≤ 100 | 4 × 4, 6 × 6 | High-temp lubrication & improved leak control |
| Bronze-interlayer aramid | -50 → +220 | ≤ 120 | 4 × 4, 6 × 6 | Enhanced abrasion resistance & anti-static |
Standard Packing Lengths & Packaging
| Type | Std Length | Pack |
|---|---|---|

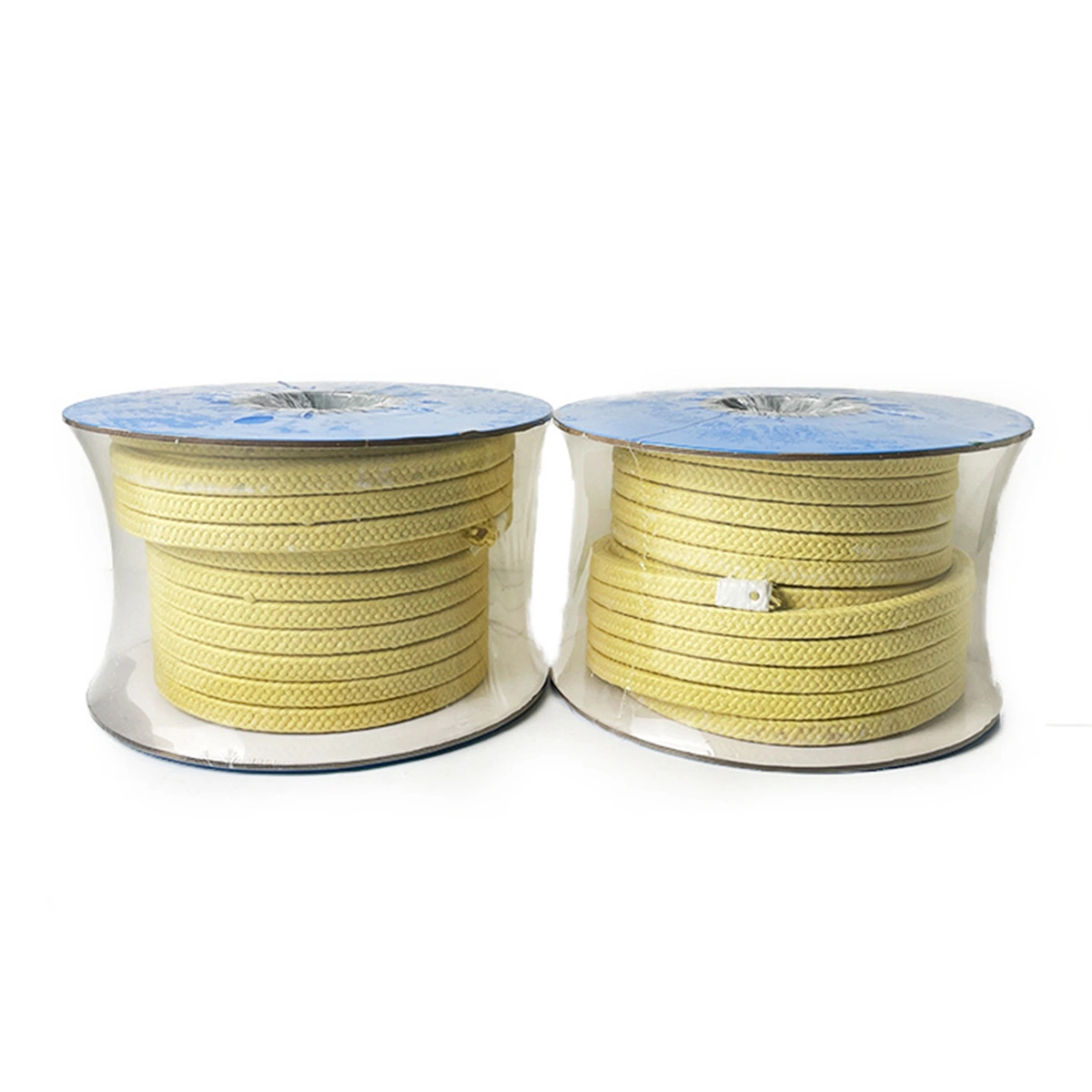

| Braids / spools | 10 m / 25 m / 50 m | Spools / boxed |
| Pre-formed rings | Single ring per pack | Blister / carton |
| Packing kits | Cut sets for gland depth | Kit with instructions |
Datasheets & Installation Guides
Download aramid packing catalogues, shaft finish recommendations and gland installation guides.Installation, Gland Adjustment & Best Practices
- Inspect shaft & sleeve: check for scoring, pitting or corrosion; re-machine or fit sleeve if necessary.
- Cutting rings: cut square with tight, butt joints; stagger joints when installing multiple rings.
- Number of rings: typically 3–4 rings depending on gland depth — ensure combined cross-section fills box with recommended compression allowance.
- Gland follower torque: tighten evenly and gradually; run-in at low speed/pressure then finalize adjustment to achieve controlled leakage rate.
- Anti-extrusion: install PTFE or metallic anti-extrusion rings if pressure and clearance risk extrusion.
- Monitoring: inspect after run-in and schedule periodic checks for wear, leakage and shaft condition.
Application Industries & Case Studies
- Slurry & mining pumps — abrasive slurry sealing
- Paper & pulp processing — fibrous slurry and stock pumps
- Power generation — feedwater and condensate pumps
- Chemical & petrochemical — valves and reciprocating compressors
- Marine & offshore — seawater pumps and bilge systems
Performance Comparison & Material Matrix
| Property | Kevlar / Aramid | PTFE Packing | Graphite-filled | Aramid + Bronze |
|---|---|---|---|---|
| Abrasion resistance | Very high | Poor | Moderate | Very high |
| Running torque | Moderate | Very low | Low | Moderate |
| Chemical resistance | Good (improved when PTFE-impregnated) | Excellent | Good | Good |
| Temperature capability | Up to ~240°C (impregnated variants higher) | Up to ~260°C | Up to ~300°C | Up to ~220°C |
| Suitability for reciprocating shafts | Excellent | Limited | Good | Good |
Common Failures & Troubleshooting
- Rapid wear in abrasive service
- Cause: High solid content and abrasive particles. Action: Use aramid with bronze interlayer or PTFE-impregnated aramid and increase frequency of inspection; install flush or filtration where possible.
- Excessive leakage post-install
- Cause: Incorrect number of rings, poor joint cutting or under-tightened gland. Action: Reinstall with correct ring count, ensure butt joints are square and staggered, perform run-in tightening.
- High running torque & shaft scoring
- Cause: Over-tightening or poor shaft finish. Action: Loosen gland, inspect shaft/sleeve, polish or replace sleeve, select lubricated/impregnated aramid grade.
- Compression set and loss of sealing
- Cause: Overcompression and thermal cycling. Action: Use recommended seating stress, consider composite with resilient core or periodic retorque schedule.
FAQ — For Purchasing / Engineering / Maintenance
Q: Is Kevlar packing suitable for slurry pumps?
A: Yes — Kevlar/aramid braids are often the preferred choice for abrasive slurry services, especially when combined with bronze or graphite interlayers to extend life.Q: Can Kevlar packing be used for rotating shafts at high speeds?
A: For very high-speed rotating shafts, consider low-friction impregnated variants or alternative materials — unfilled aramid may generate higher running torque; consult manufacturer based on rpm and linear speed (m/s).Q: What information is needed for an accurate quote?
A: Provide shaft diameter, shaft speed (rpm or m/s), media description (solids %, particle size if slurry), operating temperature & pressure, motion type (rotating/reciprocating), and gland depth or packing cross-section.
