Acrylic Fiber Packing — Lightweight, Resilient Sealing for Moderate Services
What / Why — Acrylic fiber packing delivers a cost-effective, resilient sealing solution for pumps and valves in water, light chemical and HVAC services. Treated acrylic braids offer good compressibility, low water uptake (when treated) and friendly handling characteristics — a practical choice for many utility and industrial applications.
Executive Summary
Acrylic fiber packing is an economical, easy-to-handle gland packing used extensively in municipal water systems, HVAC, light chemical pumps and general-purpose valves. When properly impregnated or overbraided, acrylic packings balance cost, service life and low maintenance. This page covers material types, selection rules, installation best practices and troubleshooting guidance for procurement and maintenance teams.What is Acrylic Fiber Packing?
Acrylic packing is made from acrylic (polyacrylonitrile-based) fibers braided into square-section ropes or plaited cords. Typical manufacturing steps include oil or polymer impregnation and optional overbraiding with PTFE or lubricants to improve chemical resistance and reduce friction. Acrylic packings are valued for good compressibility, easy cutting and cost-efficiency in many low-to-moderate duty services.-

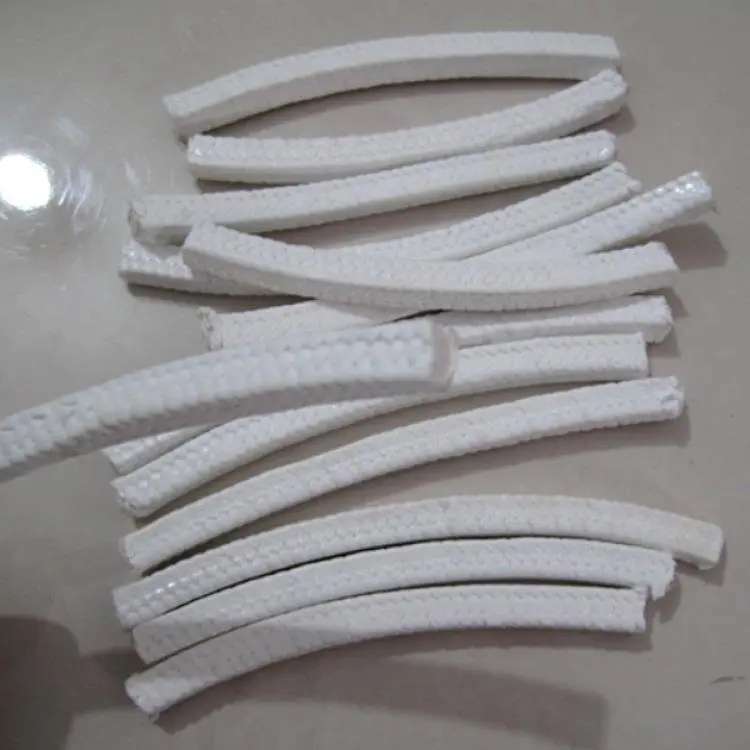

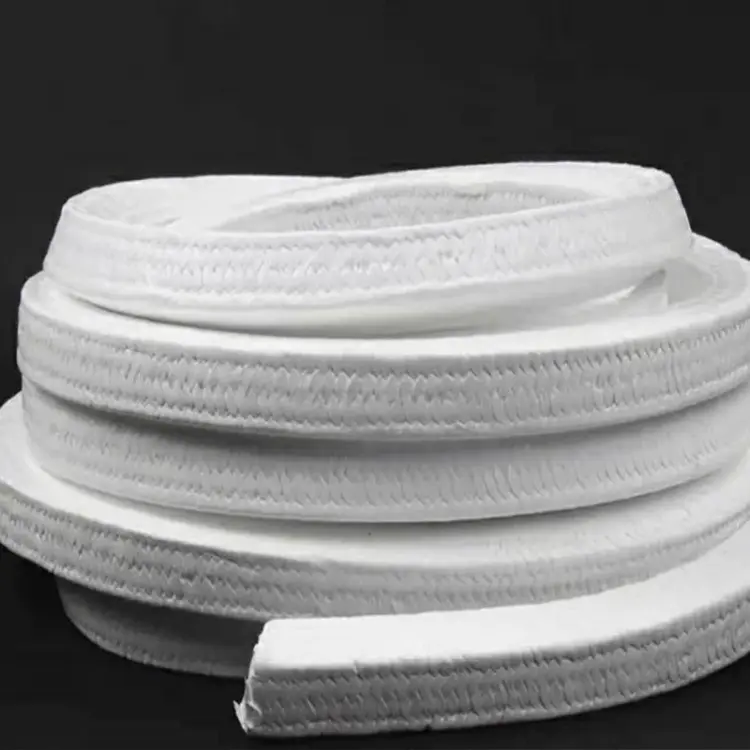

Acrylic Fiber PackingAcrylic Gland Packing Impregnated PTFE
Types & Treatments
By Construction
- Braided square-section acrylic packing
- Plaited rope constructions for flexible fit
- Pre-formed rings and kits for common shafts
By Impregnation / Overbraid
- Oil-impregnated (lubricant) — basic sealing and run-in
- PTFE overbraid or PTFE-impregnated — improved chemical resistance & lower friction
- Graphite or mineral-filled impregnation — improved heat performance and lubrication
By Application Form
- Spools for onsite cutting
- Pre-formed rings/kits for quick replacement
- Die-cut rings for precision seals
Selection Guide — How to Choose Acrylic Fiber Packing
- Service media: acrylic is suitable for water, mild chemicals and lubricants. For aggressive chemicals or solvents prefer PTFE-impregnated or alternative families (PTFE, aramid).
- Temperature & pressure: acrylic typically works up to moderate temperatures (refer datasheet); avoid high-temperature oxidizing services.
- Motion type: for rotating shafts select low-friction overbraided variants; for reciprocating motions acrylic performs well when properly lubricated.
- Moisture & swelling: choose treated/impregnated grades to minimize water uptake and dimensional change.
- Cost vs life: acrylic offers low initial cost — weigh lifecycle costs for critical services where longer-life alternatives may be more economical.
Quick tip: request a compatibility trial or sample set for new media to confirm swelling, friction and wear characteristics before volume deployment.
Technical Parameters & Typical Sizes
Reference values — substitute your product datasheet numbers before publishing.| Type | Temp Range (°C) | Max Pressure (bar) | Typical Cross-section (mm) | Key Strengths |
|---|---|---|---|---|
| Virgin acrylic braid | -30 → +150 | ≤ 25 | 3 × 3, 4 × 4, 5 × 5 | Low cost, good compressibility |
| PTFE-overbraided acrylic | -200 → +200 | ≤ 40 | 3 × 3, 4 × 4 | Improved chemical resistance & low friction |
| Graphite-impregnated acrylic | -50 → +250 | ≤ 50 | 4 × 4, 6 × 6 | Better lubrication & higher temp tolerance |
Packaging & Standard Lengths
| Form | Std Length | Pack |
|---|---|---|
| Braid spools | 10 m / 25 m / 50 m | Spools / boxed |
| Pre-formed rings | Single ring packs | Blister / carton |
| Cut-to-length kits | Per gland set | Kit with instructions |
Datasheets & Technical Documents
Download acrylic packing catalogues, compatibility charts and installation guides.Installation, Gland Adjustment & Best Practices
- Prepare stuffing box: remove old packing, clean channels and inspect shaft/sleeve condition.
- Cut rings squarely: ensure tight butt joints and stagger joints across rings to prevent leakage paths.
- Number of rings: typically 3–4 rings depending on gland depth — avoid over-compression to prevent rapid wear.
- Run-in procedure: start at low speed/pressure and tighten incrementally to achieve moderate leakage acceptable for initial seating.
- Flush & lubrication: where recommended use a light flush or gland lubricants if compatible with media and packing treatment.
- Storage: store in cool, dry locations away from direct sunlight and strong oxidizers.
Application Industries & Case Studies
- Municipal water & wastewater pumps
- HVAC systems — circulation pumps and valves
- Light chemical transfer pumps
- General utilities and building services
- Food & beverage (select food-grade treated variants)
Performance Comparison & Material Matrix
| Property | Acrylic (virgin) | PTFE-overbraided Acrylic | Graphite-impregnated Acrylic | PTFE Packing |
|---|---|---|---|---|
| Chemical resistance | Fair | Good | Good | Excellent |
| Water/moisture uptake | Moderate | Low | Low | Low |
| Running torque | Moderate | Low | Low | Very Low |
| Abrasion resistance | Moderate | Improved | Improved | Varies |
| Temperature capability | Up to ~150°C | Up to ~200°C | Up to ~250°C (short) | Up to ~260°C |
Common Failures & Troubleshooting
- Swelling / softening
- Cause: Exposure to incompatible solvents or prolonged hot water. Action: Switch to PTFE-overbraided or PTFE-impregnated grade; run compatibility tests.
- Excessive leakage after installation
- Cause: Poorly cut rings, aligned joints or insufficient rings. Action: Re-cut rings, stagger joints, ensure correct ring count and follow run-in torque procedure.
- Short service life in abrasive slurries
- Cause: Abrasive solids causing wear. Action: Use aramid/carbon-reinforced packings or bronze-filled alternatives for abrasion-prone services.
