Ramie (Flax) Fiber Packing — Natural-Fiber Gland Packing for Sustainable Sealing
What / Why — Ramie (a natural vegetable fiber) packing provides cost-effective, resilient sealing in many pump and valve glands where bio-based materials are preferred. When properly treated and impregnated, ramie packing offers good compressibility, wickability and temperature tolerance for low-to-moderate pressure services, making it attractive for water, steam and general utility applications with sustainability goals.
Executive Summary
Ramie fiber packing is an eco-friendly gland packing option built from processed natural fibers — often impregnated with lubricants, resins or waxes to enhance sealing and durability. It is widely used where biodegradability, cost and moderate chemical resistance are acceptable trade-offs. This page covers selection criteria, typical specifications, installation best practices, downloadable datasheets and troubleshooting guidance for procurement, maintenance and engineering teams.What is Ramie Fiber Packing?
Ramie (Boehmeria nivea) is a bast fiber with high tensile strength and good wicking properties. In packing products, ramie fibers are:- Braided or plaited into square-section ropes for stuffing boxes
- Impregnated with lubricants, PTFE, graphite, or phenolic resins to improve chemical and thermal performance
- Combined with synthetic yarns (aramid, PTFE) in hybrid constructions for improved durability
-

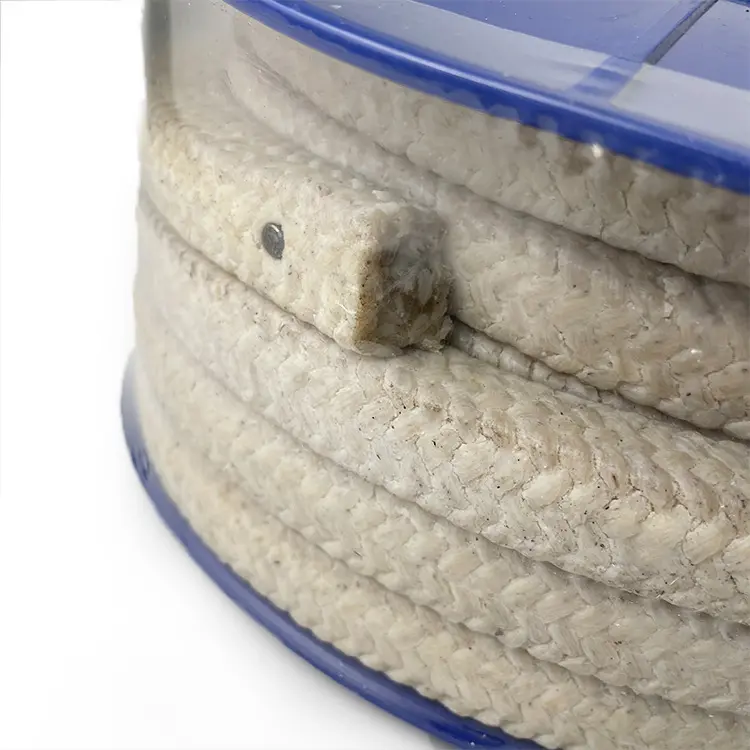

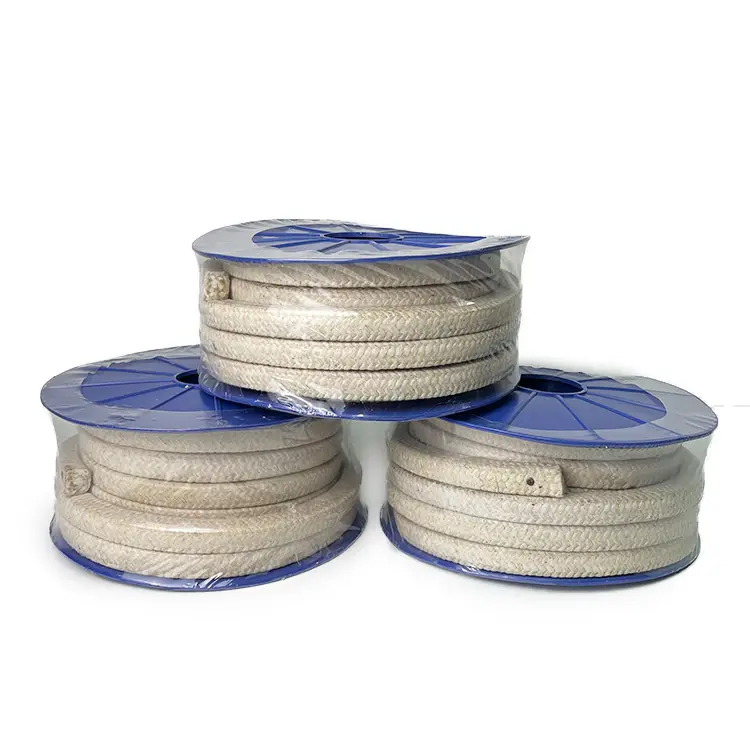

Ramie Fiber PackingRamie Packing Impregnated With PTFE
Types & Treatments — How Ramie Packings Are Engineered
By Construction
- Pure ramie braid — natural fiber, low cost
- Ramie + synthetic hybrid braid — improved strength and reduced cold flow
- Plaited vs braided forms — plaited for conformity, braided for mechanical strength
By Treatment / Impregnation
- Oil-impregnated (lubricant) — improves initial run-in lubrication
- PTFE-wetted or PTFE-impregnated — better chemical resistance and lower friction
- Graphite-impregnated — enhances high-temperature and lubricity
- Resin-bonded or phenolic-treated — for increased dimensional stability
By Application Form
- Spools (braid) for onsite cutting
- Pre-formed rings / kits for common shaft sizes
- Cut sets for valve glands and pump stuffing boxes
Selection Guide — Choosing Ramie Fiber Packing
- Identify media & compatibility: for water, steam (low-temp), lubricants and mild chemicals ramie with PTFE/graphite impregnation can be suitable; avoid strong acids or chlorinated solvents unless PTFE-treated.
- Motion type & speed: for slow-to-moderate rotating shafts and reciprocating motion, ramie performs well; for high-speed rotating shafts consider hybrid or synthetic alternatives.
- Temperature & pressure: select treated grades for moderate temperature (typ. up to ~200°C depending on impregnation) and moderate pressures — consult datasheet for limits.
- Shaft & sleeve finish: ensure recommended shaft hardness and surface finish to minimize wear — use sleeves where necessary.
- Environmental & sustainability goals: choose ramie for reduced synthetic content and lower disposal impact; consider lifecycle trade-offs.
- Installation convenience: pre-formed kits reduce onsite installation time and error vs raw braid.
Practical tip: for wet, aqueous or steam services prefer PTFE- or graphite-impregnated ramie to reduce swelling and increase life; request sample trials for your exact fluid.
Technical Parameters & Typical Sizes
Reference values| Type | Temp Range (°C) | Max Pressure (bar) | Typical Cross-section (mm) | Key Strengths |
|---|---|---|---|---|
| Virgin ramie braid | -20 → +150 | ≤ 25 | 3 × 3, 4 × 4, 6 × 6 | Renewable, good compressibility, low cost |
| PTFE-impregnated ramie | -200 → +200 | ≤ 40 | 4 × 4, 6 × 6 | Improved chemical resistance & lower friction |
| Graphite-impregnated ramie | -50 → +300 (short) | ≤ 60 | 4 × 4, 6 × 6 | Better high-temp lubrication & wear |
| Hybrid ramie/aramid braid | -50 → +240 | ≤ 80 | 4 × 4, 6 × 6 | Higher strength & abrasion resistance |
Standard Packaging & Lengths
| Form | Std Length | Pack |
|---|---|---|
| Braid spools | 10 m / 25 m / 50 m | Spools / boxed |
| Pre-formed rings | Single ring per pack | Blister / carton |
| Packing kits | Sets for gland depth | Kit with instructions |
Datasheets & Installation Guides
Download ramie packing catalogues, compatibility charts and gland installation guides.Installation, Gland Adjustment & Best Practices
- Prepare stuffing box: clean the box, inspect shaft and sleeve for wear, remove old packing material thoroughly.
- Cut rings: cut braid rings square and ensure close-fit butt joints; stagger joints across rings to avoid leakage paths.
- Number of rings: typically 3–4 rings depending on gland depth; ensure rings sit flush and evenly compressed.
- Gland setting & run-in: initially tighten to light compression, run pump at low speed/pressure to seat packing, then tighten incrementally to target leakage rate.
- Flush & lubrication: where recommended use clean water or lubricated flush to remove heat and contaminants during run-in.
- Monitoring: schedule inspections after run-in and periodically for wear, leakage and sleeve condition.
Application Industries & Case Studies
- Water & wastewater pumps — sustainable packing choice
- Paper & pulp — compatible with many fibrous slurries (with appropriate impregnation)
- HVAC & district heating — low-cost steam/water gland sealing
- General utilities and municipal services
- Food & beverage (use PTFE-impregnated / food-grade treated options)
Performance Comparison & Material Matrix
| Property | Virgin Ramie | PTFE-Impregnated Ramie | Graphite-Impregnated Ramie | PTFE Packing |
|---|---|---|---|---|
| Chemical resistance | Fair | Good | Good | Excellent |
| Moisture sensitivity | Higher | Lower | Lower | Low |
| Running torque | Moderate | Low | Low | Very low |
| Abrasion resistance | Moderate | Improved | Improved | Varies |
| Temperature capability | Up to ~150°C | Up to ~200°C | Up to ~300°C (short) | Up to ~260°C |
Common Failures & Troubleshooting
- Excessive swelling or softening
- Cause: Prolonged exposure to incompatible solvents or hot water without proper impregnation. Action: Move to PTFE-impregnated or graphite-impregnated grade; inspect and replace packing.
- Rapid wear in abrasive service
- Cause: High-solid content or abrasive particles. Action: Use hybrid ramie/aramid braid or include bronze interlayer; consider filtration or flush to limit solids.
- Excessive leakage after installation
- Cause: Incorrect ring count, poor joint cutting or under-tightened gland. Action: Reinstall with correct ring count, ensure square joints and follow run-in tightening procedure.
- Molded/biodegradation concerns
- Cause: Improper storage or biological attack in humid storage. Action: Store in dry conditions; use treated grades with preservatives for long storage.
