Executive Summary

PTFE gaskets are high-performance sealing solutions for corrosive, high-purity and hygienic services. They come in virgin and filled grades, with options for edge welding and PTFE-faced laminates for improved mechanical properties. This page provides comprehensive selection guidance, technical specs, installation best practices and downloadable resources for procurement, engineering and maintenance teams.

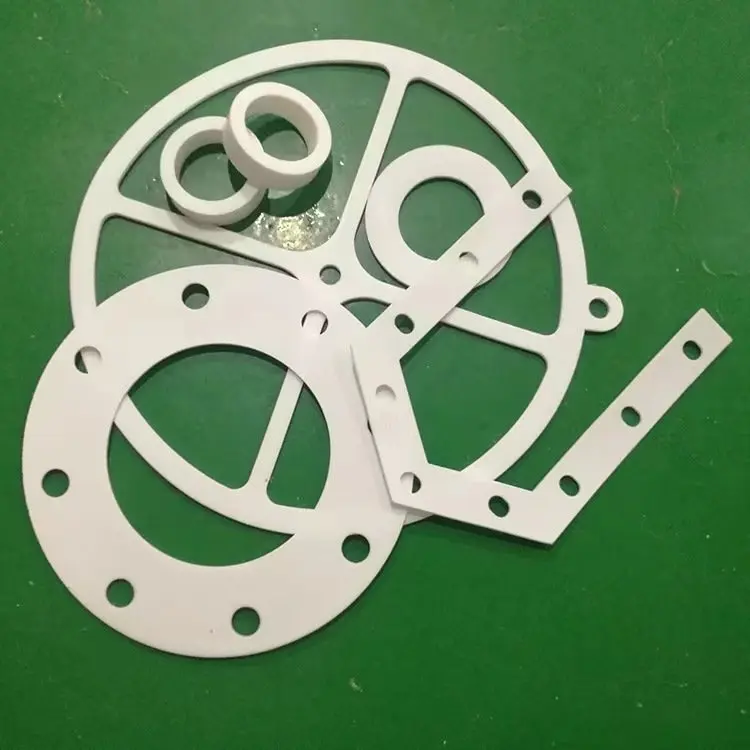

What is a PTFE Gasket?

A PTFE gasket is made from polytetrafluoroethylene (PTFE) sheet material, cut or molded into gasket profiles. Variants include virgin PTFE, glass/bronze/graphite-filled PTFE and skived or molded types. PTFE provides broad chemical compatibility, low permeation and minimal extractables — making it the preferred choice where contamination must be avoided. Key benefits: excellent chemical resistance, very low coefficient of friction, FDA/USP options for food & pharma, and good dielectric properties for electrical isolation.

PTFE Gasket Types & Product Variants

By Composition

  • Virgin (unfilled) PTFE — maximum purity, lowest friction
  • Glass-filled PTFE — improved creep resistance & stiffness
  • Carbon / Graphite-filled PTFE — improved wear & reduced friction
  • Bronze-filled PTFE — better thermal conduction & wear
  • Conductive PTFE — ESD / grounding applications

By Construction

  • Skived PTFE sheet gaskets (thin, precision)
  • Molded PTFE gaskets (complex shapes)
  • PTFE-faced metal gaskets (metal core + PTFE facing)
  • Edge-welded PTFE gaskets (sealed edges to reduce permeation)

By Application

  • Chemical process flanges
  • Food & beverage sanitary flanges
  • Pharmaceutical & biotech piping
  • Semiconductor ultra-pure chemical lines

Selection Guide — How to Choose the Right PTFE Gasket

  1. Determine service chemistry: PTFE is broadly compatible, but filled grades may affect performance for some reagents — always check compatibility with concentration and temperature.
  2. Consider creep and cold flow: virgin PTFE exhibits cold flow; for static high-pressure flanges prefer filled grades or thicker gaskets and metal-faced designs.
  3. Decide on edge treatment: edge-welding prevents permeation and improves mechanical integrity in thin gaskets.
  4. Hygiene & approvals: choose FDA / USP / 3-A compliant PTFE for food and pharmaceutical services.
  5. Dynamic vs static service: for rotating shafts or dynamic joints prefer filled PTFE with lower wear or alternate low-friction materials.
  6. Temperature & pressure: verify continuous and transient limits; PTFE typically up to ~260°C but design must consider pressure & creep.

Practical tip: when replacing a compressed fiber gasket with PTFE evaluate gland geometry and bolt load — PTFE may require different seating stress to seal correctly.

Technical Parameters & Common Specifications

Reference values
Type Temp Range (°C) Max Pressure (bar) Typical Thickness (mm) Key Advantages
Virgin PTFE -200 to 260 ≤ 100 (application dependent) 0.25 / 0.5 / 1.0 / 2.0 Max chemical inertness, low extractables
Glass-filled PTFE -150 to 260 ≤ 160 0.5 / 1.0 / 1.5 / 3.0 Improved creep resistance & stiffness
Carbon/Graphite-filled PTFE -200 to 260 ≤ 160 0.5 / 1.0 / 2.0 Lower friction & better wear
PTFE-faced metal laminate -200 to 240 ≤ 250 PTFE face on metal core (varies) Good blowout resistance & structural support

Standard Sheet Sizes & Packaging

Sheet Size (mm) Thickness Options (mm) Typical Use
1000 × 1000 0.25, 0.5, 1.0 Thin gaskets & instrumentation
1500 × 1500 1.0, 2.0, 3.0 Process flanges & larger gaskets
2000 × 1000 1.5, 3.0 Fabrications & custom linings

Product Data & Technical Documents

Download PTFE grade datasheets, chemical compatibility charts and edge-welding guides.

Cutting, Edge-Welding & Handling Recommendations

  1. Cutting: waterjet and CNC die-cutting give best edges; skiving for thin sheets. Avoid excessive heat when machining virgin PTFE.
  2. Edge-welding: recommended for thin PTFE gaskets and critical services to prevent permeation and improve mechanical integrity.
  3. Cleaning & contamination control: use clean tools, gloves and clean-room practices for semiconductor or pharma applications.
  4. Assembly: ensure correct gasket centring, bolt hole clearance and avoid overcompression which may cause cold flow.
  5. Storage: store flat, in original packaging, protected from UV and extreme heat.

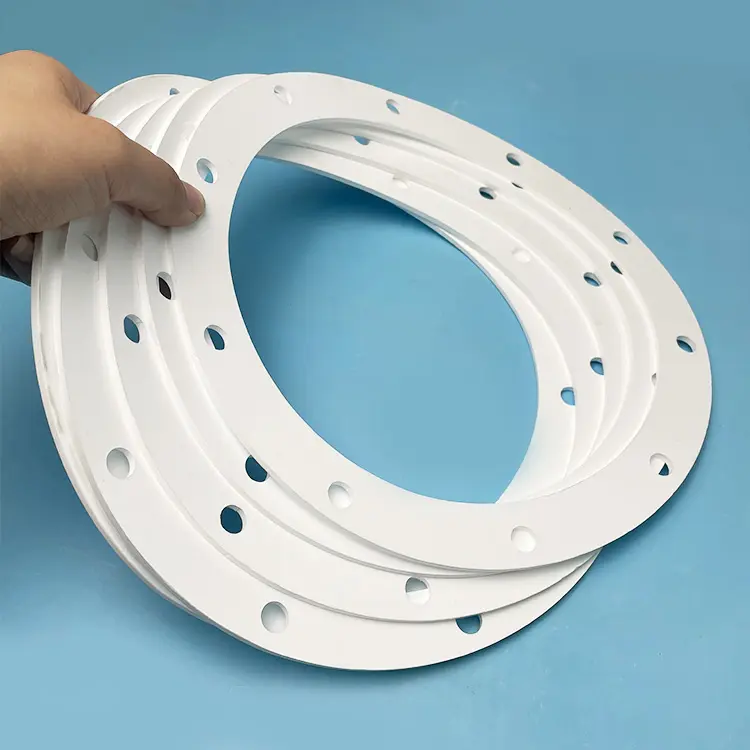

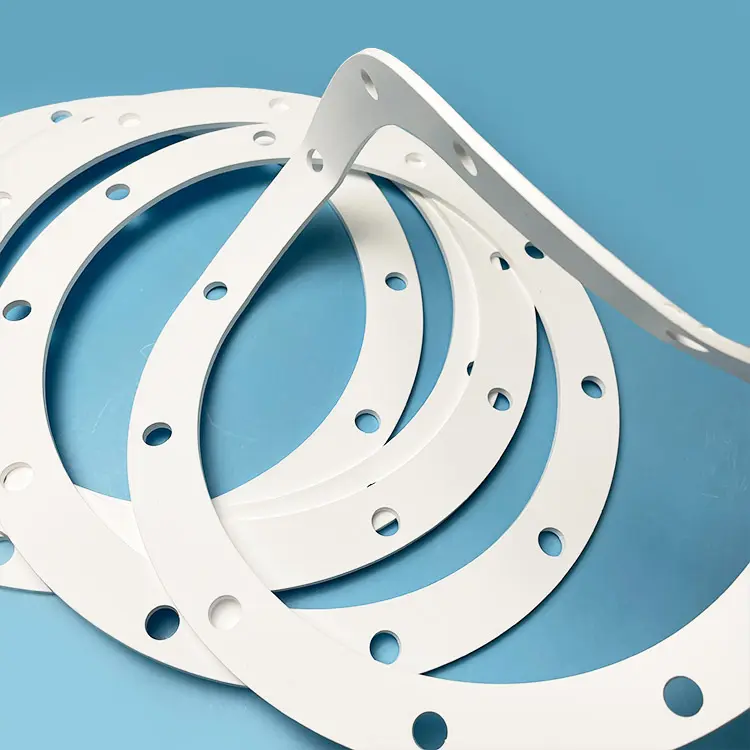

expanded ptfe gasket
Recommended workflow: precision cut → edge-weld (if required) → fit → torque.

Application Industries & Case Studies

  • Chemical processing (aggressive acids, solvents)
  • Food & Beverage (sanitary PTFE gaskets)
  • Pharmaceutical & biotech (low extractables)
  • Semiconductor & electronics (ultra-pure chemical lines)
  • Marine & desalination (corrosion resistance)

Case Study — Chemical Transfer Line Upgrade

Problem: Frequent leaks and permeation on solvent transfer lines. Solution: Replaced compressed fiber gaskets with edge-welded filled PTFE gaskets and PTFE-faced metal gaskets on coarse flanges. Result: Eliminated solvent permeation incidents, extended maintenance cycles and improved safety compliance.

Performance Comparison & Material Matrix

Property Virgin PTFE Glass-filled PTFE Carbon-filled PTFE PTFE-faced laminate
Chemical resistance Excellent Excellent Excellent Excellent
Temperature range -200 → +260°C -150 → +260°C -200 → +260°C -200 → +240°C
Creep / cold flow High Reduced Reduced Reduced (metal core)
Friction / wear Very low Low Lower Low
Permeation Low Lower Lower Lowest

Common Failures & Troubleshooting

Gradual leakage due to cold flow
Cause: Virgin PTFE cold flow under sustained bolt load. Action: Use filled PTFE, increase gasket thickness, or switch to PTFE-faced metal laminates.
Edge fraying or imperfect cut
Cause: Poor cutting techniques. Action: Use waterjet or precision die-cut and apply edge-welding or adhesive sealing where required.
Contamination in sanitary service
Cause: Improper handling or non-certified grades. Action: Use FDA/USP grades, clean-room cutting and ensure traceability of materials.
Static charging
Cause: Virgin PTFE is insulating. Action: Use conductive PTFE for ESD-sensitive applications or grounding strategies.

FAQ — For Purchasing / Engineering / Maintenance

Q: When should I choose filled PTFE over virgin PTFE?A: Choose filled PTFE when creep resistance, stiffness and dimensional stability are needed (high pressure or high bolt loads). Filler selection (glass, carbon, bronze) depends on required wear, thermal or electrical properties.
Q: Is edge-welding necessary?A: Edge-welding reduces permeation and prevents filler loss or fraying on thin gaskets — it is recommended for critical services and thin skived PTFE gaskets.
Q: What info speeds up an accurate quote?A: Provide PTFE grade (or service description), gasket drawing or OD/ID/thickness, operating T & P, media composition, required approvals (FDA/USP) and annual quantities.
Ready to specify PTFE gaskets for your system?
Contact our technical team for material comparisons, edge-welding services and sample gaskets.
