Executive Summary

Rubber gaskets are versatile sealing solutions for hydraulic, pneumatic, water, HVAC and general industrial systems. By selecting the correct elastomer (NBR, EPDM, FKM, Silicone, Neoprene), you can optimize resistance to oils, steam, weathering or food-grade needs while controlling cost and ease of installation.

What is a Rubber Gasket?

A rubber gasket is made of elastomeric sheet material cut or molded into a gasket profile. Depending on compound and construction (solid, sponge, reinforced), rubber gaskets provide elasticity, recovery and sealing across a wide range of flange types and service conditions. They are commonly bonded to metal or fabric backings for specific mechanical demands.

Common Rubber Gasket Types & Compounds

NBR (Nitrile)

Excellent hydrocarbon & oil resistance; used in hydraulic systems, fuel fittings and oil transfer lines.

EPDM

Great resistance to weather, ozone, hot water and steam — widely used in water systems, HVAC and outdoor seals.

FKM (Viton®)

Premium chemical and high-temperature performance for aggressive fuels, acids and high-temp hydraulic systems.

Silicone

Outstanding temperature range and food-grade grades available; used in food, pharma and electrical insulation.

Neoprene (CR)

Good weathering and moderate oil resistance; common in refrigeration and outdoor gaskets.

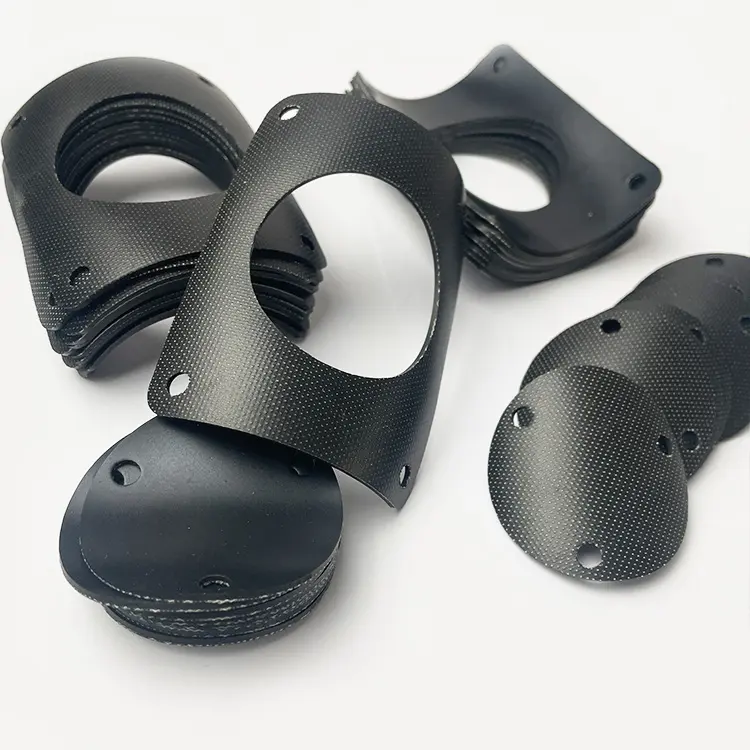

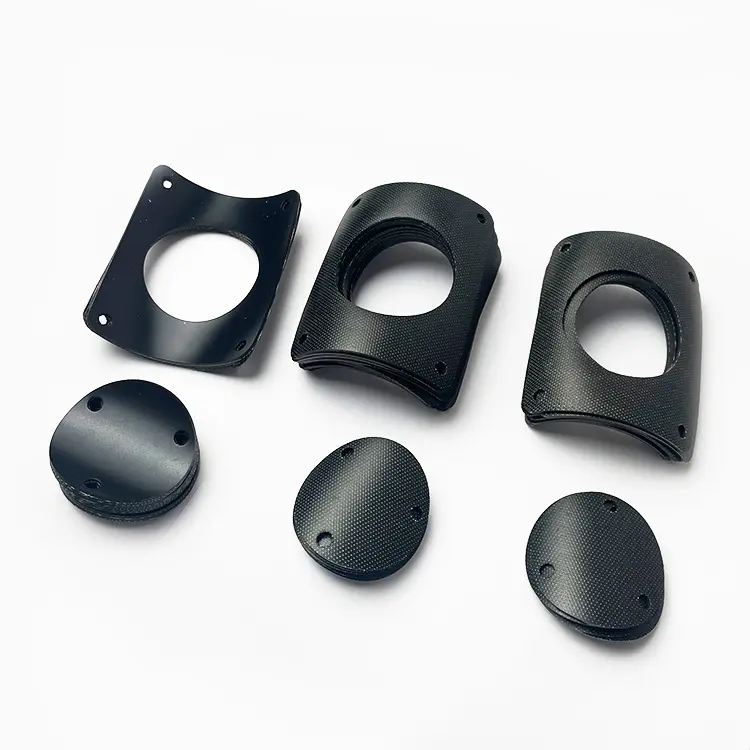

Sponge / Cellular & Reinforced

Variants: closed-cell sponge for cushioning, fabric/metal-backed for mechanical strength and anti-extrusion.

Selection Guide — How to Specify the Right Rubber Gasket

  1. Identify operating media: oil, fuel, chemical, steam, water — NBR/FKM for hydrocarbons; EPDM for steam & hot water; FKM for aggressive chemicals.
  2. Temperature range: confirm continuous and peak temperatures; silicone for extreme low/high temps, FKM for high temps up to ~200°C.
  3. Hardness (Shore A): softer compounds (40–60A) seal better under low bolt load; harder compounds (70–90A) resist extrusion.
  4. Compression set: choose materials with low compression set for long-term static seals.
  5. Mechanical constraints: use fabric or metal reinforcement for high pressure or dynamic joints; consider bonded washers for bolted joints.
  6. Compliance: for food/pharma choose FDA or USP listed compounds and controlled manufacturing processes.

Quick tip: if chemical compatibility is uncertain, request a small soak/swell test or sample trial in your exact fluid at operating temperature.

Technical Parameters & Typical Dimensions

Reference figures
Compound Temp Range (°C) Typical Hardness (Shore A) Compression Set (24h @ 70°C) Typical Uses
NBR -40 → +120 60 — 90 20% — 40% Hydraulics, oils, fuel systems
EPDM -50 → +150 60 — 90 15% — 35% Water, steam, outdoor seals
FKM (Viton) -20 → +200 70 — 90 10% — 25% Aggressive chemicals, high temp
Silicone -60 → +200 30 — 80 30% — 60% Food, pharma, electrical insulation
Neoprene (CR) -40 → +120 60 — 80 20% — 45% Weathering, refrigeration

Standard Gasket Forms & Sizes

Form Typical Range Notes
O-rings AS568 / metric sizes Extrusion grades and cord stock available

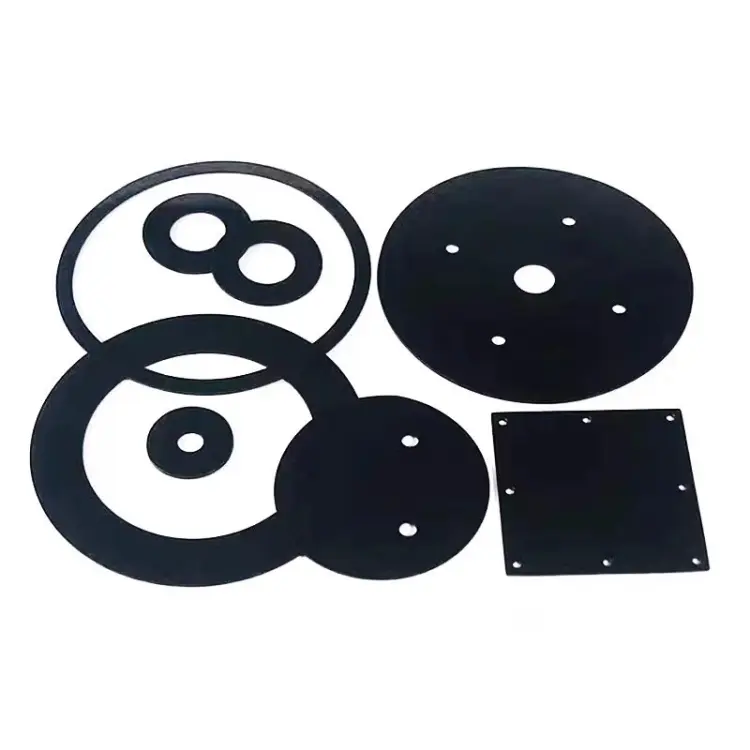

Die-cut rings & full-face Custom OD/ID thickness Cut-to-size from sheet or molded
Bonded washers Std bolt sizes Metal + rubber bonded for flange/seal integrity

Datasheets & Technical Documents

Download compound datasheets, chemical compatibility tables and cutting/installation guides.

Installation, Bonding & Maintenance

  1. Face & flange prep: clean surfaces, remove old gasket residues and check flange flatness.
  2. Adhesives & bonding: use compound-specific adhesives when required; silicone and neoprene require different primers/adhesives.
  3. Tightening & seating: for full face gaskets tighten bolts in cross pattern with recommended torque; do not overcompress soft rubber gaskets.
  4. Inspection: check for extrusion, compression set and chemical attack during scheduled maintenance.
  5. Storage: store sheets and o-rings in cool, dark conditions away from ozone sources and solvents.
Rubber Gasket
Typical workflow: cut or form → bond if required → fit → torque to specification → inspect after run-in.

Application Industries & Case Studies

  • Hydraulics & pneumatics — cylinders, valves, seals
  • Automotive — sealing in engines, fuel systems, cooling
  • Water treatment & HVAC — EPDM and neoprene seals
  • Food & pharma — FDA-grade silicone & nitrile seals
  • Appliances & consumer products — molded gaskets & seals

Case Study — Hydraulic Cylinder Seal Upgrade

Problem: Frequent seal wear and fluid leakage in hydraulic cylinder. Solution: Upgraded to a tailored nitrile (NBR) compound with improved abrasion resistance and correct hardness; revised groove dimensions and installed bonded backup rings. Result: Leakage eliminated and seal life increased 4× under field conditions.

Performance Matrix — Quick Compound Comparison

Property NBR EPDM FKM Silicone Neoprene
Oil & hydrocarbon resistance Excellent Poor Very Good Poor Moderate
Steam / hot water Moderate Excellent Good Good Moderate
Weather & ozone Fair Excellent Good Excellent Good
Max temp (approx) ~120°C ~150°C ~200°C ~200°C ~120°C
Common uses Hydraulics, fuel Water, HVAC High-temp fuels/chemicals Food & pharma Outdoor seals

Common Failures & Troubleshooting

Swelling or softening
Cause: Exposure to incompatible solvents or high temperature. Action: Replace with chemically compatible compound (e.g., FKM for hydrocarbons) and validate with compatibility tests.
Compression set / loss of seal
Cause: Extended high temperature or poor compound selection. Action: Choose low-compression-set compound or increase hardness/thickness where feasible; implement scheduled replacement intervals.
Extrusion at flange
Cause: Low hardness, high pressure and poor confinement. Action: Increase Shore hardness, add anti-extrusion rings or use bonded metal backing.
Cracking & brittleness
Cause: Ozone/UV exposure or ageing. Action: Use ozone/UV resistant compound (EPDM) and protect from sunlight or ozone sources.

FAQ — For Purchasing / Engineering / Maintenance

Q: Which rubber is best for oil seals?A: Nitrile (NBR) and FKM are preferred for oil and hydrocarbon services; choose FKM when temperature or chemical aggressiveness exceeds NBR limits.
Q: Can rubber gaskets be used in food applications?A: Yes — use FDA/EU food-grade silicone or certified nitrile compounds and ensure traceability and clean-room cutting when required.
Q: What details speed up a quote?A: Provide compound (or expected service), gasket form (O-ring, die-cut ring, full-face), dimensions (ID/OD/thickness), quantity and operating T & P. Attach drawings if available.

Ready to specify rubber seals for your system?

Contact our technical team for sample kits, compatibility tests and bonded gasket assemblies.
