Executive Summary

Graphite gaskets (flexible graphite sheets, metal-faced graphite, compressed graphite laminates) are engineered to provide gas-tight seals under high temperature, pressure cycling and chemically aggressive environments. This page helps procurement, piping engineers and maintenance teams understand types, selection rules, installation best practices and failure mitigation for graphite-based gaskets.

What is a Graphite Gasket?

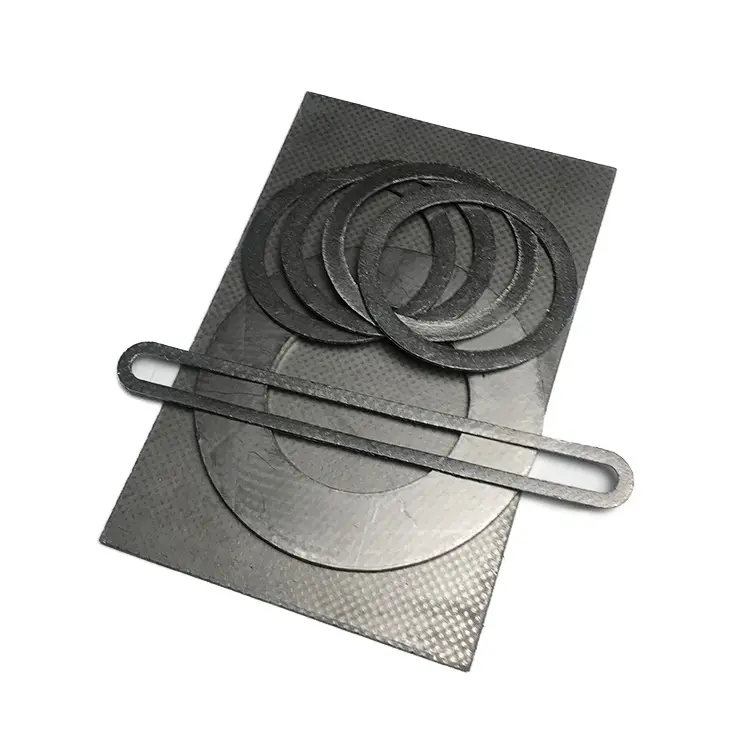

Graphite gaskets are sealing elements made from exfoliated (expanded) graphite re-compacted into sheets, or graphite laminated onto metal facings. Varieties include:
  • Flexible graphite sheet — pure graphite compressed to varying density for high conformability and low permeability.
  • Metal-faced graphite (SSFG) — graphite core bonded to stainless steel or foil face for flange protection and blowout resistance.
  • Compressed graphite laminates — graphite combined with reinforcements (fibers/foils) to enhance mechanical strength.
Key strengths: wide temperature window, low gas permeation, excellent conformability to irregular flanges and good resistance to many chemicals. Limitations include oxidation risk in hot oxygenated environments — choose facing or coatings where needed.

Classification — By Format, Facing & Grade

By Format

  • Cut sheets for die-cut gaskets and bespoke seals
  • Ring gaskets (jam ring, full face or segmented)
  • Spiral-wound gaskets using graphite filler
  • Preformed and RTJ style graphite seals

By Facing / Reinforcement

  • Unfaced plain graphite (best conformability)
  • Stainless-steel foil faced graphite (SSFG)
  • Aluminum foil facing (lightweight facing)
  • Glass/aramid reinforced graphite sheets for handling

By Density & Grade

  • Low density: very conformable, low seating stress
  • Medium density: balanced compressibility and strength
  • High density: higher crush strength and pressure capacity

Selection Guide — How to Choose a Graphite Gasket

  1. Service temperature & atmosphere: graphite resists up to very high temperatures in inert atmospheres; in oxidizing atmospheres consider faced graphite or protective coatings.
  2. Pressure profile: for high pressure or fluctuating pressure select higher density graphite or metal-faced laminates and consider centring rings for rings.
  3. Flange finish: coarse flanges benefit from metal-faced graphite for better blowout resistance and reduced extrusion.
  4. Permeation & gas-tightness: graphite offers low permeability — for the lowest permeation use faced laminates and ensure proper surface contact.
  5. Mechanical handling: thin plain graphite can be fragile — use reinforced grades or faced types for easier die-cutting and assembly.
  6. Compatibility: verify graphite compatibility for strongly oxidizing chemicals at temperature; consult supplier test data for specific media.

Design tip: when converting from compressed fiber to graphite, confirm required seating stress and consider adding metal facings or centring rings to manage extrusion and blowout risk.

Technical Parameters & Common Specifications

Typical reference values — please substitute with your product datasheets before publishing.
Type Temp Range (°C) Max Pressure (bar) Typical Thickness (mm) Key Notes
Plain flexible graphite (low density) -200 to 400 ≤ 100 0.5 / 1.0 / 1.5 Excellent conformability; use where low seating stress is available
Plain graphite (high density) -200 to 450 ≤ 250 1.0 / 2.0 / 3.0 Better extrusion resistance and pressure capability
Stainless-steel faced graphite (SSFG) -200 to 450 ≤ 400 0.5 — 1.5 (face + core) Improved blowout resistance and flange protection
Compressed graphite laminate (reinforced) -200 to 450 ≤ 200 0.5 / 1.0 / 2.0 Balanced handling and sealing for mid-duty services

Common Sheet Sizes & Packaging

Sheet Size (mm) Thickness Packaging
1000 × 1000 0.5 / 1.0 / 1.5 Carton / pallet
1500 × 1500 1.0 / 2.0 / 3.0 Wood pallet
2000 × 1000 1.5 / 3.0 Crates for large orders

Product Data & Technical Documents

Download datasheets, oxidation/aging reports, facing specifications and templates for die-cut gaskets.

Installation, Bolt Tightening & Maintenance

  1. Face prep: clean flange faces thoroughly and remove old gasket material and corrosion.
  2. Check flange condition: measure flatness and parallelism; repair machined surfaces if necessary.
  3. Gasket orientation: for faced graphite orient metal face toward coarse flange as recommended by supplier.
  4. Tightening: tighten bolts in a star/cross pattern in several increments to the specified torque or seating stress values.
  5. Thermal cycles: inspect after initial heat cycles and retorque if supplier recommends; monitor for signs of extrusion or oxidation.
  6. Storage & handling: store flat, avoid folding or sharp bends for thin graphite sheets; use faced or reinforced grades where heavy handling is expected.

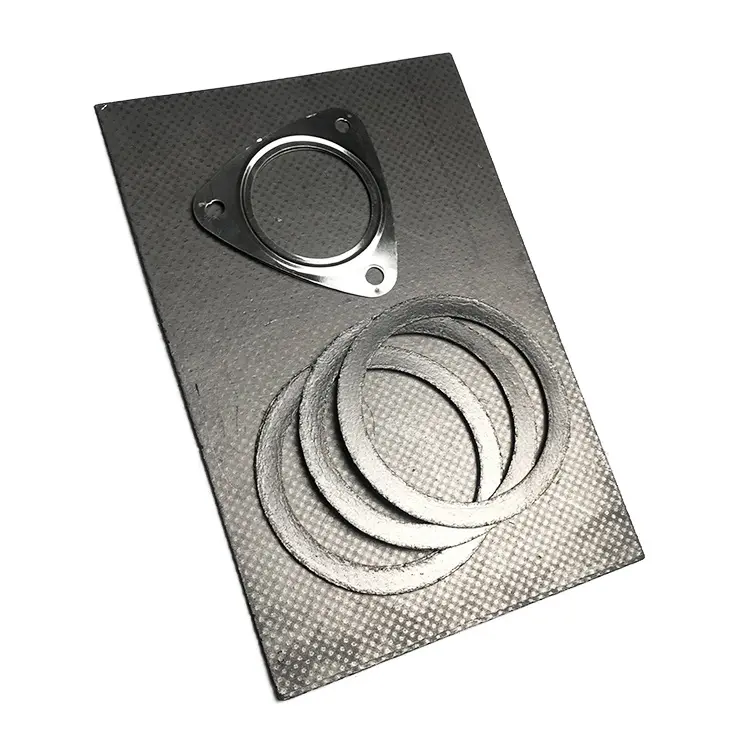

Graphite Gasket
Typical workflow: clean → fit → tighten in steps → inspect after run-in.

Application Industries & Case Studies

  • Power generation — steam turbines, heat exchangers
  • Petrochemical & refining — high-temp process lines
  • Marine & offshore — exhaust and high-temp piping
  • Chemical processing — many inorganic/organic services
  • Industrial furnaces & boilers — high-temperature seals

Case Study — Steam Header Sealing Upgrade

Problem: Recurrent leak and oxidation damage on 400°C steam header flanges. Solution: Replaced compressed fiber gaskets with stainless-steel faced graphite gaskets, improved flange surface finish and increased specified bolt preload. Result: Achieved gas-tight seal across thermal cycles and reduced maintenance frequency.

Performance Comparison & Material Matrix

Property Plain Graphite SSFG (stainless-faced) PTFE Sheet CNAS
Max temp Very high Very high Moderate Moderate
Gas permeability Low Very low Low Medium
Chemical resistance Good (watch strong oxidizers) Good Excellent Good
Conformability Excellent Good Moderate High
Blowout resistance Moderate High Low-Moderate Moderate

Common Failures & Troubleshooting

Graphite oxidation (dark scaling / weight loss)
Cause: Exposure to oxygen at elevated temperatures. Action: Use metal-faced graphite, protective coatings, or inerting strategies; consult oxidation resistance data.
Extrusion or blowout
Cause: Low confinement, low density graphite or coarse flange finish. Action: Upgrade to higher density or faced graphite, add centring/outer ring and increase bolt preload within flange limits.
Leak at bolt hole / bore intrusion
Cause: Missing inner ring on ring gaskets or incorrect installation. Action: Add inner centring ring to protect bore and prevent inward extrusion; verify correct ring orientation.
Handling damage (cracking) on thin sheets
Cause: Mishandling or bending. Action: Use reinforced grades or faced laminates for improved handling; train fitters to avoid sharp bends.

FAQ — For Purchasing / Engineering / Maintenance

Q: When should I choose metal-faced graphite over plain graphite?A: Choose metal-faced graphite when flange surfaces are coarse, blowout resistance is critical, or handling/installation requires added toughness — the metal face protects the graphite core and reduces permeation.
Q: How to mitigate graphite oxidation in hot oxygenated systems?A: Use faced graphite, protective coatings, or select alternative materials (e.g., Inconel-faced solutions). Also control operating atmosphere where possible (e.g., reduce excess oxygen at elevated temperature).
Q: What information helps get a fast quote?A: Provide gasket form (ring/full face), OD/ID/thickness or flange drawing, operating temperature & pressure, media description and required standards or certifications.

Need help specifying graphite gaskets for high-temperature service?

Contact our technical team for oxidation data, faced laminate options, centring ring guidance and sample gaskets.
