Phenolic Packing — Rigid, High-Strength Sealing for Heavy-duty Pumps & Valves
What / Why — Phenolic packing (phenolic resin-impregnated fibers and laminates) offers excellent dimensional stability, compressive strength and resistance to mechanical extrusion. It's chosen where mechanical durability, low creep and high-pressure sealing are required — common in heavy-duty pumps, slurry services and high-pressure valves.
Executive Summary
Phenolic packings provide a balance of mechanical strength, low creep and anti-extrusion performance, making them ideal for heavy-duty sealing under pressure, abrasive slurries and applications needing long-term dimensional stability. This page offers procurement, engineering and maintenance teams a practical guide: selection principles, typical specifications, installation best practices, troubleshooting and downloadable resources.What is Phenolic Packing?

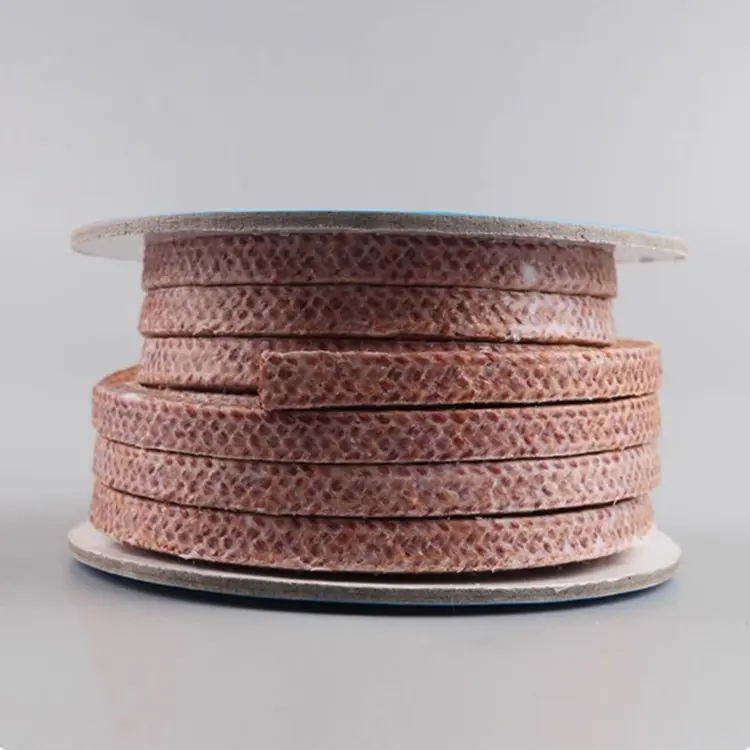

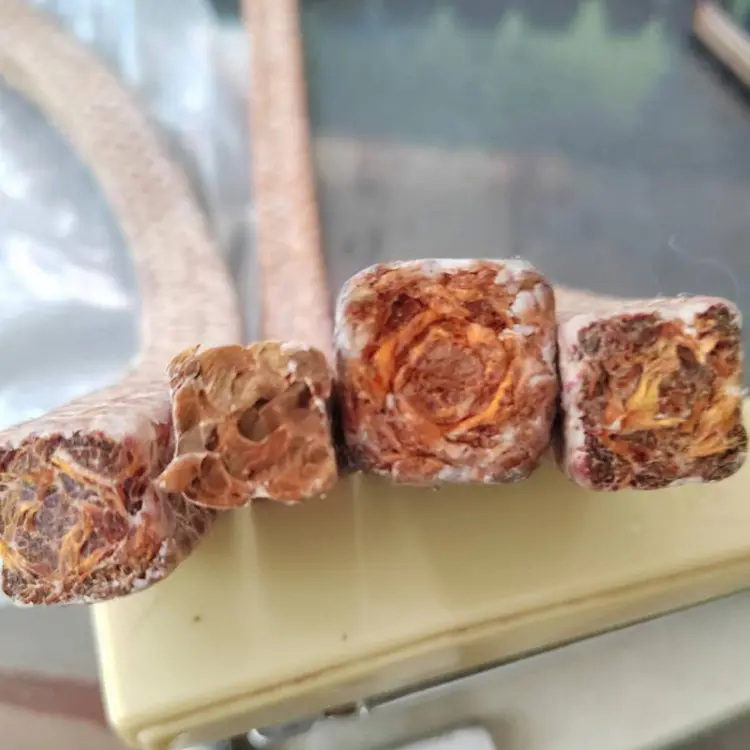

Phenolic packing refers to yarns or braided packings impregnated with phenolic resins or laminated phenolic sheets used as gland packing. Phenolic systems harden into a tough matrix that resists creep and extrusion while offering good compressive strength. Variants include phenolic-impregnated fiber braid, phenolic laminated strips and hybrid constructions with metallic or aramid reinforcement.-
Phenolic PackingKynol Fiber Packing
Classification — By Formulation, Construction & Application
By Formulation
- Phenolic resin-impregnated natural/synthetic fiber braid
- Phenolic laminated strips (pressed sheets)
- Phenolic + metallic reinforcement (wire/core)
By Construction
- Braided square-section rope for stuffing boxes
- Pre-formed rings / cut sets for valve glands
- Composite packs (phenolic + aramid/PTFE layers) for tailored performance
By Application
- High-pressure water and steam pumps
- Abrasion-prone slurry pumps
- High-duty valves in mining and petrochemical plants
Selection Guide — How to Choose Phenolic Packing
- Service profile: determine pressure, temperature, solids content and motion type (rotating/reciprocating).
- Creep & extrusion risk: favor phenolic laminated or reinforced constructions where extrusion under pressure is a concern.
- Abrasion & solids: select phenolic systems with hardened matrices or metallic interlayers for high-abrasion environments.
- Chemical compatibility: phenolic offers good performance in many services but verify for strong oxidizers or high pH extremes — use protective facings if needed.
- Shaft & sleeve condition: ensure shaft hardness and sleeve finish meet OEM guidance to avoid excessive wear.
- Maintenance strategy: phenolic packings typically have long life but can be brittle — schedule inspections and plan replacement kits to minimize downtime.
Tip: use composite phenolic/aramid packings where you need abrasion resistance plus resilient sealing to handle shaft misalignment or vibration.
Technical Parameters & Typical Specifications
Reference figures| Type | Temp Range (°C) | Max Pressure (bar) | Typical Cross-section (mm) | Key Strengths |
|---|---|---|---|---|
| Phenolic-impregnated braid | -40 → +180 | ≤ 100 | 3×3, 4×4, 6×6 | Low creep, good extrusion resistance |
| Phenolic laminated strip | -40 → +200 | ≤ 200 | Custom strip | High compressive strength, heavy-duty sealing |
| Phenolic + aramid composite | -40 → +220 | ≤ 180 | 4×4, 6×6 | Abrasion resistance + improved toughness |
| Phenolic with SS wire core | -40 → +220 | ≤ 300 | Custom | Anti-extrusion for ultra-high pressure |
Standard Packaging & Lengths
| Form | Std Length / Pack | Notes |
|---|---|---|

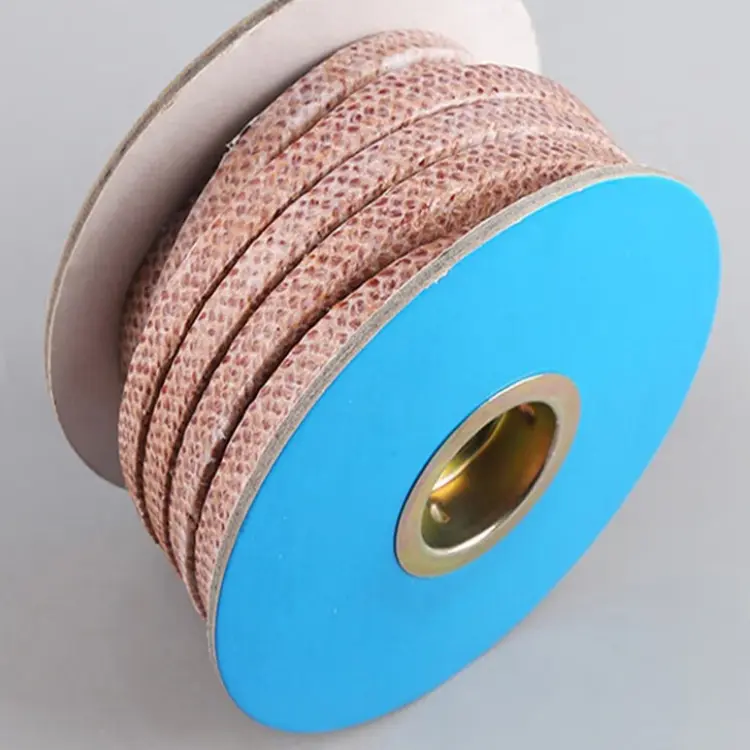

| Braid spools | 10 m / 25 m / 50 m | Boxed spools |
| Pre-formed rings | Single ring packs | Blister / carton |
| Laminated strips | Sheets / cut-to-size | Crated for large orders |
Datasheets & Technical Documents
Download phenolic packing catalogues, abrasion test reports and installation instructions.Installation, Gland Adjustment & Best Practices
- Inspect equipment: remove old packing, inspect shaft, sleeve and gland for wear or scoring.
- Cut & fit: cut braid rings square or install pre-formed rings; for laminated strips ensure correct orientation and overlap.
- Stagger joints: offset joints between rings to reduce leakage paths.
- Tightening & run-in: tighten gradually in cross pattern; phenolic packings often require careful run-in to seat without over-compression which could cause brittleness.
- Anti-extrusion: use inner/outer rings or metallic cores for high-pressure applications.
- Inspection: schedule early inspection after run-in and periodic checks for wear, cracking or extrusion.
Application Industries & Case Studies
- Mining & slurry pumps — abrasion & extrusion resistance
- Power generation — feed pumps and high-pressure valves
- Petrochemical — high-duty pumps and process valves
- Water & wastewater — heavy-duty utility pumps
Performance Comparison & Material Matrix
| Property | Phenolic Braid | Phenolic Laminate | Phenolic + Aramid | PTFE Packing |
|---|---|---|---|---|
| Abrasion resistance | Good | Very Good | Very Good | Varies |
| Creep & extrusion resistance | Good | Excellent | Excellent | Poor-Moderate |
| Temperature capability | Up to ~220°C | Up to ~240°C | Up to ~240°C | Up to ~260°C |
| Chemical resistance | Moderate | Depends on resin | Improved with PTFE layer | Excellent |
| Suitability for high-pressure | Good | Excellent | Excellent | Limited |
Common Failures & Troubleshooting
- Cracking or brittleness after service
- Cause: Overcompression, thermal shock or incompatible chemical exposure. Action: Verify seating stress, select tougher composite grade or reduce compression.
- Extrusion under high pressure
- Cause: Insufficient confinement or wrong profile. Action: Add anti-extrusion rings, use laminated phenolic strips or metallic cores.
- Excessive wear in abrasive service
- Cause: High solids and abrasive particles. Action: use phenolic-aramid composites with hardened matrix and consider improved filtration/flush.
