Executive Summary

Gland packing rings deliver repeatable sealing performance, reduce installation errors and minimize downtime. This page explains ring types (PTFE, graphite, aramid, carbon, bronze-filled), selection criteria, installation best practices, specification tables and troubleshooting for purchasing, engineering and maintenance teams.

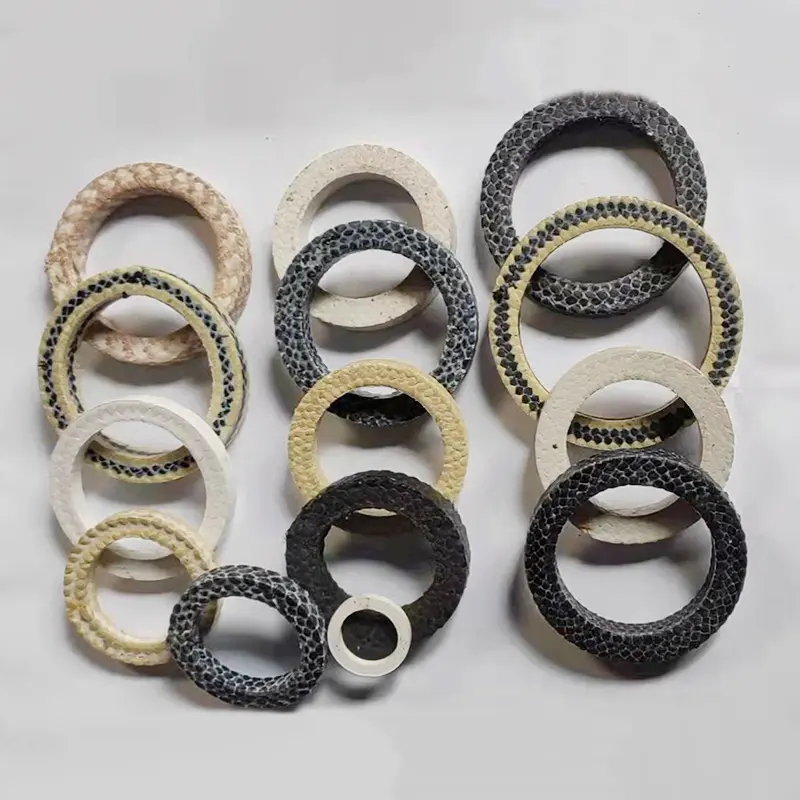

What is a Gland Packing Ring?

A gland packing ring is a pre-formed circular sealing element sized to the shaft/stem diameter and stuffing box depth. Rings can be single-piece molded, split (C-rings), or assembled from cut rings. They save time and reduce variability vs. hand-braided packing and are available in a wide range of materials and impregnations to suit different media and motions.

Classification — By Material, Form & Application

By Material

  • PTFE (virgin & filled) — chemical resistance, low friction
  • Flexible graphite — high temp & steam
  • Aramid / Kevlar — abrasion resistance, slurry service
  • Carbon / carbon-graphite — high strength, antistatic
  • Bronze-filled/metallic-filled — improved thermal conductivity & wear
  • Elastomer-faced rings — improved sealing on rough surfaces

By Form

  • Solid molded rings (one-piece)
  • Split (C) rings — ease of retrofitting without shaft removal
  • Stacked ring sets — combination of different materials for staged sealing
  • Chevron / V-packing rings — for dynamic high-pressure valves

By Application

  • Pumps (rotating shafts) — low friction dynamic rings
  • Valves (reciprocating/rotating stems) — low-leakage stem sealing
  • Mixers & agitators — abrasion & solids handling
  • High-temp steam & heat transfer systems

Selection Guide — How to Choose Gland Packing Rings

  1. Identify motion & speed — dynamic rotating shafts need low-friction or lubricated compositions; reciprocating valves need resilient, low-extrusion rings.
  2. Match media & chemistry — PTFE for aggressive chemicals, graphite for steam, aramid/carbon for abrasive slurries.
  3. Temperature & pressure — choose material with appropriate thermal stability and combine with anti-extrusion rings if pressure is high.
  4. Installation constraints — specify split rings for in-situ replacement, solid molded rings for best sealing but require shaft removal.
  5. Surface finish & shaft condition — rough shafts may need faced rings or sleeves; check hardness and repair if necessary.
  6. Standards & certifications — for food/pharma request FDA-listed PTFE grades; for critical industries request material certificates and test reports.

Quick tip: For mixed challenges (abrasion + heat) consider stacked rings — an inner aramid/carbon ring for wear with an outer graphite/PTFE ring for sealing.

Technical Parameters & Common Specifications

Typical reference values
Material / Type Temp Range (°C) Max Pressure (bar) Common Diameters (mm) Typical Thickness / Cross-section (mm)
PTFE (virgin) -200 → +260 ≤ 60 6 — 500+ 3 × 3, 4 × 4, 5 × 5
Graphite (flexible) -200 → +450 ≤ 150 6 — 1000 4 × 4, 6 × 6, custom
Aramid / Kevlar -50 → +240 ≤ 100 6 — 800 3 × 3, 4 × 4, 6 × 6
Carbon / Carbon-Graphite -50 → +350 ≤ 200 6 — 800 4 × 4, custom
Bronze-filled / metallic-filled -50 → +260 ≤ 250 6 — 500 4 × 4, 6 × 6

Standard Forms & Packaging

Form Packaging Notes
Solid molded rings Boxes of rings (by diameter) Best sealing, need shaft access
Split (C) rings Individual pieces Install without shaft removal
Stacked ring kits Kits by gland depth Combination materials for staged sealing

Product Data & Technical Documents

Download ring dimension charts, material certificates and installation templates.

Installation, Tightening & Maintenance

  1. Inspect & prepare: clean stuffing box, inspect shaft/sleeve and measure gland depth.
  2. Select ring type: choose solid vs split depending on whether shaft removal is possible.
  3. Install rings: for stacked kits install inner rings first and stagger joints 90° apart; ensure rings sit flat.
  4. Initial gland setting: tighten gland follower evenly to light compression to prevent ring deformation.
  5. Run-in procedure: run equipment at low speed/pressure, then tighten incrementally until controlled leakage or dry running per manufacturer guidance.
  6. Maintenance: monitor leakage, check temperature at stuffing box, replace rings when wear or extrusion is observed; avoid over-tightening to prevent shaft wear.

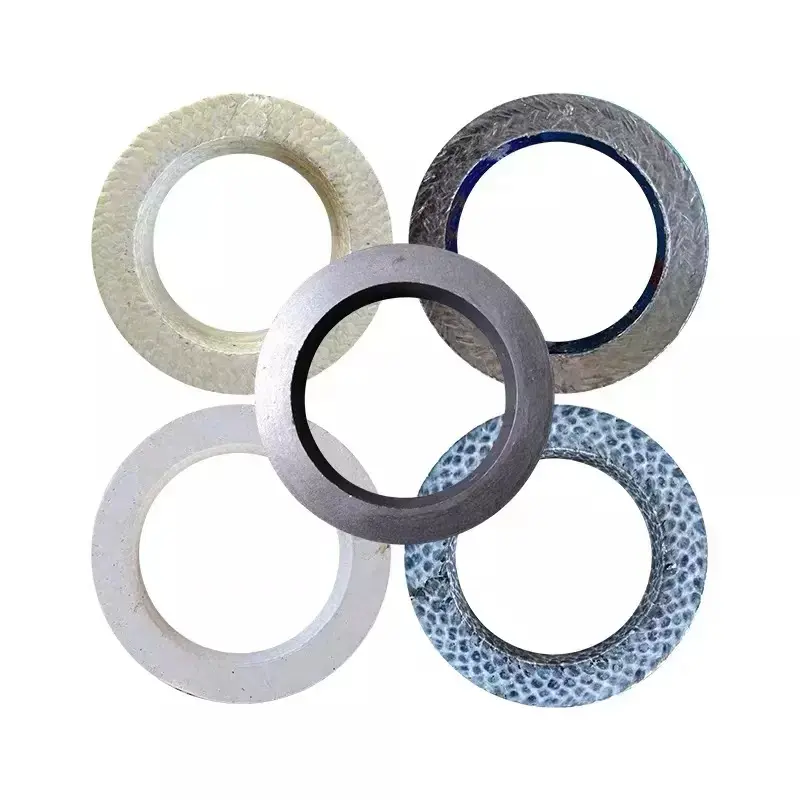

Gland Packing Ring
Typical installation flow for gland packing rings — measure, install, stagger, run-in and adjust.

Application Industries & Case Studies

  • Pumping stations — water, wastewater, slurry
  • Chemical processing — valve stems & agitators
  • Power plants — feedwater pumps and steam valves
  • Marine & offshore — seawater pumps and shaft seals
  • Food & pharma (certified PTFE rings)

Case Study — Quick In-situ Repair with Split Rings

Problem: Critical pump leakage required urgent repair without shaft removal. Solution: Installed split PTFE-filled rings while pump remained in place. Result: Immediate leakage control, pump returned to service within hours and planned full replacement performed during scheduled shutdown.

Performance Comparison & Material Matrix

Property PTFE Rings Graphite Rings Aramid Rings Carbon / Bronze-filled
Chemical resistance Excellent Good Good (impregnated) Good
Temperature capability -200 → +260°C -200 → +450°C -50 → +240°C -50 → +300°C
Abrasion resistance Poor Moderate High Very High
Ease of installation High High High Moderate
Suitability for dynamic shafts Good (filled PTFE preferred) Good Excellent Excellent

Common Failures & Troubleshooting

Leakage after installation
Cause: Improper ring seating, aligned joints or insufficient run-in. Action: Reinstall rings, stagger joints, perform run-in and adjust gland follower per checklist.
Ring extrusion / blowout
Cause: High pressure without anti-extrusion support. Action: Add inner/outer anti-extrusion rings or select reinforced rings with metallic cores.
High running torque
Cause: Over-tightening or inappropriate material (hard rings on soft shafts). Action: Loosen, use lower-friction filled PTFE or adjust ring stack composition; check shaft finish.
Short ring life in abrasive service
Cause: Solids abrasion. Action: Use aramid/bronze-filled/carbon rings and install flush/filtration where possible.

FAQ — For Procurement / Engineering / Maintenance

Q: When should I choose split rings vs solid rings?A: Use split rings for emergency or in-situ replacement where removing the shaft is impractical. Choose solid molded rings when best sealing performance and longevity are priorities and shaft removal is acceptable.
Q: How many rings should a gland use?A: Depends on gland depth. Typical stuffing boxes use 3–4 rings. Stacked kits often combine an inner wear ring with outer sealing rings — follow manufacturer gland depth charts.
Q: What information speeds up a quote?A: Provide shaft/stem diameter, gland depth, motion type (rotating/reciprocating), media, temperature & pressure, required certifications and whether in-situ replacement is needed.
