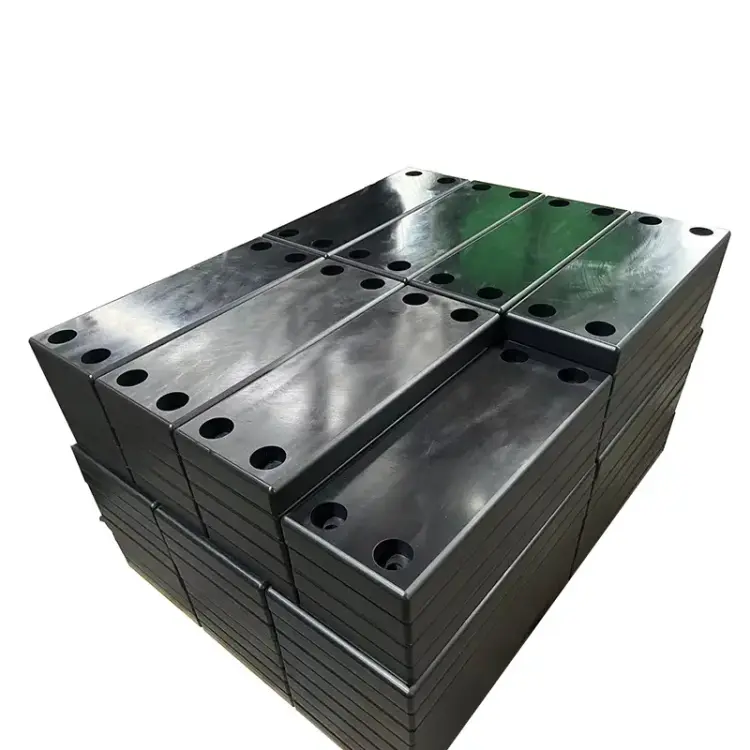

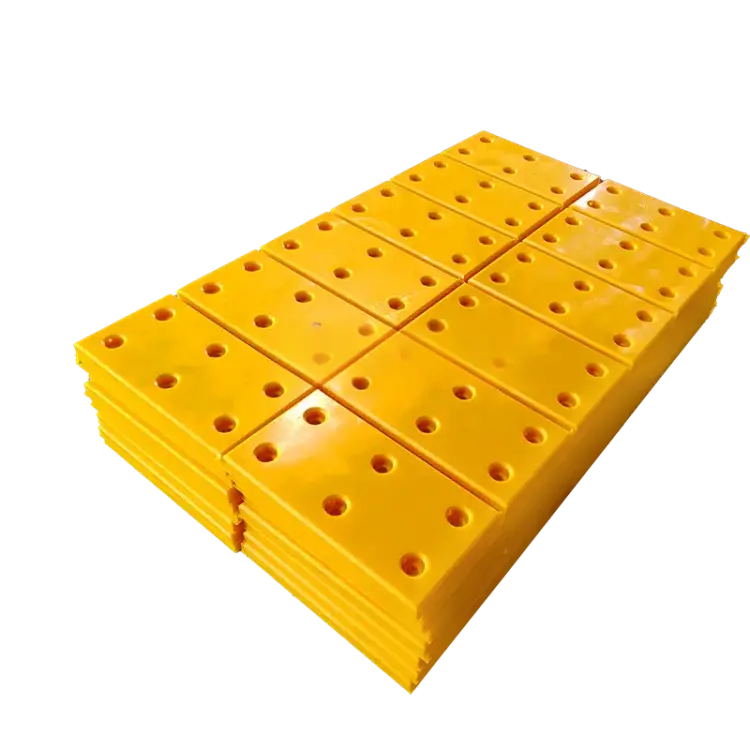

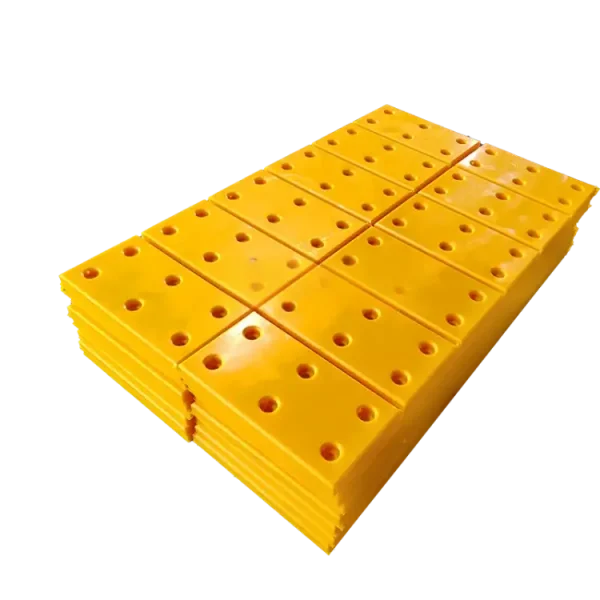

UHMWPE Wear Pads are machined from ultra-high molecular weight polyethylene sheet, rod, or profile. Also supplied as UHMWPE wear strips, UHMW wear pads, or virgin UHMW polyethylene wear components. We machine parts up to 2000 mm × 1000 mm × 100 mm. Standard tolerance is ±0.10 mm. Tighter tolerances down to ±0.05 mm can be quoted. Standard surface finish is Ra 1.6 µm. Natural (white), black, and green (FDA) colours are available. Continuous operating temperature is -200 °C to 80 °C.
Applications
- Chute and hopper liners
- Conveyor guide rails and wear strips
- Marine dock fender pads and rubbing strips
- Agricultural machinery slide plates
- Food processing machinery scrapers and guides
- Automotive and truck trailer rub blocks
Technical Specifications
| Property |
Value |
Test Method |
| Material |
100% virgin UHMWPE |
— |
| Density (g/cm³) |
0.93 – 0.94 |
ISO 1183 |
| Molecular weight |
≥4.5 million g/mol |
Internal method |
| Tensile strength (MPa) |
≥40 |
ISO 527 |
| Elongation at break (%) |
≥300 |
ISO 527 |
| Flexural modulus (MPa) |
≥800 |
ISO 178 |
| Compressive strength (MPa) |
≥20 |
ISO 604 |
| Hardness (Shore D) |
63 – 65 |
ISO 868 |
| Coefficient of friction (dry vs steel) |
0.10 – 0.15 |
ASTM D1894 |
| Water absorption (24 h, %) |
<0.01 |
ISO 62 |
| Continuous service temp. (°C) |
-200 to 80 |
Internal method |
| Short-term peak temp. (°C) |
95 |
— |
| Flammability |
HB |
UL 94 |
| Colour options |
Natural (white), Black, Green |
— |
Key Performance Data
- Static friction coefficient 0.10–0.15 against polished steel. UHMWPE wear pads eliminate stick-slip at low speeds.
- Abrasion resistance (sand-slurry test per ASTM G65): volume loss ≤80 mm³. Outlasts nylon 6 by 2–3× in sliding wear against abrasive materials.
- Water absorption <0.01%. No swelling in fresh or salt water. Dimensional change in 100% humidity is less than 0.1%.
- Notch-free impact strength. Remains ductile at -200 °C. Does not crack under hammer impact.
- FDA 21 CFR 177.1520 compliant grades available for food contact.
- UV-stabilized black grades available. Tensile strength retention after 5000 h QUV: >90%.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- FDA 21 CFR 177.1520 — compliant natural and green grades for food contact.
- Third-party test reports for tensile, abrasion, and friction coefficient available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Custom shape and size to drawing |
50 pcs per size |
5 working days |
USD 50 (refunded on order) |
| Material grade (virgin, UV, anti‑static) |
100 pcs |
7 working days |
USD 60 (refunded on order) |
| Private label packaging |
500 pcs |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Each pad wrapped in PE foam or VCI paper → PE bag → corrugated box.
- Boxes stacked on ISPM 15 heat-treated fumigated pallet (1.1 m × 1.1 m).
- Maximum pallet gross weight: 800 kg.
- 20GP container: approx. 10 pallets; 40HQ: approx. 20 pallets.
Quality Control
- Incoming inspection: UHMWPE sheet and rod density and molecular weight verified per batch.
- In-process: first-article inspection (FAI) with CMM on critical dimensions. Thickness and flatness checked every 50 pcs.
- Batch traceability: unique lot number marked on each part or package. Traceable to material batch and machining date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
10 working days |
| FCL (approx. 8–10 MT) |
15 working days |
| Trade term |
FOB Shanghai (EXW available) |
