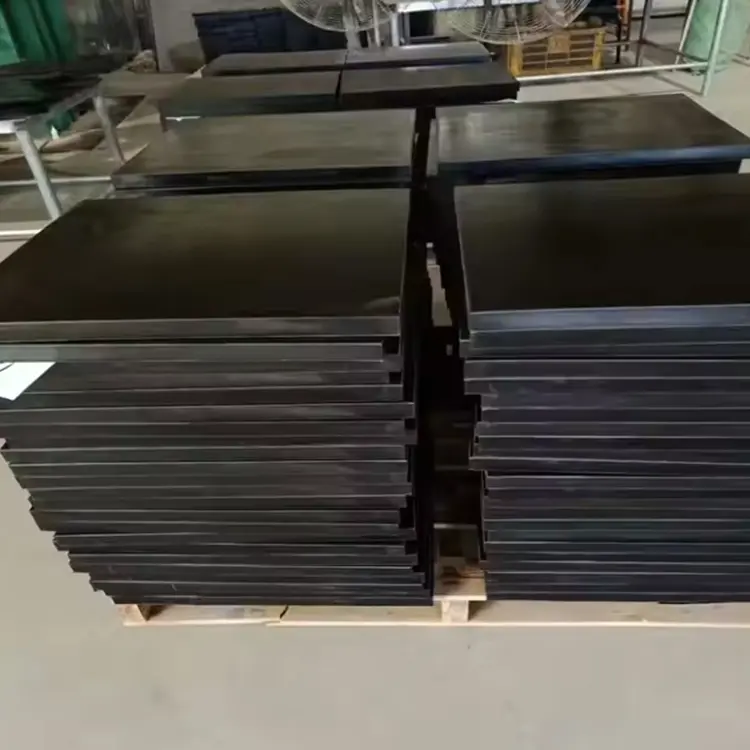

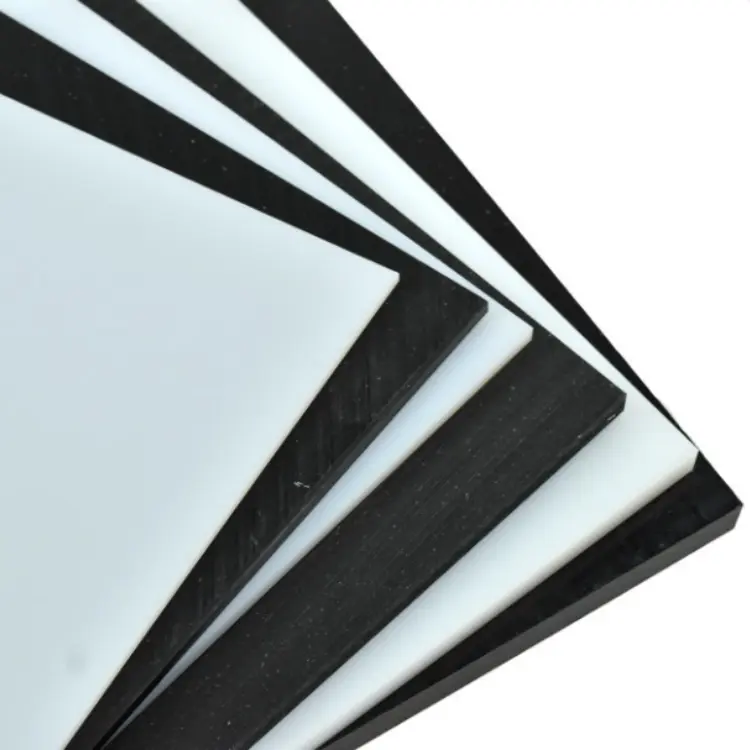

UHMW Plastic Sheet — also supplied as virgin UHMWPE sheet, UHMW polyethylene sheet, or UHMW plastic panel — is produced from 100% virgin ultra-high molecular weight polyethylene resin. Standard thicknesses run from 3 mm to 50 mm. Maximum panel size in a single piece is 4000 mm × 2000 mm. We cut to size by CNC routing or waterjet. Standard cut tolerance is ±0.5 mm; ±0.2 mm is available on request. Natural (white), black, and green (FDA) colours are stocked. Continuous operating temperature is -200 °C to 80 °C.
Applications
- Hopper, bin, and chute liners
- Conveyor wear strips and guide rails
- Marine fender pads and dock rubbing strips
- Food processing cutting boards and scrapers
- Chemical tank liners and flange gaskets
- Automotive rub blocks and trailer liners
Technical Specifications
| Property |
Value |
Test Method |
| Material |
100% virgin UHMWPE |
— |
| Density (g/cm³) |
0.93 – 0.94 |
ISO 1183 |
| Molecular weight |
≥4.5 million g/mol |
Internal method |
| Thickness (mm) |
3, 5, 6, 8, 10, 12, 15, 20, 25, 30, 40, 50 |
Steel tape |
| Standard panel size (mm) |
2000 × 1000, 4000 × 2000 |
Steel tape |
| Thickness tolerance ≤10 mm |
±0.3 mm |
— |
| Thickness tolerance 12–30 mm |
±0.5 mm |
— |
| Thickness tolerance 40–50 mm |
±0.8 mm |
— |
| Cut-to-size tolerance (CNC) |
±0.5 mm (standard); ±0.2 mm (fine) |
— |
| Tensile strength (MPa) |
≥40 |
ISO 527 |
| Elongation at break (%) |
≥300 |
ISO 527 |
| Flexural modulus (MPa) |
≥800 |
ISO 178 |
| Compressive strength (MPa) |
≥20 |
ISO 604 |
| Hardness (Shore D) |
63 – 65 |
ISO 868 |
| Coefficient of friction (dry vs steel) |
0.10 – 0.15 |
ASTM D1894 |
| Water absorption (24 h, %) |
<0.01 |
ISO 62 |
| Continuous service temp. (°C) |
-200 to 80 |
Internal method |
| Short-term peak temp. (°C) |
95 |
— |
| Flammability |
HB |
UL 94 |
Key Performance Data
- Coefficient of friction 0.10–0.15 against polished steel, dry. Bulk materials slide without sticking.
- Abrasion loss ≤80 mm³ (sand-slurry per ASTM G65). Outlasts steel by 3–5× in sliding wear against wet ores and aggregates.
- Water absorption below 0.01%. No swelling in fresh or salt water after 12 months submerged.
- Remains ductile at -200 °C. Does not crack under rock impact.
- FDA 21 CFR 177.1520 compliant. Natural and green grades suitable for food and grain contact.
- UV-stabilized black grades available for outdoor use.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- FDA 21 CFR 177.1520 — compliant natural and green grades.
- Third-party test reports for tensile, abrasion, and coefficient of friction available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Cut-to-size panels per drawing |
20 pcs per size |
5 working days |
USD 50 (refunded on order) |
| Colour or grade (UV, anti-static, FDA) |
200 kg |
7 working days |
USD 60 (refunded on order) |
| Private label packaging |
500 kg |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Sheets interleaved with PE foam → wrapped in PE film → edge-protected → packed in corrugated box or on flat pallet.
- Pallets are ISPM 15 heat-treated fumigated (1.1 m × 1.1 m).
- Maximum pallet gross weight: 800 kg.
- 20GP container: approx. 10 pallets; 40HQ: approx. 20 pallets.
Quality Control
- Incoming inspection: UHMWPE resin molecular weight and density verified per batch.
- In-process: thickness and cut dimensions laser-checked on first-off piece and every 25 pcs.
- Batch traceability: unique lot number marked on each sheet edge. Traceable to resin batch and production date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
10 working days |
| FCL (approx. 8–10 MT) |
15 working days |
| Trade term |
FOB Shanghai (EXW available) |
Downloads
Full UHMWPE Product Catalogue (PDF)
