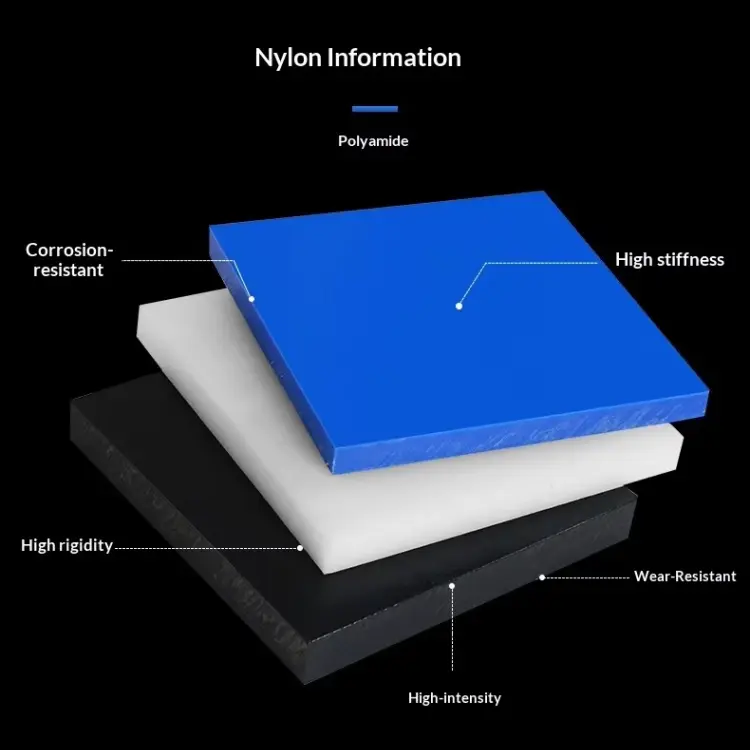

Cast Nylon Sheet — also referred to as cast nylon plate or PA6G sheet — is produced by casting caprolactam. The process creates a low‑stress, highly crystalline structure with better wear resistance than extruded nylon. Standard thicknesses run from 5 mm to 100 mm. Stock sheet size is 1000 mm × 2000 mm. Natural (ivory) and black are available. Continuous operating temperature is -40 °C to 90 °C.
Applications
- Wear pads and slide rails
- Guide strips and chain guides
- Food processing machine parts
- Gear blanks and sprockets
- Marine bearing pads and wear plates
- Chemical tank liners and scraper blades
Technical Specifications
| Property |
Value |
Test Method |
| Material |
PA6G (Cast Nylon) |
— |
| Thickness (mm) |
5, 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
Steel tape |
| Sheet size (mm) |
1000 × 2000 |
Steel tape |
| Thickness tolerance ≤10 mm |
±0.5 mm |
— |
| Thickness tolerance 12–30 mm |
±0.8 mm |
— |
| Thickness tolerance 40–60 mm |
±1.0 mm |
— |
| Thickness tolerance 80–100 mm |
±1.5 mm |
— |
| Density (g/cm³) |
1.15 – 1.16 |
ISO 1183 |
| Water absorption (23 °C, 24 h, %) |
0.6 |
ISO 62 |
| Tensile strength (MPa) |
80 |
ISO 527 |
| Flexural modulus (GPa) |
3.0 |
ISO 178 |
| Compressive strength (MPa) |
110 |
ISO 604 |
| Hardness (Shore D) |
78 |
ISO 868 |
| Coefficient of friction (dry vs steel) |
0.20 – 0.30 |
ASTM D1894 |
| Melting point (°C) |
220 ±5 |
ISO 3146 |
| Continuous service temp. (°C) |
-40 to 90 |
Internal method |
| Short-term peak temp. (°C) |
150 |
— |
| Flammability |
HB |
UL 94 |
Key Performance Data
- Wear factor below 3×10⁻⁶ mm³/N·m against steel at 0.5 m/s, 0.5 MPa. The cast nylon plate lasts 30 % longer than extruded nylon under identical conditions.
- Static friction coefficient 0.20–0.30. Runs dry at low speeds without stick‑slip.
- Water uptake just 0.6 % in 24 h. Dimensional change stays below 0.3 % at 50 % RH.
- Noise cut by 5–7 dB versus steel parts at 1000 rpm, measured at 1 m.
- No rust after 500 h salt spray (ASTM B117). Non‑magnetic.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- FDA 21 CFR 177.1500 — natural grades available for food contact.
- Third‑party test reports for tensile, wear rate, and density available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Non‑standard thickness or sheet size |
200 kg per size |
5 working days |
USD 50 (refunded on order) |
| Filled grades (Oil, MoS₂, solid lubricants) |
300 kg |
10 working days |
USD 80 (refunded on order) |
| Private label packaging |
500 kg |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Each sheet interleaved with PE foam → wrapped in PE film → packed in 5‑ply corrugated box or on flat pallet.
- Pallets are ISPM 15 heat‑treated fumigated (1.1 m × 1.1 m).
- Maximum pallet gross weight: 1000 kg.
- 20GP container: approx. 10 pallets; 40HQ: approx. 20 pallets.
Quality Control
- Incoming inspection: raw material melt flow index and density verified per batch.
- In‑line monitoring: thickness measured every sheet; flatness and surface checked visually.
- Batch traceability: unique lot number marked on each sheet edge. Traceable to raw material lot and casting date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
10 working days |
| FCL (approx. 8–10 MT) |
15 working days |
| Trade term |
FOB Shanghai (EXW available) |
