Product Overview

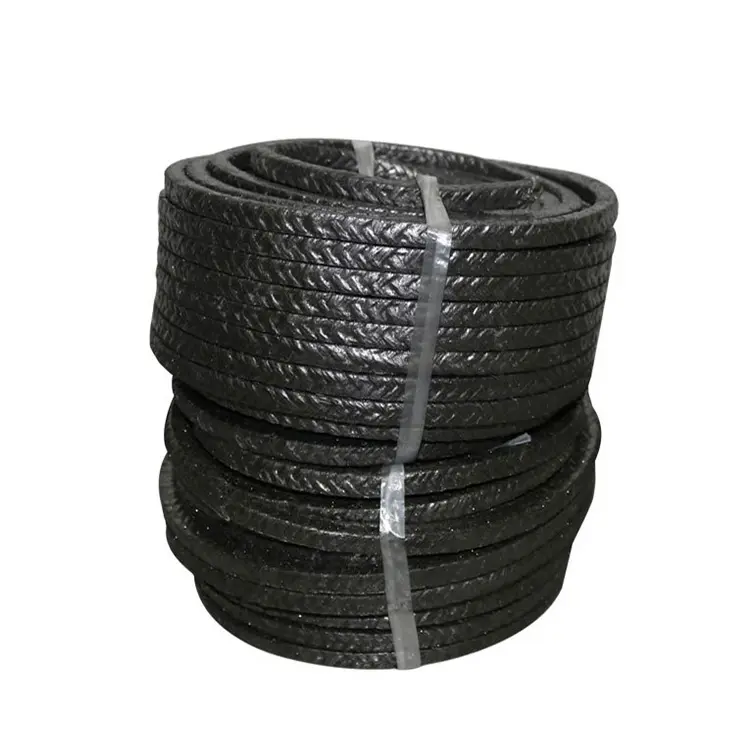

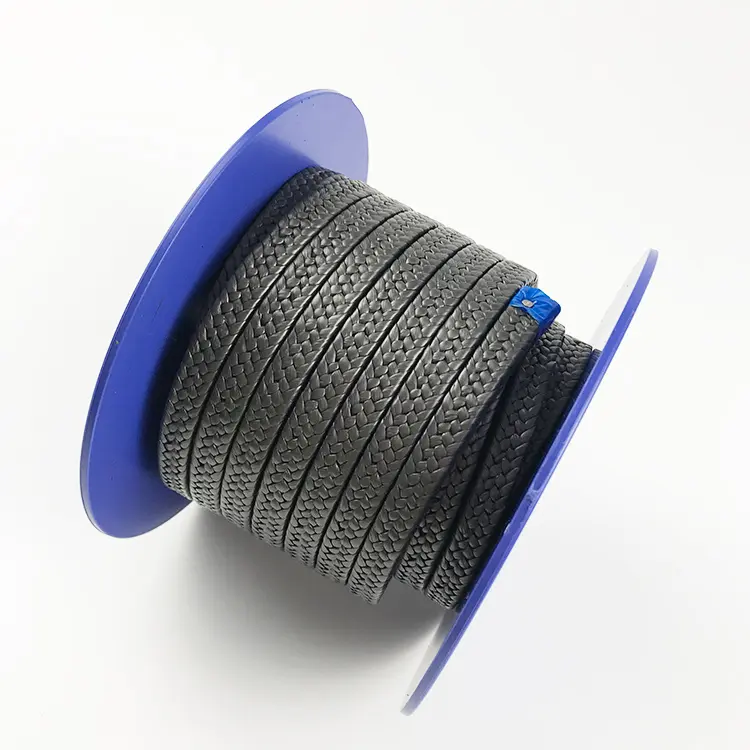

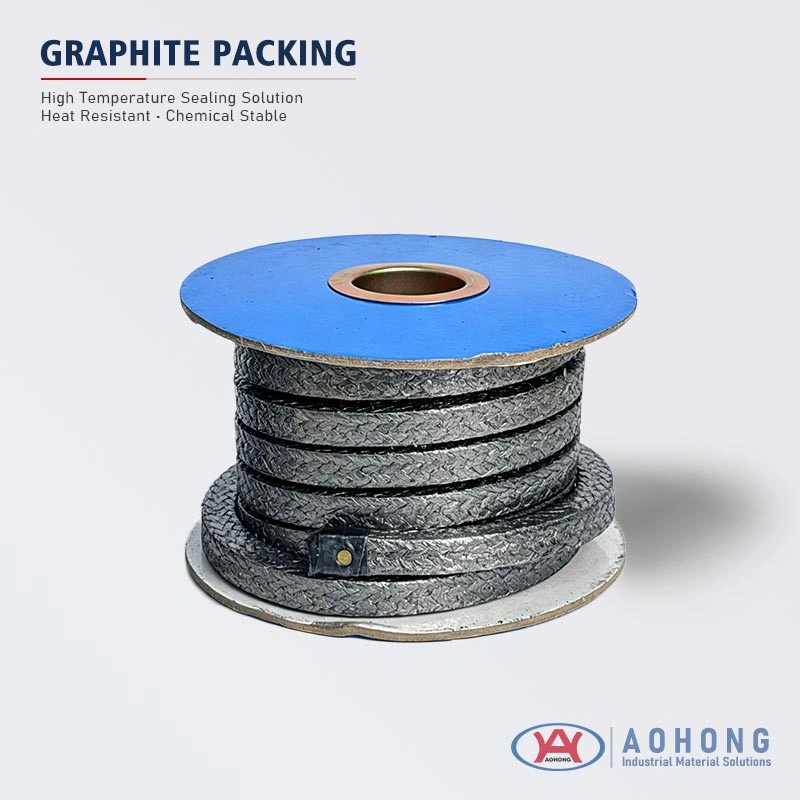

What is Graphite-Impregnated Packing?
Graphite impregnated packing is braided gland packing made from high-strength base yarns (aramid, PTFE, carbon, or mineral fibers) that are saturated or coated with natural/expanded graphite. The graphite impregnation delivers exceptional high-temperature performance, improved lubrication, low friction and enhanced chemical resistance. Commonly used in rotating and reciprocating shafts — pumps, valves, mixers and turbines.
Typical Constructions
-
Pure graphite yarn braid — excellent temperature capability, used where high temp and low friction are required.
-
Synthetic yarn + graphite impregnation (e.g., polyamide/aramid core with graphite matrix) — improved strength + graphite lubrication.
-
PTFE-core with graphite outer — chemical compatibility of PTFE with lubrication from graphite.
-
Graphite-resin hybrid — for abrasive or high-pressure duties where structural integrity is essential.
Key Features & Buyer Benefits
-
High temperature capability (sustained service in steam and high-heat processes).
-
Excellent lubrication and low running friction — reduces shaft/stem wear.
-
Good chemical resistance to hydrocarbons, most acids (consult datasheet for oxidizers).
-
Low leakage rates when installed correctly; suitable for vacuum and high-pressure duties.
-
Available as pre-formed rings, full spools (cut to length) and pump packing kits.
-
Easy retrofit replacement for older graphite or braided asbestos alternatives.
-
Export-ready packaging and customizable spool/ring options for OEMs and distributors.
Applications
-
Steam service in boilers and steam turbines.
-
Chemical & petrochemical pumps handling hydrocarbons.
-
Refinery and oil & gas rotating equipment.
-
High-temperature valves (gate, globe, check, ball) — pre-formed ring sets.
-
Hot oil and thermal fluid circulation pumps.
-
Heat exchangers, agitators, and industrial mixers.
-
Vacuum pumps and cryogenic variants (special low-ash graphite grades available).
Technical Specifications (typical / conservative ranges)
Important: Values vary by grade and impregnation level. Always request the material datasheet for exact performance and compatibility.
-
Base material options: Expanded natural graphite, graphite-impregnated PTFE, graphite-impregnated aramid, carbon fiber with graphite.
-
Construction: Square braid (8- or 12-strand) or multi-plait braid.
-
Temperature range: −200°C to +450°C (typical). Some pure graphite constructions tolerate brief excursions up to 550°C in non-oxidizing atmosphere.
-
Maximum recommended pressure: up to 20 MPa (200 bar) depending on gland design and application (consult application engineer).
-
Max shaft speed: up to 15 m/s (application dependent).
-
pH compatibility: broad (approx. pH 0–14 for many graphite-PTFE hybrids); unstable with strong oxidizers at elevated temperature—avoid concentrated nitric/perchloric acids without testing.
-
Electrical conductivity: graphite formulations are conductive — suitable for static dissipation.
-
Standard spool lengths: 5 m, 10 m, 20 m (custom lengths available).
-
Pre-formed valve sets: standard 3-ring kits matched by stem diameter.
-
Certs & testing: ISO 9001, batch material certificates, density/impregnation reports; leakage & run tests available on request.
Common Sizes (realistic & industry-standard)
Square cross-section sizes (metric / imperial):
-
3.0 mm (1/8″)
-
4.0 mm (5/32″)
-
5.0 mm (3/16″)
-
6.0 mm (1/4″)
-
8.0 mm (5/16″)
-
10.0 mm (3/8″)
-
12.0 mm (1/2″)
Valve pre-formed ring set examples (typical):
-
1/4″ stem → 3 rings × 3.0 mm
-
1/2″ stem → 3 rings × 6.0 mm
-
3/4″ stem → 3 rings × 8.0 mm
-
1″ stem → 3 rings × 10.0 mm
Advantages (why choose graphite impregnated packing)
-
High-temperature resilience — maintains sealing and lubrication at elevated temperatures.
-
Low friction & shaft protection — graphite film reduces wear on polished shafts and stems.
-
Broad chemical compatibility — suitable for many hydrocarbons and organic solvents.
-
Electrical conductivity — disperses static charge in pump/rotating systems.
-
Flexible forms — pre-formed rings for valves or spools for pumps enabling fast installation.
-
Longer runtime / reduced maintenance — lower downtime and lower total cost of ownership (TCO).
Material Comparison Table
| Property / Material | Graphite Impregnated Packing | PTFE Packing | Aramid (Kevlar®) Packing | Pure Graphite Packing |
|---|---|---|---|---|
| Temperature capability | High (up to ~450°C) | Moderate-High (up to ~260°C) | Moderate (up to ~250°C) | Very High (up to 550°C non-oxidizing) |
| Shaft wear | Low | Very low | Low–medium | Low |
| Chemical compatibility | Wide (hydrocarbons, solvents) | Excellent (most chemicals) | Good (hydrocarbons) | Good; careful with oxidizers |
| Abrasion resistance | Medium | Low | High | Medium |
| Conductivity (static dissipation) | Conductive | Non-conductive | Non-conductive | Conductive |
| Best for | High temp steam, petroleum | Corrosive chemicals, low friction | Abrasion + strength | Ultra high temp, inert atmospheres |
| Typical cost | Mid | Mid-high | Mid | Mid |
Note: Selection should be based on temperature, media (chemical compatibility), shaft speed and pressure. We provide application engineering guidance for final grade selection.

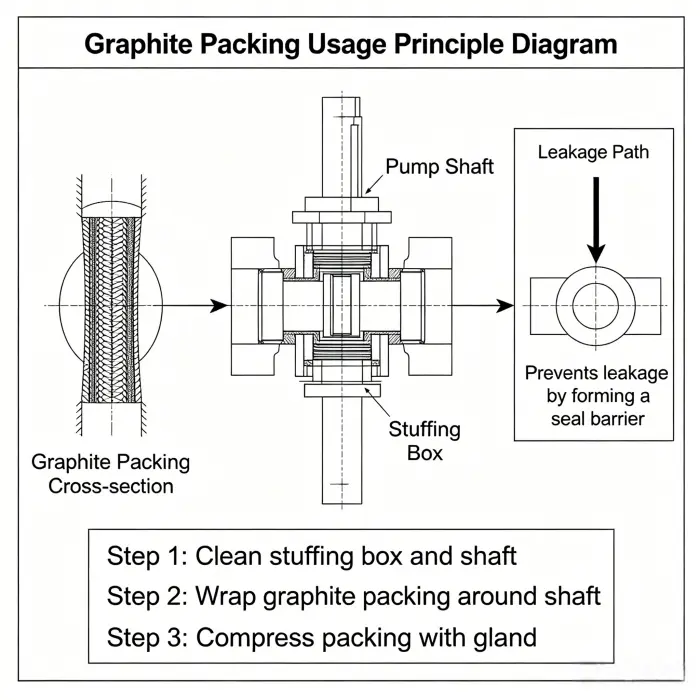

Installation & Best Practices
-
Inspect shaft/stem finish: recommended Ra ≤ 0.8 μm; no heavy scoring.
-
Use correct gland follower and even compression; tighten progressively while running to set.
-
For high temp/steam: allow controlled initial leakage during run-in, then re-tighten as packing seats.
-
Replace as full set; avoid mixing old and new rings or different materials.
-
For vacuum services, use graphite-PTFE hybrid for lower outgassing.
-
Provide gland cooling/flush for high pressure or slurry applications.
FAQ
Q: What is your MOQ for graphite impregnated packing?
A: Typical MOQ is 10–100 kg per SKU for standard grades. We accept smaller trial/sample orders—please contact sales with desired size/grade.
Q: How long does delivery take?
A: Stock items: 3–7 business days. Custom/impregnated pre-formed kits: 7–21 business days depending on volume and tooling.
Q: What shipping options are available?
A: We ship EXW/FOB/CIF/DDP. For samples we use courier (DHL/UPS/TNT). For bulk orders we usually ship by sea (FCL/LCL) or air if urgent.
Q: Can you supply pre-formed valve rings and pump packing kits?
A: Yes. We supply pre-formed valve ring sets, pump packing kits and OEM-labelled spools. Custom part numbering and packaging available.
Q: Can you customize impregnation, size and packaging?
A: Yes — graphite loading, base yarn, spool length, pre-form profiles and OEM packaging are customizable. Please provide application details (shaft diameter, temp, media) for best recommendation.
Q: Is graphite impregnation safe for oxidizing acids and steam?
A: Graphite excels in steam and many hydrocarbons. However, in strong oxidizing environments (e.g., fuming nitric acid, perchloric acid) at elevated temperature, graphite can oxidize — consult our application engineer for tested grade recommendations.
Q: Do you provide samples and test reports?
A: Yes — sample coils or valve kits are available. Material test reports, MSDS and batch certificates can be supplied with orders.
Q: How do I choose between graphite, PTFE and aramid packings?
A: Choose by application: high temperature/steam → graphite; highly corrosive chemistries → PTFE or PTFE-graphite hybrid; abrasive solids or high pressure where mechanical strength is required → aramid-graphite hybrids. We offer pre-sale engineering guidance.
Q: What payment methods do you accept?
A: T/T, L/C (sight), PayPal (samples/small orders). Terms negotiable for large contracts.
