Asbestos Gaskets — Historical Use, Risks & Technical Reference
What / Why — Asbestos gaskets were historically used for their exceptional heat resistance and compressibility. Due to well-documented health risks associated with asbestos fiber inhalation, many jurisdictions have banned or tightly regulated asbestos products. This page explains the material background, safety and regulatory considerations, legacy applications, and recommended non-asbestos alternatives for replacement and retrofit planning.
Executive Summary
Asbestos gaskets provided durable sealing in high-temperature and high-pressure services for decades. Today, because of health and legal concerns, they are largely phased out or strictly controlled. This page serves as a technical reference for legacy equipment managers, procurement, engineering and maintenance teams: identification, safe handling principles, regulatory checklist and recommended replacement materials.Important safety note: asbestos-containing materials are hazardous. Do not cut, sand, or disturb suspected asbestos without licensed professionals and required PPE. Follow local laws for testing, abatement and disposal.
What is an Asbestos Gasket?
An asbestos gasket is made by combining asbestos fibers (e.g., chrysotile) with binders and fillers to form a compressible sheet or molded shape used to seal flanges and joints. Historically, asbestos was used because of excellent thermal stability, compressive strength and resistance to many chemicals. However, disturbing asbestos-containing gaskets can release respirable fibers that pose serious long-term health risks.-

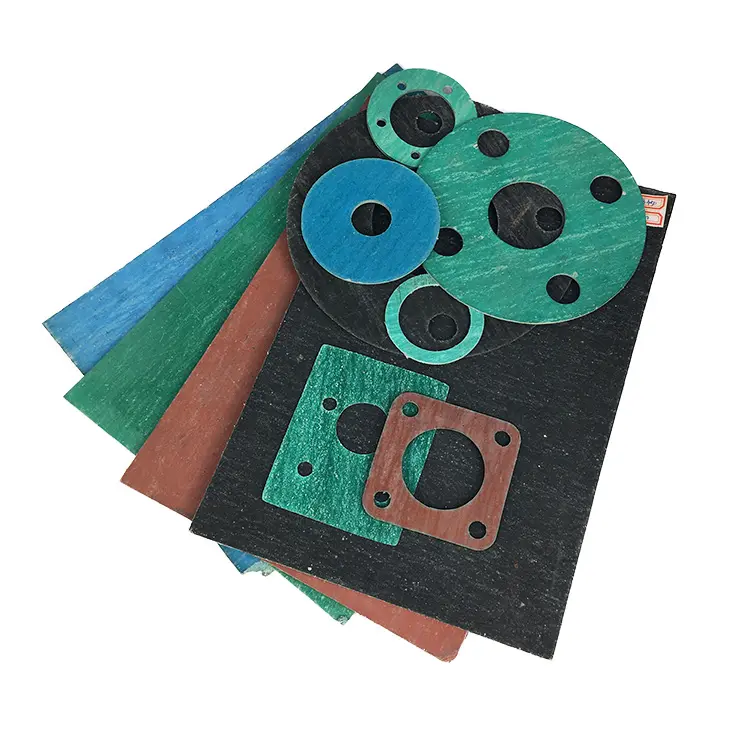

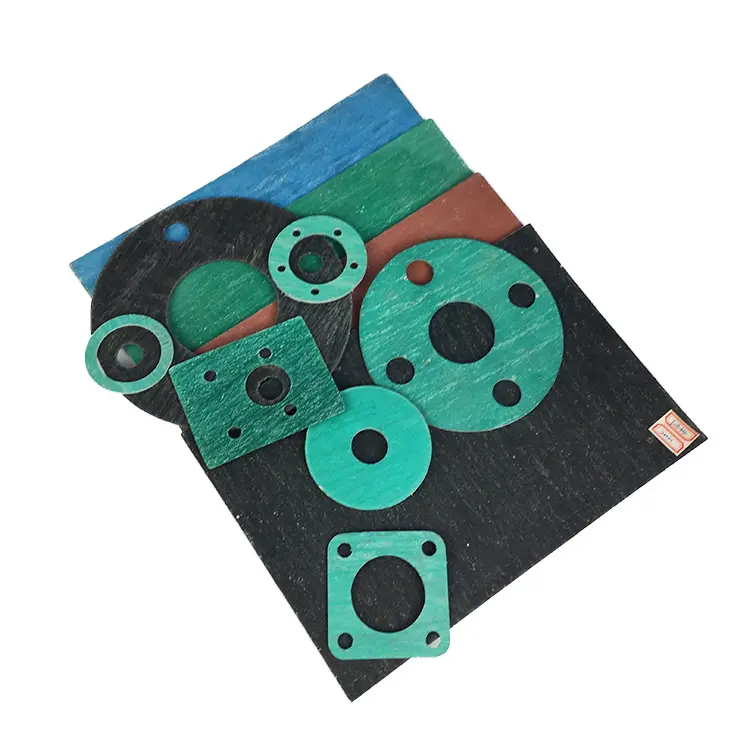

Asbestos GasketCompressed Asbestos Fiber Gaskets
Classification — Types & Historic Variants
By Asbestos Fiber
- Chrysotile (serpentine) — most common in gasket sheets
- Amphibole types (amosite, crocidolite) — historically used, higher hazard profiles
By Construction
- Asbestos sheet (flat sheets for die-cutting)
- Asbestos + graphite composites
- Asbestos rope & packings (older valve/pump seals)
By Application
- Boiler & steam systems
- Heat exchangers and high-temperature flanges
- Older industrial equipment and legacy installations
Selection Considerations & Regulatory Guidance
For facilities that may still contain asbestos gaskets, adopt a risk-based, compliance-first approach:- Legal check: confirm current local and national regulations — many countries ban manufacture/sale and set strict rules for removal/disposal.
- Material identification: have suspicious gaskets sampled and analyzed by accredited labs (PLM or other approved methods) before any work.
- Condition assessment: intact, undisturbed gaskets are lower immediate risk than friable or damaged materials.
- Use licensed abatement: removal, cutting or disposal must be performed by licensed asbestos contractors using wet methods, HEPA filtration and regulated waste controls.
- Prefer replacement: wherever feasible plan phased replacement with certified non-asbestos alternatives to eliminate ongoing risk and compliance burden.
Action checklist (quick): Identify → Test → Risk-assess → Engage licensed remover (if needed) → Replace with non-asbestos alternative → Update asset register.
Technical Parameters & Typical Historical Specifications
Reference values for legacy systems only.| Type | Temp Range (°C) | Max Pressure (bar) | Typical Thickness (mm) | Notes |
|---|---|---|---|---|
| Chrysotile asbestos sheet | -100 to 600 | ≤ 200 | 0.5 / 1.0 / 2.0 | High temp & steam — now regulated |
| Asbestos + graphite | -100 to 650 | ≤ 250 | 0.5 / 1.0 / 1.5 | Enhanced high-temp sealing; historically used in boilers |
Typical Sheet Sizes (historical)
| Sheet Size (mm) | Thickness | Notes |
|---|---|---|
| 1000 × 1000 | 0.5 — 2.0 | Common small-sheet format |
| 1500 × 1500 | 1.0 — 3.0 | Industrial pack sizes |
Technical Documents & Safe Handling Resources
Important downloads for legacy asbestos management, lab testing and replacement planning.Installation, Removal, Tightening & Maintenance (Legacy)
Warning: Do not attempt removal or cutting of suspected asbestos gaskets unless performed by licensed asbestos abatement professionals.- Containment: licensed abatement teams must establish containment, negative pressure and HEPA filtration when removing asbestos materials.
- Wet methods: use wetting to suppress dust during cutting and removal; avoid pneumatic tools that generate dust.
- Waste management: bagged and labeled asbestos waste must be handled and disposed according to local hazardous waste rules.
- Temporary measures: if immediate replacement isn’t possible, reduce disturbance, tag and schedule controlled removal.
- Replacement: when replacing with non-asbestos gaskets, ensure correct seating stress and flange prep to avoid leaks after retrofit.
Application Industries & Legacy Case Studies
- Power plants (boilers, steam systems)
- Petrochemical & refineries (older units)
- Shipbuilding & marine (legacy installations)
- Industrial manufacturing plants with vintage equipment
Performance Comparison & Material Selection Table
| Property | Asbestos Sheet (historic) | Flexible Graphite | PTFE | CNAS / Aramid |
|---|---|---|---|---|
| High temp tolerance | Very high | Very high | Moderate | Moderate |
| Chemical resistance | Good | Good | Excellent | Good |
| Permeation | Low | Low | Low | Medium |
| Health & regulatory risk | High / Controlled | Low | Low | Low |
| Recommended modern replacement | N/A | SS-faced graphite / graphite laminates | PTFE-faced laminates | CNAS (aramid blends) |
Common Failures & Troubleshooting — Legacy Context
- Leaking flange with old asbestos gasket
- Cause: Gasket degradation or flange distortion. Action: Isolate, test for asbestos before any intrusive repair; if asbestos present, engage licensed abatement and plan non-asbestos replacement.
- Friable or crumbling gasket
- Cause: Ageing, thermal cycling. Action: Mark area hazardous, restrict access and schedule licensed removal.
- Unexpected contamination during maintenance
- Cause: Accidental disturbance of asbestos. Action: Stop work, evacuate non-essential personnel, notify safety & compliance and engage licensed response.
FAQ — For Procurement, Engineering & Maintenance
Q: Are asbestos gaskets still allowed?
A: Regulations vary. Many countries ban manufacturing and sale; some allow existing installed materials to remain if undisturbed and managed. Always verify local law and consult your compliance officer.Q: How to confirm if a gasket contains asbestos?
A: Have a qualified sampler collect a small sample following containment procedures and send to an accredited laboratory for PLM or other approved analysis. Do not disturb suspected materials without PPE and containment.Q: What non-asbestos alternatives are best for steam service?
A: Stainless-steel faced flexible graphite, graphite laminates or high-temperature metal-faced solutions are commonly used replacements for steam and high-temperature services. Selection should be based on flange condition and operating parameters.
Contact our technical & compliance team for lab-testing referrals, licensed removal partners and non-asbestos replacement recommendations.
