Executive summary

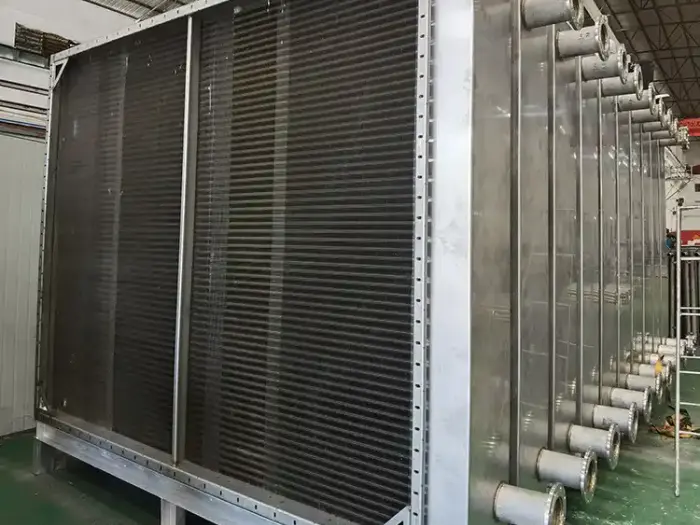

A mid-size industrial plant experienced recurring leakage across multiple flanged systems (heat exchangers, pumps, and piping). Repeated gasket changes and ad-hoc retorquing failed to deliver lasting results. A targeted program—combining root-cause analysis, upgraded gasket materials (kammprofile / spiral-wound / advanced PTFE sheets where appropriate), flange refurbishment, and disciplined installation procedures—eliminated chronic leaks, improved uptime, and reduced total sealing lifecycle costs. This case draws on field-proven practices and manufacturer case histories from leading sealing suppliers.
Background & problem statement
The facility operated mixed services (hot water/steam, hydrocarbons, and corrosive process fluids). Symptoms included:
-
recurrent small leaks at girth and bolted flanges,
-
frequent unplanned retorque/maintenance events, and
-
progressive flange corrosion and gasket extrusion.
These failures increased maintenance workload, caused product losses, and generated safety / environmental exposure risk. Initial repairs used “like-for-like” gasket replacements without addressing flange condition, joint loading, or medium-specific compatibility.
Root-cause analysis
A multi-disciplinary team (maintenance, process, reliability engineering, and a gasket specialist) identified several root causes:
-
Material mismatch: Many installed gaskets lacked sufficient creep resistance or chemical compatibility for the specific service (e.g., PTFE tapes used where transverse strength was required).
-
Insufficient bolt preload control: Inconsistent torque practices led to under- or over-compression—both damaging seal life. Controlled, staged torque and verified preload were lacking.
-
Poor flange condition: Corrosion, uneven face finish, and minor warpage spread load unevenly across the gasket, accelerating creep and extrusion.
-
Wrong gasket style for application: Low-load full-face tapes and thin skived PTFE were used in high-cycling or high-pressure joints; in some cases, semi-metallic or kammprofile/gasket designs would be more appropriate.
Engineering solution
The remediation program combined material, mechanical and procedural actions:
-
Gasket re-specification by service
-
High-pressure/thermal-cycling joints: spiral-wound or kammprofile gaskets chosen for resilience and recovery.
-
Corrosive chemical lines / purity-sensitive services: multiaxially expanded PTFE or engineered PTFE sheet grades selected for chemical resistance and reduced cold-flow.
-
Low-load or flange-sensitive applications: compressible gasket or sealant combinations were selected to accommodate flange imperfections without requiring extensive machining.
-
-
Flange remediation
-
Light machining or localized dressing to restore acceptable flatness and surface finish where feasible; for severely damaged flanges, new flange faces or ring repairs were specified.
-
-
Installation discipline
-
Standardized staged torque procedure (30% → 60% → 100% of target torque) with calibrated tools, thread lubrication control, and recorded bolt preload values. A measured run-in and a single retorque after thermal stabilization were mandated. This practice aligns with supplier case guidance showing improved sealing reliability when torque and preload are controlled.
-
-
Fit-for-purpose assemblies
-
Where flange sealing faces were irregular, a composite approach (compressible underlay + engineered top sheet or metal-reinforced gasket) was used to prevent extrusion and concentrate sealing at the bore.
-
Implementation steps
-
Audit and classify all problematic joints by service, pressure, and criticality.
-
Replace priority gaskets per new specification; remediate flange faces when required.
-
Install using calibrated torque tools and defined sequences; log each installation (gasket grade, batch, torque, installer).
-
Commission units with monitored run-in; perform single retorque after stabilization.
-
Monitor via scheduled inspections and leak detection (visual, sniffing, or pressure hold tests) and revise procedures as needed.
Outcomes & measurable benefits
After a 9-month rollout across the most critical systems, the plant recorded:
-
>90% reduction in repeat leakage events at remediated joints,
-
~40% decrease in unplanned sealing-related maintenance hours, and
-
lower lifecycle gasket costs due to fewer emergency replacements and reduced production losses.
These results mirror published industry case histories showing that correct gasket selection combined with flange and installation controls delivers durable, cost-effective sealing.
Lessons learned & best practices
-
Match gasket technology to service stresses (temperature, pressure, chemical compatibility, and cyclic loading). ePTFE offers excellent chemical resistance but requires correct grade and sufficient seating stress to avoid cold-flow failures.
-
Control bolt preload, not just torque. Use calibrated tools and document preload to ensure repeatability.
-
Repair flanges where practical. Even the best gasket cannot fully compensate for severely warped or pitted flange faces.
-
Use layered solutions (underlay + top gasket) on marginal flanges to prevent extrusion and extend life.
