Kynol Fiber Packing

Product Overview

What is Kynol fiber packing?

Kynol fiber packing is braided sealing material manufactured from Kynol (novoloid / phenolic) fiber yarns. Kynol is a commercial novoloid fiber with unique cross-linked phenol-aldehyde chemistry that provides high heat resistance, low thermal shrinkage, and broad chemical tolerance. In gland packing, Kynol yarns are typically pre-lubricated or impregnated with PTFE or other lubricants to combine sealing performance with low running friction.

Typical constructions & variants

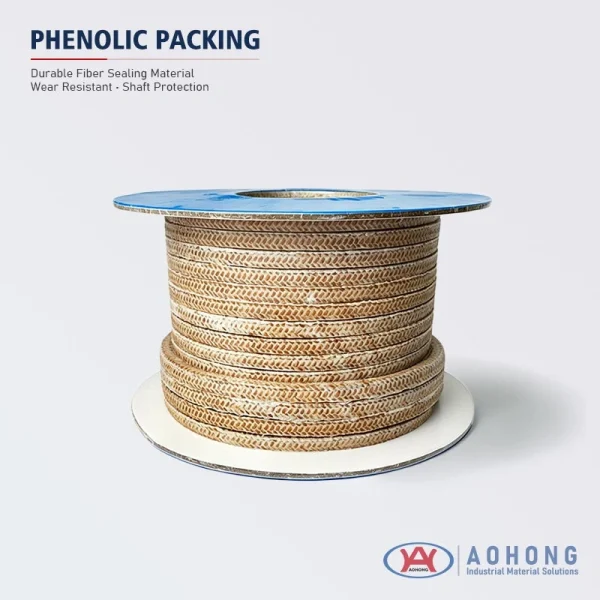

• 100% Kynol braided packing (PTFE-lubricated) — golden color, used where contamination must be minimized.

• PTFE yarns with Kynol corners — hybrid for abrasion resistance + chemical inertness.

• Reinforced Kynol (wire/aramid core) — for higher pressure/abrasive duties.

• Pre-formed valve rings & cut-to-length spools — ready for valve stems & pump shafts.

---

Key Buyer Benefits

• Excellent thermal stability — stable dimensions and low heat expansion under elevated temperature.

• Good chemical resistance — performs well against acids, solvents, oils and steam (avoid strong oxidizers without testing).

• Low friction (PTFE lubricated) — reduces shaft/stem wear and running temperature.

• Soft but strong — easy to cut/fit yet resists extrusion under pressure.

• Low contamination risk — suitable for pulp & paper, food-adjacent and chemical duties where graphite contamination is unacceptable.

---

Applications

• Centrifugal pumps handling chemicals, acids, solvents and process liquors.

• Reciprocating pumps, liquor pumps in pulp & paper.

• Valve stems (gate, globe, ball) — pre-formed ring sets.

• High temp steam and hot oil services where PTFE-based contamination is a concern.

• Abrasive slurries (with reinforced variants) and OEM pump spares.

---

Technical Specifications

Values are grade-dependent. Ask for grade-specific datasheet for final selection.

• Base fiber: Kynol® (novoloid / phenolic) fiber yarns.

• Common construction: square braid (8-strand or 12-strand) with PTFE lubricant/impregnation.

• Service temperature (typical): −200°C to +260°C (continuous) — some grades tolerate higher short excursions; always verify grade datasheet.

• Recommended pH range: approx. 1–13 for many grades (varies with impregnant).

• Maximum pressure (typical): up to ~20 MPa (200 bar) in suitable gland designs with reinforcement (consult engineering).

• Max shaft speed: up to ~15 m/s (application dependent).

• Electrical behavior: generally non-conductive (unless combined with conductive fillers).

• Standard spool lengths: 5 m, 10 m, 20 m (custom lengths available).

• Pre-formed valve kits: typically 3-ring sets matched to stem diameter.

• Quality & testing: ISO 9001 supplies, batch test reports and MSDS available on request.

---

Common Sizes (industry standard)

Square cross-section sizes (metric / imperial):

• 3.0 mm (≈1/8″)

• 4.0 mm (≈5/32″)

• 5.0 mm (≈3/16″)

• 6.0 mm (≈1/4″)

• 8.0 mm (≈5/16″)

• 10.0 mm (≈3/8″)

• 12.0 mm (≈1/2″)

Valve pre-formed ring examples:

• 1/4″ stem → 3 × 3.0 mm rings

• 1/2″ stem → 3 × 6.0 mm rings

• 1″ stem → 3 × 10.0 mm rings

Packaging: sealed coil/spool in polyethylene → carton → pallet. Pre-formed kits in inner film + box.

---

Advantages — Why choose Kynol fiber packing

1. Heat & dimensional stability — less thermal shrinkage than many organics.

2. Chemical robustness — good resistance to many acids, solvents and process fluids.

3. Low friction (PTFE-lubricated grades) — protects shafts and reduces energy loss.

4. Clean for sensitive processes — avoids graphite contamination where unacceptable.

5. Easy handling & installation — soft hand, easy to cut/fit with good recoverability.

---

Material Comparison Table

Note: final selection depends on media, temperature, pressure, shaft speed and acceptable contamination.

---

Installation & Best Practices

• Inspect shaft/stem finish — recommended Ra ≤ 0.8 µm and no deep scoring.

• Install full rings; stagger joints when using cut rings.

• Initial gland compression: snug, run briefly, then re-tighten in small increments to set leakage.

• Do NOT mix different materials or old/new rings.

• For slurry or abrasive duties, use reinforced Kynol grades or add lantern ring / flush.

• For steam: allow controlled run-in leakage, then re-adjust gland.

---

FAQ

Q: What is the minimum order quantity (MOQ)?

A: Typical MOQ is 10–100 kg per SKU. Small sample or trial orders can usually be arranged — contact sales with desired sizes and quantities.

Q: What is the lead time?

A: Stock grades: 3–7 business days. Custom PTFE-impregnation/pre-formed kits: usually 7–15 business days depending on volume and tooling.

Q: Do you provide samples and datasheets?

A: Yes — sample coils or pre-formed valve sets are available (buyer covers courier unless waived). Full datasheets, MSDS and batch certificates supplied on request.

Q: Can you supply pre-formed valve rings and pump kits?

A: Yes. We deliver pre-formed ring sets, cut-to-length spools and complete pump packing kits (including lantern rings where requested).

Q: Can you customize impregnation, reinforcement and packaging?

A: Yes — PTFE loading, core reinforcement (wire/aramid), spool length, labeling and OEM packaging can be customized. Please provide application details (temperature, media, pressure, shaft speed).

Q: Is Kynol fiber packing suitable for steam and high temperature?

A: Many Kynol grades are suitable for steam up to the specified temperature limit (typical continuous ~260°C); for high-pressure/high-temp steam services request engineering review and grade datasheet.

Q: How should I install to minimize shaft wear?

A: Use PTFE-lubricated Kynol grades for polished shafts, avoid over-tightening, and follow staged tightening/run-in steps. Replace full sets, not single rings.

Q: What payment methods are accepted?

A: Typical: T/T, L/C at sight; PayPal for small orders. Terms negotiable for large/repeat customers.
