Product Overview
What is Kevlar / Aramid Packing?

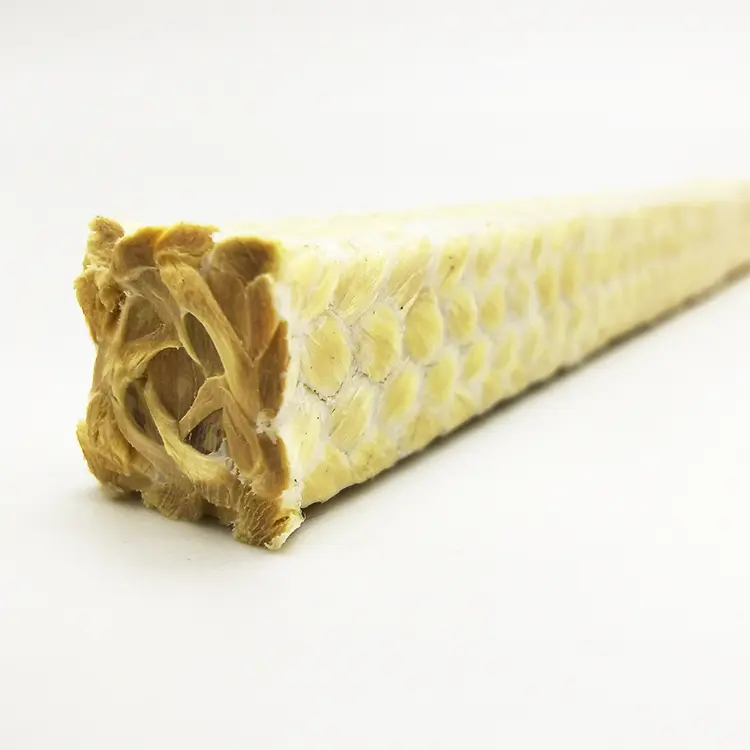

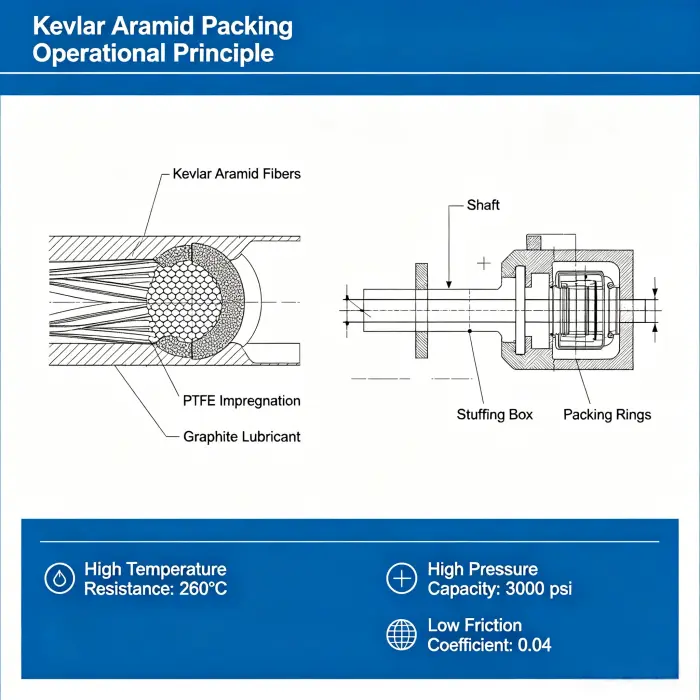

Kevlar/aramid packing is square-braided gland packing manufactured from para-aramid fibers (commonly marketed as Kevlar®) and stabilized with high-performance impregnants (PTFE, graphite, silicone or oil). It combines aramid’s mechanical strength with friction-reducing impregnants to deliver extended seal life, excellent extrusion resistance and low shaft wear for rotating and reciprocating equipment.
Typical Constructions
-
100% Aramid braided square (dry or oiled) — high mechanical strength
-
PTFE-impregnated aramid — low friction, wide chemical compatibility
-
Graphite-impregnated aramid — improved high-temperature performance and lubrication
-
Aramid reinforced with silicone/oil — reduced running-in, improved leak control
Key Features & Benefits
-
High tensile strength & abrasion resistance — resists extrusion and mechanical wear.
-
Low shaft/stem wear — PTFE impregnation reduces friction; suitable for polished shafts.
-
Long service life — extended mean time between repacks vs standard synthetic packings.
-
Wide chemical compatibility — suitable for oils, fuels, hydrocarbons and many process fluids (see chemical notes).
-
Temperature stability — performs in elevated temperatures (see specifications).
-
Available pre-formed rings & spools — standard sets for valves and cut lengths for pumps.
-
OEM & custom options — colors, impregnation levels, spool length, pre-cut ring kits.
Applications
Applications-
Centrifugal pumps (water, oil, chemical dosing)
-
Rotary pumps, gear pumps, diaphragm pumps (where compatible)
-
Slurry & dewatering pumps (with appropriate impregnation)
-
Gate, globe and ball valve stems (pre-formed valve rings)
-
Mixers, agitators and paddle shafts
-
Marine shaft seals and general industrial rotating shafts
Technical Specifications (typical / conservative ranges)
Note: final performance depends on impregnation, gland design, installation and operating conditions. Request datasheet for exact material grade.
-
Material: Para-aramid (Kevlar®) yarn ± PTFE/graphite/oil impregnation
-
Construction: Square braided / 8- or 12-strand braid
-
Temperature Range (typical): −40°C to +220°C for oiled aramid; up to ≈250°C for graphite/PTFE-impregnated grades (short excursions higher).
-
Recommended pH range: ~2–12 (varies by impregnant; avoid concentrated oxidizers such as fuming nitric acid).
-
Max recommended pressure (standard gland): up to 10 MPa (≈100 bar) in conventional set-ups; higher with specialized gland designs.
-
Max shaft speed: up to 15 m/s (depends on lubrication and gland cooling).
-

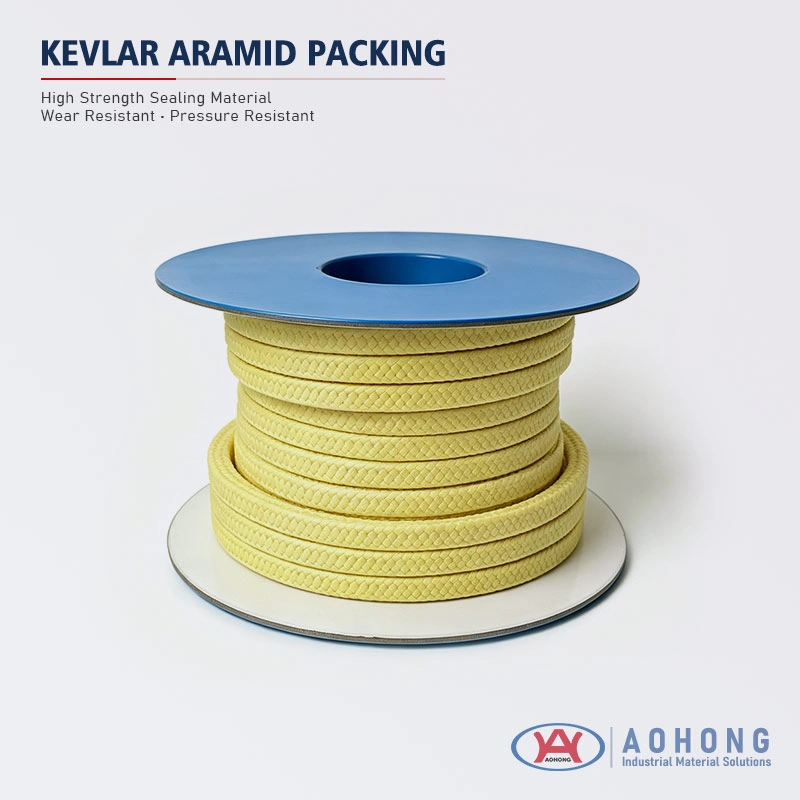

Standard spool lengths: 5 m, 10 m, 20 m (custom lengths available).
-
Pre-formed valve ring sets: Usually supplied as 3-ring sets by ID (see sizing).
-
Packing density / porosity: factory controlled by impregnation level.
-
Standards & testing: Available material test reports, physical/chemical test certificates, leakage & run-time test data (on request).
Common Sizes (metric & imperial)
Standard square cross-sections (metric / imperial):
-
3.0 mm (1/8″)
-
4.0 mm (5/32″)
-
5.0 mm (3/16″)
-
6.0 mm (1/4″)
-
8.0 mm (5/16″ ~ 3/8″ depending on finish)
-
10.0 mm (3/8″ ~ 7/16″)
-
12.0 mm (1/2″)
Valve pre-formed ring sets (examples):
-
For ¼” stem: set of 3 x 3.0 mm rings
-
For ½” stem: set of 3 x 6.0 mm rings
-
For 1″ stem: set of 3 x 8.0–10.0 mm rings
Advantages (why choose Kevlar/Aramid packing)
-
Extended lifetime — lower replacement frequency → lower downtime.
-
Low extrusion & high compressive strength — good for high-pressure pumps.
-
Superior abrasion resistance — suitable for moderately abrasive fluids (with correct impregnation).
-
Low friction option (PTFE) — minimizes shaft wear and running temperature.
-
Customizable — impregnation, spool length, pre-formed rings for valves.
-
Cost-effective in lifecycle terms — higher upfront cost often offset by longer uptime.
Material Comparison Table
| Property / Material | Kevlar/Aramid Packing | PTFE (pure) Packing | Graphite Packing | Carbon / Graphite-graphite |
|---|---|---|---|---|
| Abrasion resistance | High | Low | Medium-High | High |
| Shaft wear | Low (with PTFE impreg.) | Very low | Moderate | Moderate |
| Temperature capability | Up to ~250°C (impregn.) | Up to ~260°C (depending) | Very high (>400°C) | Very high |
| Chemical compatibility | Wide (good with hydrocarbons) | Excellent (most chemicals) | Good (oxidizers risk) | Good |
| Suitability for slurry | Good (with right impregnation) | Poor | Good | Good |
| Cost (material) | Mid | Mid-high | Mid | Mid |
| Typical use | Pumps/valves where abrasion + low friction required | Corrosive fluids, low friction requirement | High T, steam, oxidizing environments | High T, high abrasion |
Takeaway: Kevlar/aramid packing excels where mechanical strength, abrasion resistance and low shaft wear are required. For extreme oxidizers or very high temperatures, graphite or carbon grades may be preferred. For the lowest friction in aggressive chemicals, PTFE-only packings can be considered.
Installation & Best Practices
-
Always inspect shaft/stem surface (recommended surface finish Ra ≤ 0.8 μm for pumps).
-
Use proper gland follower; set initial compression loosely, then tighten progressively while running to achieve leakage control.
-
Replace packing as full sets (do not mix old/new of different materials).
-
For first run, expect a short run-in leak; re-adjust gland after stable operation.
-
For slurry or heavy particles, consider frequent flushing / lantern ring / packing box cooling.
FAQ
Q: What is the minimum order quantity (MOQ)?
A: Typical MOQ is 20 kg or ~500 valve sets, but we accept smaller trial orders for first-time customers — contact sales for exact MOQ by grade.
Q: How long is the production lead time?
A: Stock items ship in 3–7 days. Custom grades, PTFE/graphite impregnation or pre-formed kits: 7–15 business days depending on volume.
Q: What shipping terms do you offer?
A: We ship EXW / FOB / CIF. For small samples we can send by courier (DHL/UPS/TNT). Full documentation provided.
Q: Can you supply pre-formed valve rings and pump packing kits?
A: Yes — pre-formed ring sets for valves and full pump packing kits (cut to length) are available. OEM packaging and private labeling supported.
Q: Can you customize impregnation and spool length?
A: Yes — PTFE, graphite, oil or hybrid impregnation levels can be specified. Spool lengths (5/10/20 m) and pre-cut sets are standard options.
Q: Is this packing safe for slurry pumps?
A: With proper impregnation and gland flushing, aramid packing is suitable for many slurry duties. For highly abrasive slurries we recommend consulting our applications engineer for the optimal grade.
Q: How do I request a sample or datasheet?
A: Click Request Sample or Download Datasheet on the product page — provide shaft diameter, temperature, media and duty cycle for best recommendation.
Q: What payment methods are accepted?
A: T/T, L/C at sight, PayPal for small orders. Specific terms negotiable for large contracts.
