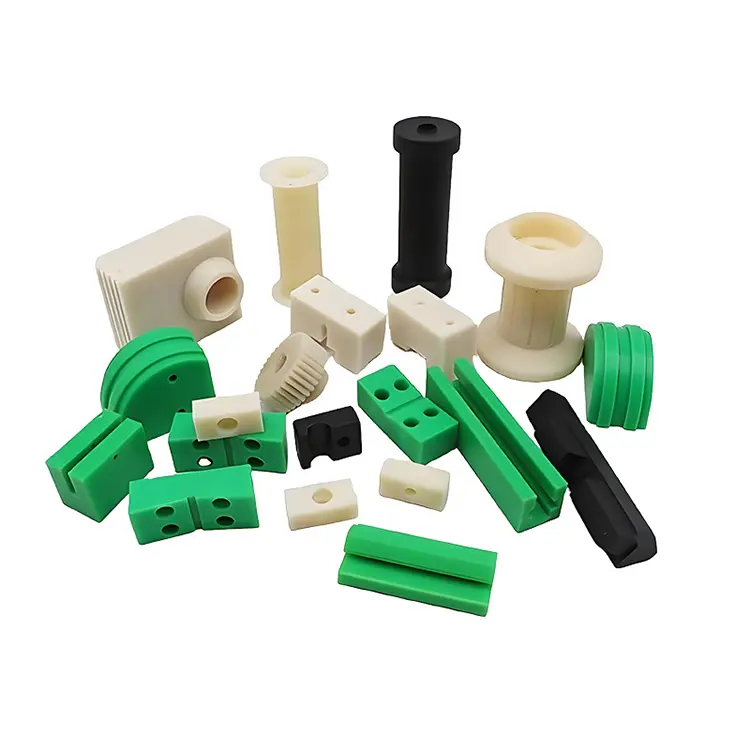

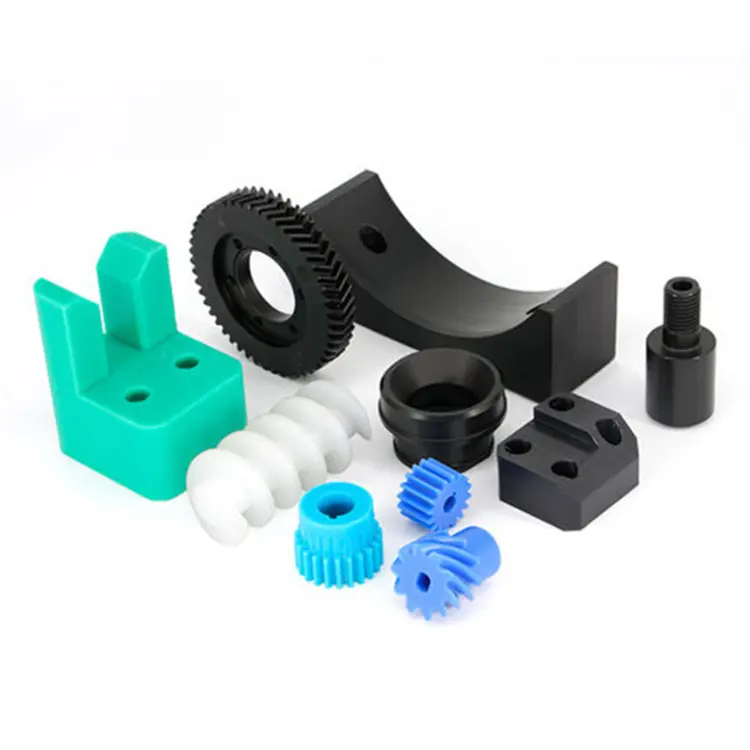

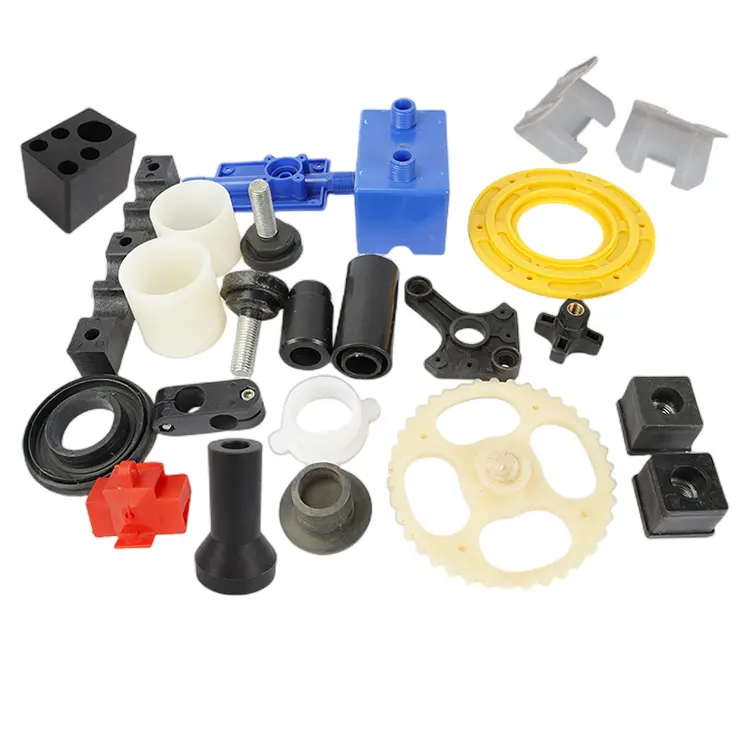

Anti-Static UHMWPE Parts are machined from ESD-grade ultra-high molecular weight polyethylene sheet and rod. Also referred to as ESD UHMWPE parts or anti-static UHMWPE machined components. Surface resistivity is 10⁶–10⁹ Ω per IEC 61340-2-3. CNC milling and turning from stock up to 2000 mm × 1000 mm × 80 mm. Standard dimensional tolerance is ±0.10 mm. Tighter tolerances to ±0.05 mm quoted on request. Standard colours are black and grey. Continuous operating temperature is -50 °C to 80 °C.
Applications
- Semiconductor wafer handling fixtures and trays
- Electronics assembly jigs and PCB transport rails
- Cleanroom equipment guides and wear strips
- Explosive atmosphere conveyor components (ATEX zones)
- Powder handling chute liners and hopper inserts
- Medical device assembly fixtures and spacers
Technical Specifications
| Property |
Value |
Test Method |
| Material |
Anti-static UHMWPE |
— |
| Density (g/cm³) |
0.94 – 0.96 |
ISO 1183 |
| Surface resistivity (Ω) |
10⁶ – 10⁹ |
IEC 61340-2-3 |
| Static decay time (<2 s) |
5000 V → 50 V |
FTMS 101C |
| Tensile strength (MPa) |
≥35 |
ISO 527 |
| Flexural modulus (MPa) |
≥700 |
ISO 178 |
| Hardness (Shore D) |
62 – 65 |
ISO 868 |
| Coefficient of friction (dry vs steel) |
0.12 – 0.18 |
ASTM D1894 |
| Water absorption (24 h, %) |
<0.01 |
ISO 62 |
| Continuous service temp. (°C) |
-50 to 80 |
Internal method |
Key Performance Data
- Surface resistivity 10⁶–10⁹ Ω prevents electrostatic charge accumulation without relying on humidity.
- Static decay time under 2 seconds from 5000 V to 50 V. ESD property is permanent and volume-distributed.
- Coefficient of friction 0.12–0.18 against steel. No stick-slip. Protects sensitive components from mechanical damage.
- Abrasion loss ≤90 mm³ (sand-slurry per ASTM G65). Outlasts nylon and acetal in sliding contact by 2–3×.
- Water absorption <0.01%. No change in surface resistivity after 96 h at 40 °C / 95% RH.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- IEC 61340-5-1 — meets ESD control programme requirements.
- Third-party test reports for surface resistivity and static decay available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Custom part to drawing |
50 pcs per size |
5 working days |
USD 50 (refunded on order) |
| Resistivity range adjustment |
200 kg |
10 working days |
USD 100 (refunded on order) |
| Private label packaging |
500 pcs |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Each part sealed in anti-static PE bag → partitioned corrugated box.
- Boxes stacked on ISPM 15 heat-treated fumigated pallet (1.1 m × 1.1 m).
- Maximum pallet gross weight: 800 kg.
- 20GP: approx. 10 pallets; 40HQ: approx. 20 pallets.
Quality Control
- Incoming inspection: resistivity-tested UHMWPE sheet and rod verified per batch.
- In-process: surface resistivity spot-checked on 5% of parts per shift per IEC 61340-2-3.
- Batch traceability: unique lot number marked on each part. Traceable to material batch and machining date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
10 working days |
| FCL (approx. 8–10 MT) |
15 working days |
| Trade term |
FOB Shanghai (EXW available) |
