Product Overview

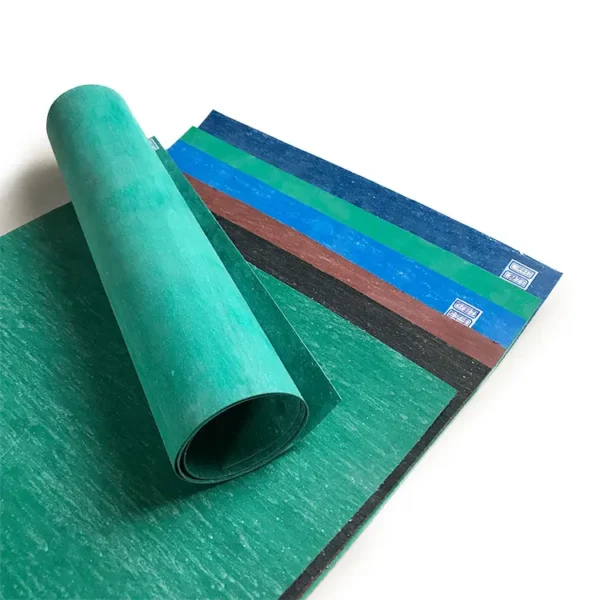

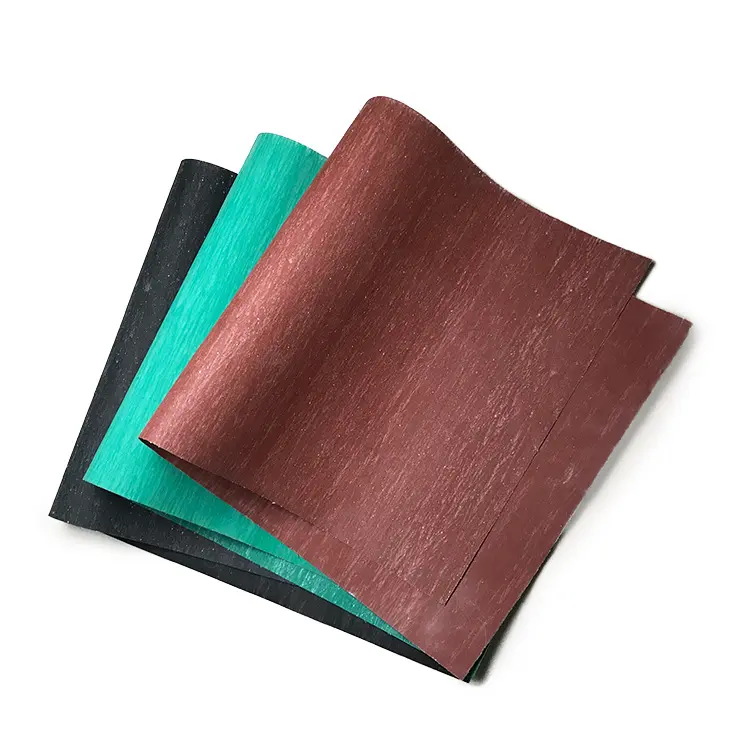

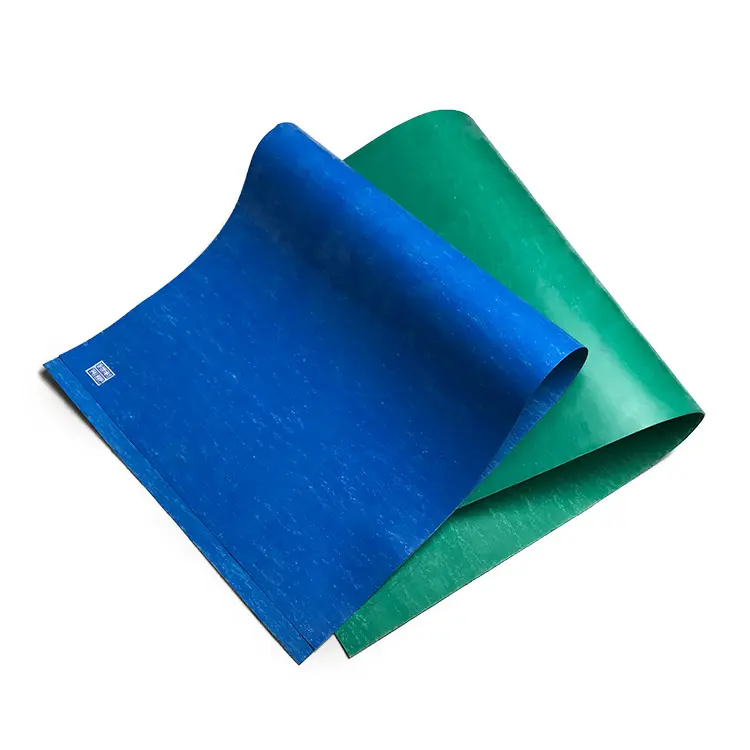

Oil resisting asbestos rubber sheet (also known as oil resistant gasket sheet, oil-proof asbestos rubber sheet, or oil resistant sealing sheet) is a compressed fiber-reinforced elastomer sheet used for cutting industrial gaskets.
It is engineered for sealing applications involving oil-based media, where conventional rubber sheets may degrade or lose sealing integrity.
Key Features
- Good resistance to mineral oil, lubricants, and fuel exposure
- Stable sealing performance under static compression
- Suitable for gasket cutting and flange sealing
- Good mechanical strength and durability
- Easy to punch, cut, and fabricate into custom gasket shapes
- Cost-effective industrial sealing material
Applications
Oil resisting asbestos rubber sheet is commonly used in the following industries and equipment:
- Oil pipelines and petrochemical systems
- Automotive engines and transmission systems
- Industrial machinery sealing parts
- Pumps, valves, and compressors
- Flange gasket sealing in oil and fuel environments
- Mechanical equipment exposed to lubricating oils
Material Composition
This oil resistant gasket sheet is typically manufactured using a blend of reinforcing fibers and oil-resistant rubber binders, formed under compression and vulcanization.
Main components:
- Reinforcing fibers (asbestos fiber or equivalent industrial fiber structure depending on specification requirements)
- Oil-resistant rubber binder system
- Inorganic fillers for improved stability and sealing performance
Product Advantages
- Reliable sealing in oil and hydrocarbon environments
- Maintains integrity under compression load
- Suitable for long-term static sealing applications
- Compatible with various industrial flange standards
- Reduces leakage risk in oil system joints
- Adaptable for customized gasket production
Technical Parameters
Key Performance Indicators
| Property | Specification (Industrial Standard Range / Description) |
|---|---|
| Oil resistance | Suitable for ASTM No. 1 / No. 3 oil exposure (general mineral oil resistance level used for gasket sheets) |
| Compressibility | 7% – 17% (typical for asbestos rubber sheet gasket materials under ASTM F36/F36M test method reference range) |
| Recovery | ≥ 40% (typical rebound performance for compressed fiber rubber sheets) |
| Density | 1.8 – 2.1 g/cm³ (standard density range for asbestos rubber gasket sheets) |
| Temperature range | -30°C to 300°C (depending on formulation and binder system; common industrial grade range) |
| Working pressure | ≤ 5 MPa (typical static sealing gasket application range) |
| Thickness tolerance | ±0.2 mm to ±0.5 mm (depending on sheet thickness class) |
Standard Sheet Sizes
| Item | Specification |
|---|---|
| Standard sheet size | 1000 × 1500 mm / 1500 × 1500 mm / 1500 × 2000 mm |
| Thickness range | 0.5 mm / 1.0 mm / 1.5 mm / 2.0 mm / 3.0 mm / 4.0 mm / 5.0 mm |
| Custom thickness | 0.3 mm – 6.0 mm (industrial production range) |
| Cutting format | Gasket die-cut, CNC cutting, punch cutting |
| Edge condition | Standard trimmed sheet edge / cut-to-size available |
Processing & Fabrication
Oil resisting asbestos rubber sheet can be processed using standard gasket manufacturing methods:
- Die cutting
- Punching
- CNC gasket cutting
- Custom shape fabrication
It is suitable for both standard flange gaskets and non-standard sealing parts.
Quality & Performance Notes
- Designed for static sealing applications only
- Recommended for use within specified pressure and temperature conditions
- Selection of thickness and grade should match working media and flange requirements
