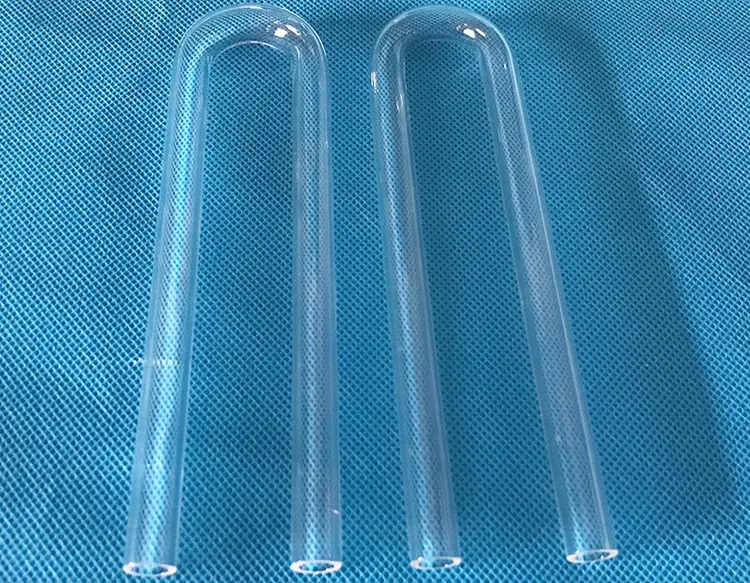

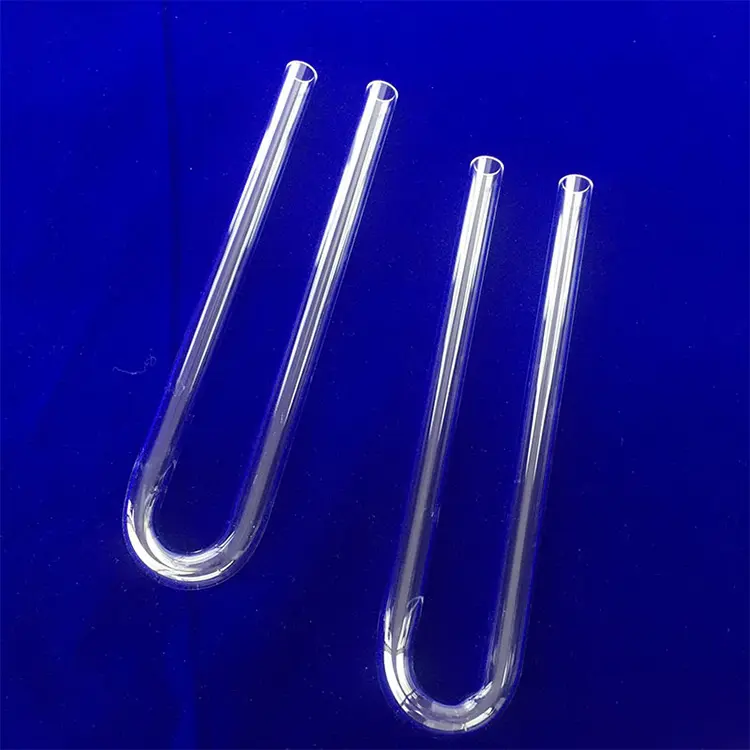

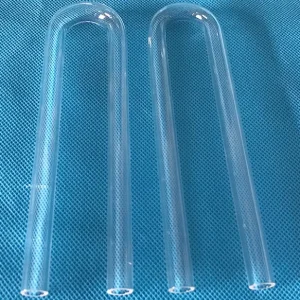

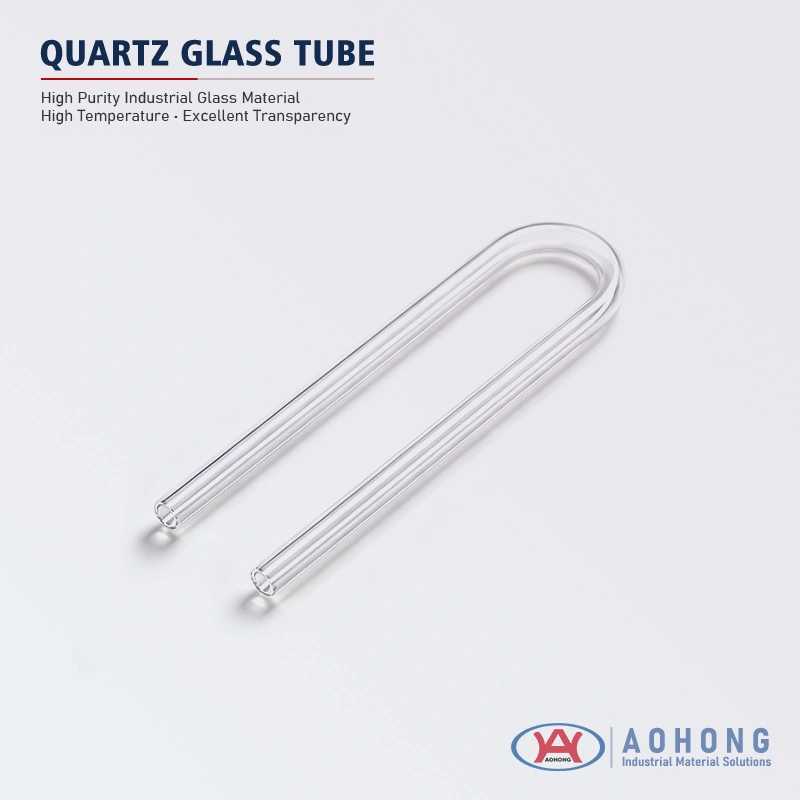

A quartz U-shaped tube (also referred to as a U-bend quartz tube, bent quartz glass tube, or fused silica U-tube) is a precision-engineered component formed from high-purity quartz glass into a U configuration, featuring a curved center with two parallel arms. It is primarily used in high-temperature fluid handling, chemical processing, and optical transmission applications where exceptional thermal stability, chemical inertness, and UV transparency are required.
Product Overview & Key Applications
Quartz U-shaped tubes serve critical roles across multiple industries, enabling reliable performance in environments where standard materials fail.
Laboratory & Analytical Equipment: Widely used in gas chromatography, distillation setups, sample storage, and fluid transfer systems. The open-bend configuration facilitates continuous flow, while closed-end designs provide containment for sealed reactions and thermal testing.
Semiconductor Manufacturing: Utilized in high-temperature processing and heating equipment for semiconductor materials, providing a stable process environment. The tubes are employed as process tubes, carriers, and components within diffusion furnaces.
Chemical Processing Systems: Inert to most acids and alkalis (excluding hydrofluoric acid), these tubes are ideal for corrosive fluid transport and chemical reaction vessels. Acid resistance is 30× superior to ceramic materials and 150× more resistant than stainless steel.
Thermal Processing & Heat Exchangers: The U-shape design enables efficient thermal transfer and uniform heat distribution in heating loops, thermal chambers, and heat exchange systems.
UV & Optical Instrumentation: With broad spectrum transmission from UV through infrared wavelengths, quartz U-shaped tubes are used in UV disinfection systems, optical sensors, and scientific instrumentation.
Photovoltaic Industry: Applied in heat treatment and annealing processes for solar cell manufacturing, where high purity and thermal stability are essential.
High-Temperature Process Equipment: Suitable for furnaces, heating elements, and industrial ovens operating at elevated temperatures.
Material & Specifications
Material Composition
Quartz U-shaped tubes are manufactured from high-purity fused silica (SiO₂ ≥ 99.99%) . This material offers exceptional thermal resistance, minimal thermal expansion, and outstanding optical clarity. Available in both transparent (clear) and opaque (milky white) variants depending on application requirements.
-
Clear Quartz: Provides >92% light transmission across UV to IR spectrum — ideal for UV lamps, optical monitoring, and fiber optic applications.
-
Opaque Quartz: Optimized for infrared heating applications with controlled opacity for specific thermal emission requirements.
Chemical Resistance
Fused silica quartz is chemically inert to most acids and alkalis. Limitation: Not recommended for hydrofluoric acid exposure.
Manufacturing & Quality Control
-
Manufactured to precise tolerances with rigorous quality control at every stage
-
Full material traceability from raw silica to finished product
-
Precision testing protocols verify dimensional, optical, and thermal accuracy
Technical Specifications
| Parameter | Specification |
|---|---|
| SiO₂ Purity | ≥ 99.99% |
| Density | 2.2 g/cm³ |
| Max. Continuous Operating Temperature | 1250°C |
| Short-Term Temperature Tolerance | up to 1450°C |
| Softening Point | 1730°C |
| Coefficient of Thermal Expansion | (5.3–5.8) × 10⁻⁷/°C |
| Light Transmittance (Visible) | > 92% (at 1.0 mm thickness) |
| UV Transmission | 80–90% |
| Compressive Strength | 1100 MPa |
| Young‘s Modulus | 72,000 MPa |
| Mohs Hardness | 5.5–6.5 |
Dimensional Range & Customization
Quartz U-shaped tubes are available in a wide range of standard and custom dimensions to meet specific application requirements.
| Dimension | Available Range | Notes |
|---|---|---|
| Outer Diameter (OD) | 1 mm – 800 mm | Customizable to specification |
| Wall Thickness | 0.5 mm – 10 mm | Precision-controlled |
| Tube Length (per arm) | Custom | Based on application needs |
| Bend Radius | Custom | Standard: 20 mm, 30 mm, 50 mm |

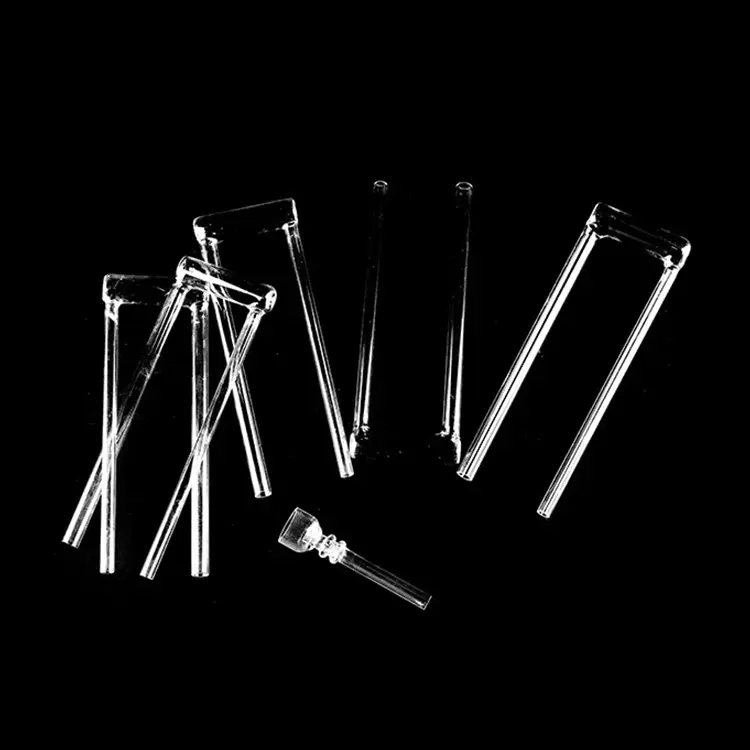

| End Configuration | Open-Bend / Closed-Bend / J-Bend | Application-dependent |
Common Sizes Reference: Standard quartz U tubes are frequently supplied in outer diameters ranging from 6 mm to 25 mm with wall thicknesses from 1 mm to 3 mm. Larger diameters up to 600 mm with wall thicknesses of 1.1 mm to 5.5 mm are available for industrial-scale applications.
Customization Options: Bespoke bend radii, specific arm lengths, end treatments (flame polished, ground), and surface finishes are available. Engineering consultation is recommended for non-standard configurations.
Performance Advantages
-
Exceptional Thermal Stability: Maintains structural integrity at continuous temperatures up to 1250°C with short-term tolerance to 1450°C. Ultra-low thermal expansion ensures dimensional stability under rapid temperature changes.
-
Superior Chemical Inertness: Resistant to virtually all acids and alkalis except hydrofluoric acid, with 150× better durability than stainless steel in corrosive environments.
-
Excellent Optical Transmission: Transmits >92% visible light and 80–90% UV radiation, making it ideal for UV disinfection, optical sensing, and spectroscopic applications.
-
High Electrical Insulation: Provides 10,000× higher electrical resistance than conventional glass, suitable for high-voltage and specialized electrical environments.
-
Thermal Shock Resistant: Maintains integrity when rapidly cooled from 1100°C, enabling use in demanding thermal cycling applications.
-
Precision Manufacturing: Tight dimensional tolerances ensure consistent performance and seamless integration into existing systems.
Certifications & Compliance
Products are manufactured under quality management systems and comply with relevant international standards:
-
ISO 9001 Certified Manufacturing: Consistent quality and traceability throughout production.
-
RoHS Compliant: Materials meet RoHS directive requirements for hazardous substance restrictions.
-
Full Material Traceability: Documented from raw silica to finished quartz U tube.
Application Example: Thermal Processing Optimization
In compact thermal processing chambers used for aerospace material testing and microelectronics, space constraints and uniform heat distribution are critical design challenges. U-shaped quartz tubes provide a compact footprint while maintaining high thermal uniformity and infrared emission efficiency.
Key performance metrics from validation testing include a 38% reduction in linear space requirements compared to dual straight-tube configurations in 300 mm chambers, and ±3°C temperature deviation across the 180° bend zone. Component count is reduced by eliminating the need for additional reflectors and coupling joints per unit, simplifying system assembly.
Note: For specific technical documentation, test reports, or detailed case studies relevant to your application, please contact our technical team.
