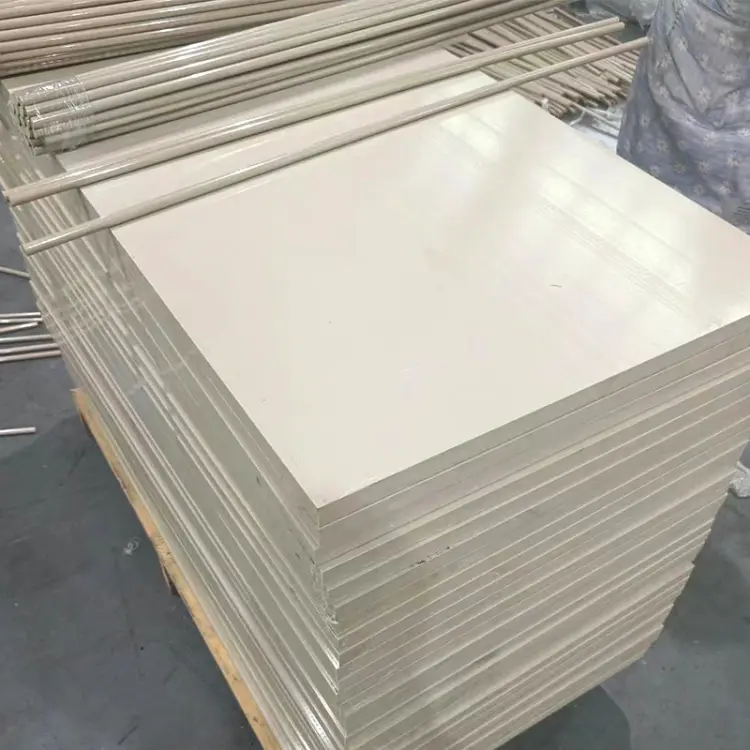

30% Glass-Filled PEEK Sheet is a compression-molded or extruded plate made from Victrex® or equivalent PEEK resin compounded with 30% by weight glass fiber. Also referred to as 30% GF PEEK sheet or glass-reinforced PEEK plate. Standard thicknesses run from 2 mm to 50 mm. Sheet size is 1000 mm × 1000 mm. Continuous operating temperature is 260 °C. Short-term peak reaches 300 °C. Natural (tan) and black are stock colours.
Applications
- Semiconductor test sockets and wafer handling
- High-temperature electrical insulators and terminal blocks
- Chemical pump and valve seats, seals, and bushings
- Autoclave-resistant medical device components
- Aircraft structural brackets and thermal shields
- Oil and gas downhole connector insulators
Technical Specifications
| Property |
Value |
Test Method |
| Glass fiber content (wt%) |
30 |
ISO 3451 |
| Density (g/cm³) |
1.49 |
ISO 1183 |
| Thickness (mm) |
2, 3, 5, 8, 10, 12, 15, 20, 25, 30, 40, 50 |
Steel tape |
| Sheet size (mm) |
1000 × 1000 |
Steel tape |
| Thickness tolerance ≤10 mm |
±0.25 mm |
— |
| Thickness tolerance 12–30 mm |
±0.50 mm |
— |
| Thickness tolerance 40–50 mm |
±0.75 mm |
— |
| Tensile strength (MPa) |
165 |
ISO 527 |
| Flexural modulus (GPa) |
9.5 |
ISO 178 |
| Flexural strength (MPa) |
240 |
ISO 178 |
| Compressive strength (MPa) |
200 |
ISO 604 |
| Izod impact, notched (kJ/m²) |
8.0 |
ISO 180 |
| Hardness (Rockwell M) |
102 |
ASTM D785 |
| Heat deflection temp. (°C, 1.8 MPa) |
315 |
ISO 75 |
| Glass transition temp. Tg (°C) |
143 |
ISO 11357 |
| Melting point Tm (°C) |
343 |
ISO 11357 |
| Continuous service temp. (°C) |
-50 to 260 |
Internal method |
| Thermal expansion coeff. (20–100 °C, ppm/K) |
25 |
ISO 11359 |
| Water absorption (24 h, %) |
0.06 |
ISO 62 |
| Dielectric strength (kV/mm) |
20 |
IEC 60243-1 |
| Volume resistivity (Ω·cm) |
5×10¹⁵ |
IEC 60093 |
| Flammability (1.5 mm) |
V‑0 |
UL 94 |
Key Performance Data
- Flexural modulus holds above 8 GPa at 200 °C. The 30% GF PEEK sheet retains 85 % of its room‑temperature tensile strength at 260 °C after 1000 h.
- Heat deflection temperature reaches 315 °C under 1.8 MPa load — 170 °C higher than unfilled PEEK.
- Resistant to steam, hot water, and all organic solvents. No weight change after 30 days in concentrated HCl at 80 °C.
- UL 94 V‑0 down to 1.5 mm. Limited oxygen index 35 %. Smoke density per ASTM E662 below 0.05 (Ds, 4 min).
- Surface resistivity above 10¹⁵ Ω. No conductive path forms after 96 h at 40 °C / 95 % RH.
- Weight 55 % lighter than aluminum with identical stiffness‑to‑weight ratio.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- REACH (EC) 1907/2006 — PEEK exempt; no SVHC above 0.1 %.
- Third‑party test reports for tensile strength, HDT, and dielectric strength available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Non‑standard thickness or sheet size |
200 kg per size |
7 working days |
USD 120 (refunded on order) |
| Glass fiber content (20–40 %) |
300 kg |
15 working days |
USD 200 (refunded on order) |
| Private label packaging |
500 kg |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Sheets interleaved with PE foam → wrapped in PE film → packed in 5‑ply corrugated box.
- Boxes stacked on ISPM 15 heat‑treated fumigated pallet (1.1 m × 1.1 m).
- Max pallet gross weight: 800 kg.
- 20GP: 10 pallets; 40HQ: 20 pallets.
Quality Control
- Incoming inspection: PEEK resin melt flow index and glass fiber content verified per batch.
- In‑line monitoring: thickness measured on every sheet; specific gravity spot‑checked per shift.
- Batch traceability: each sheet marked with unique lot number, linked to resin compound batch and molding date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
12 working days |
| FCL (approx. 8–10 MT) |
20 working days |
| Trade term |
FOB Shanghai (EXW available) |
