Virgin PEEK Rod

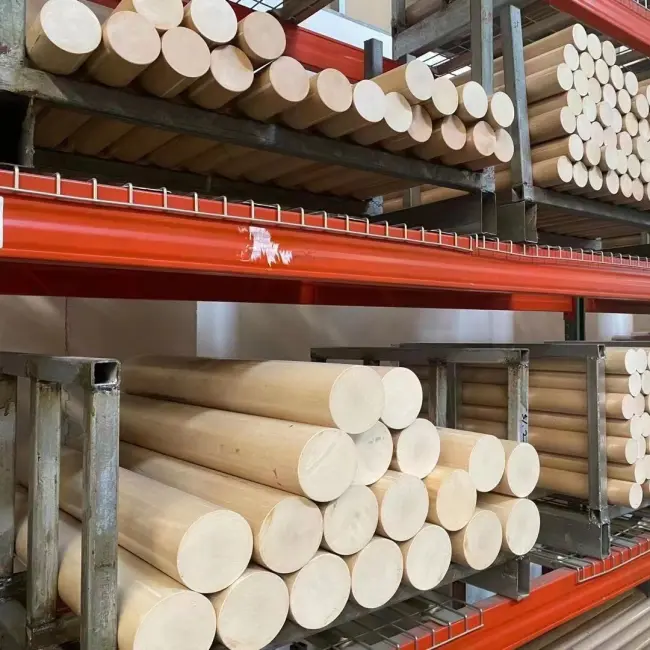

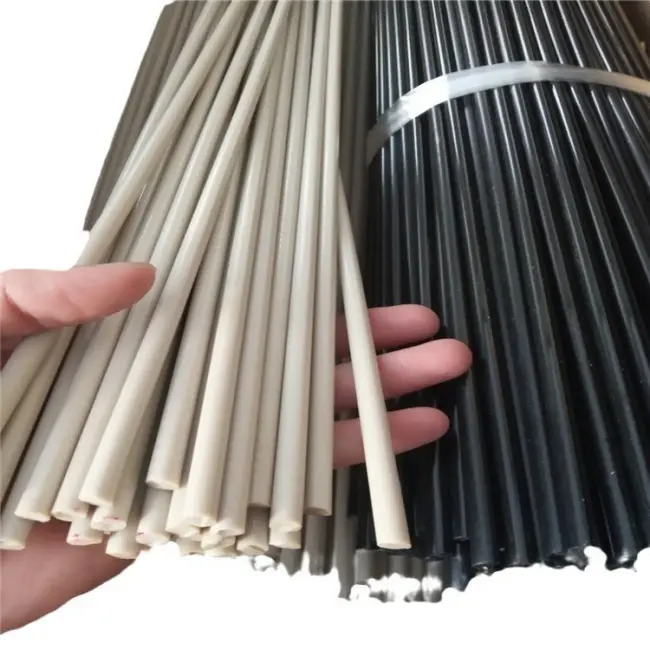

Virgin PEEK Rod is an extruded bar made from 100% virgin polyetheretherketone resin. Also supplied as natural PEEK rod or unfilled PEEK rod, it contains no glass fiber, carbon fiber, or recycled content. Standard diameters run from 6 mm to 200 mm. Standard length is 1000 mm. Continuous operating temperature spans -50 °C to 260 °C. Short‑term peak reaches 300 °C. Natural (tan/light brown) and black are stock colours.

Applications

• Semiconductor wafer handling components and IC test sockets
• Chemical pump bushings, thrust washers, and valve seats
• High‑voltage insulators and terminal blocks
• Medical and pharmaceutical equipment parts
• Aircraft structural spacers and gaskets
• Oil and gas down‑hole connector insulators

Technical Specifications

Property	Value	Test Method
Material	100% virgin PEEK	—
Standard diameters (mm)	6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 150, 200	Steel tape / caliper
Diameter tolerance (6–12 mm)	±0.07 mm	—
Diameter tolerance (15–30 mm)	±0.10 mm	—
Diameter tolerance (40–60 mm)	±0.15 mm	—
Diameter tolerance (80–100 mm)	±0.20 mm	—
Diameter tolerance (120–200 mm)	±0.30 mm	—
Standard length (mm)	1000 ±1.0	Steel tape
Density (g/cm³)	1.32	ISO 1183
Tensile strength (MPa)	100	ISO 527
Flexural modulus (GPa)	4.1	ISO 178
Compressive strength (MPa)	130	ISO 604
Izod impact, notched (kJ/m²)	5.0	ISO 180
Hardness (Rockwell M)	99	ASTM D785
Heat deflection temp. HDT A (°C, 1.8 MPa)	160	ISO 75
Glass transition temp. Tg (°C)	143	ISO 11357
Melting point Tm (°C)	343	ISO 11357
Coefficient of linear thermal expansion (20–100 °C, ppm/K)	50	ISO 11359
Water absorption (24 h, %)	0.05	ISO 62
Dielectric strength (kV/mm)	20	IEC 60243-1
Volume resistivity (Ω·cm)	1×10¹⁶	IEC 60093
Flammability (1.5 mm)	V‑0	UL 94

Key Performance Data

• Coefficient of friction 0.30–0.35 against steel, dry (ASTM D1894). No stick‑slip at low speeds.
• Tensile strength retains over 50 % of room‑temperature value at 250 °C (ISO 527). Long‑term service at 260 °C with zero chemical degradation.
• Resistant to steam, hot water, acids, bases, and all organic solvents. No weight gain after 30 days in concentrated HCl at 80 °C.
• UL 94 V‑0 down to 1.5 mm thickness. Limiting oxygen index 35 %. Smoke density Ds (ASTM E662, 4 min) below 0.05.
• Volume resistivity above 10¹⁶ Ω·cm. Dielectric strength 20 kV/mm. Insulation resistance stays stable after 96 h at 40 °C / 95 % RH.
• Low outgassing. Total mass loss (ASTM E595) below 0.5 %; collected volatile condensable material below 0.1 %.

Certifications & Compliance

• ISO 9001:2015 — certified quality management system.
• RoHS (Directive 2011/65/EU) — compliant.
• REACH (EC) 1907/2006 — PEEK polymer exempt; no SVHC above 0.1 % w/w.
• Third‑party test reports for tensile, HDT, and dielectric strength available upon request.

OEM/ODM Customization

Customization option	MOQ	Sample lead time	Sample charge
Non‑standard diameter or length	200 kg per size	5 working days	USD 80 (refunded on order)
Black colour (carbon‑filled, not virgin)	200 kg	7 working days	USD 100 (refunded on order)
Private label packaging	500 kg	3 working days (artwork)	Free

Packaging & Container Loading

• Each rod wrapped in PE film → packed in 5‑ply corrugated box.
• Boxes stacked on ISPM 15 heat‑treated fumigated pallet (1.1 m × 1.1 m).
• Maximum pallet gross weight: 800 kg.
• 20GP container: approx. 10 pallets; 40HQ: approx. 20 pallets.

Quality Control

• Incoming inspection: PEEK resin melt flow index and density verified per batch.

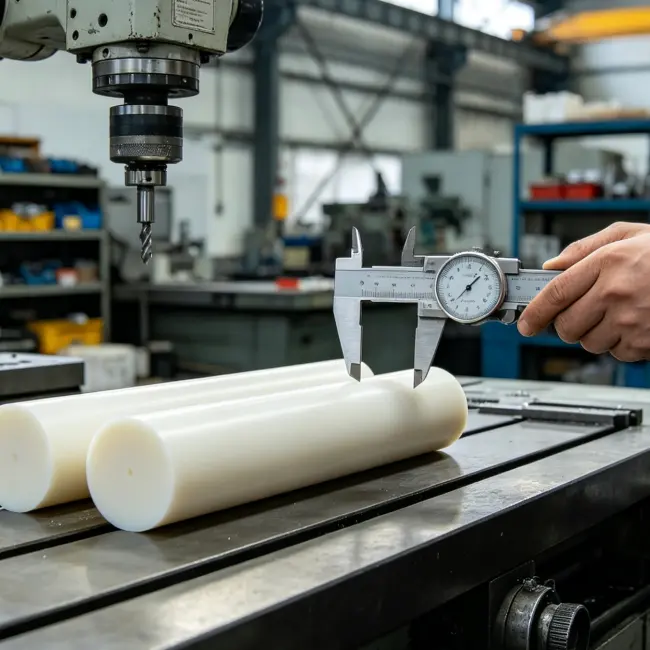

• In‑line monitoring: diameter and straightness checked with laser micrometer on 10 % of rods per shift.
• Batch traceability: unique lot number laser‑marked on each rod. Traceable to resin lot and extrusion date.

Lead Time & Supply

Order size	Lead time
≤500 kg	10 working days
FCL (approx. 8–10 MT)	15 working days
Trade term	FOB Shanghai (EXW available)
