What is Ramie Packing Impregnated With PTFE?
Ramie Packing Impregnated With PTFE is a square-braided natural fiber gland packing made from high-grade ramie yarn that is thoroughly saturated with a PTFE suspensoid and a silicone-free lubricant. This PTFE-impregnated ramie packing delivers a low-friction, shaft-friendly seal for rotating and reciprocating equipment. It is widely used in water and wastewater pumps, marine stern glands, food-grade water lines, and general industrial valves where operators need reliable sealing without excessive shaft wear.
Material & Construction

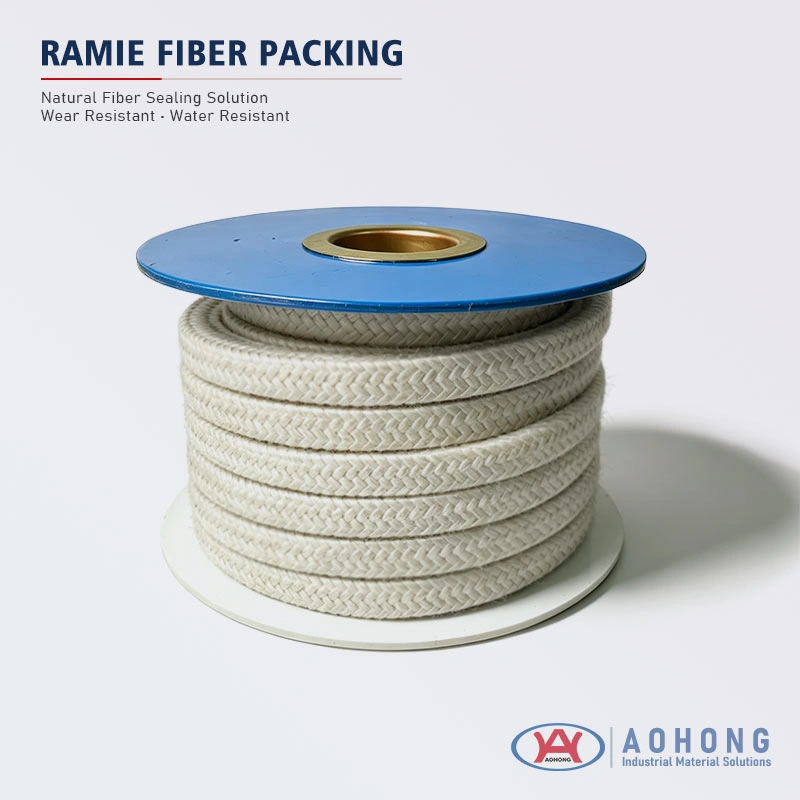

Ramie Packing Impregnated With PTFE is produced by precision-braiding bleached, long-fiber ramie yarn into a dense square cross-section. During the braiding process, each strand is impregnated with a PTFE dispersion and a specially formulated silicone-free lubricant. The result is a homogeneous packing that combines the natural resilience of ramie with the low-friction and chemical-resistant properties of PTFE. Available constructions include standard square braid, interlock braid, and optional cores (silicone rubber or PTFE) to meet different gland requirements.

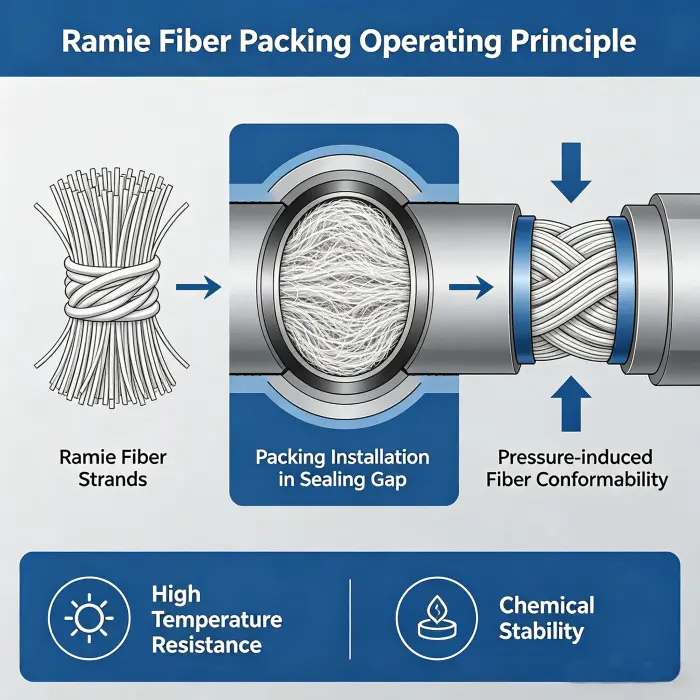

How It Seals
Under gland compression, the PTFE-saturated ramie fibers conform tightly to the shaft and stuffing box walls, forming a dense yet flexible sealing mass. The impregnated PTFE reduces the coefficient of friction, allowing the packing to run cooler and with less drag. The silicone-free lubricant aids initial break-in, minimizes start-up leakage, and helps the packing bed in quickly. This combination makes Ramie Packing Impregnated With PTFE particularly effective in services where shaft protection and abrasive-media tolerance are essential.
Typical Applications
Water & Wastewater Pumps
Centrifugal and reciprocating pumps handling raw water, cooling water, sewage, and light slurry. This ramie PTFE packing is widely adopted by municipal plants to reduce shaft repair costs and maintenance downtime.
Marine Stern Glands & Rudder Posts
Silicone-free formulations make Ramie Packing Impregnated With PTFE the preferred choice for stern tubes, stabilizer shafts, and rudder glands. It offers excellent saltwater tolerance without scoring expensive propeller shafts.
Food, Beverage & Pharma Water Lines
Non-staining, white PTFE-impregnated ramie packing is used in bottling plants, breweries, and pharmaceutical process water pumps. When paired with our silicone-free lubricant, it meets the cleanliness expectations of these regulated industries (confirm specific compliance with our engineers).
General Industrial Valves
A clean, non-abrasive alternative to graphite or mineral-filled packings. It reduces stem torque and prevents scoring on stainless steel valve stems in general industrial and municipal service.
Key Performance Parameters
| Parameter | Value | Note |
|---|---|---|
| Temperature (continuous) | –50 °C to +150 °C | Suitable for most hot/cold water services |
| Temperature (short-term peak) | Up to +200 °C | Grade-dependent; verify datasheet |
| pH Range | 4 – 12 | Confirm for strong oxidizers |
| Pressure (rotating) | ~20–25 bar | Depends on gland design and ring count |
| Pressure (reciprocating) | ~25–30 bar | |
| Pressure (static/valve) | Up to 50 bar | |
| Shaft Speed (rotating) | 7–10 m/s | Matches standard 4-pole motor pumps |
| Friction Behavior | Low coefficient of friction | Gentle on shafts; reduces sleeve wear |
Always request the full engineering datasheet for gland load recommendations and PV limits specific to your equipment.

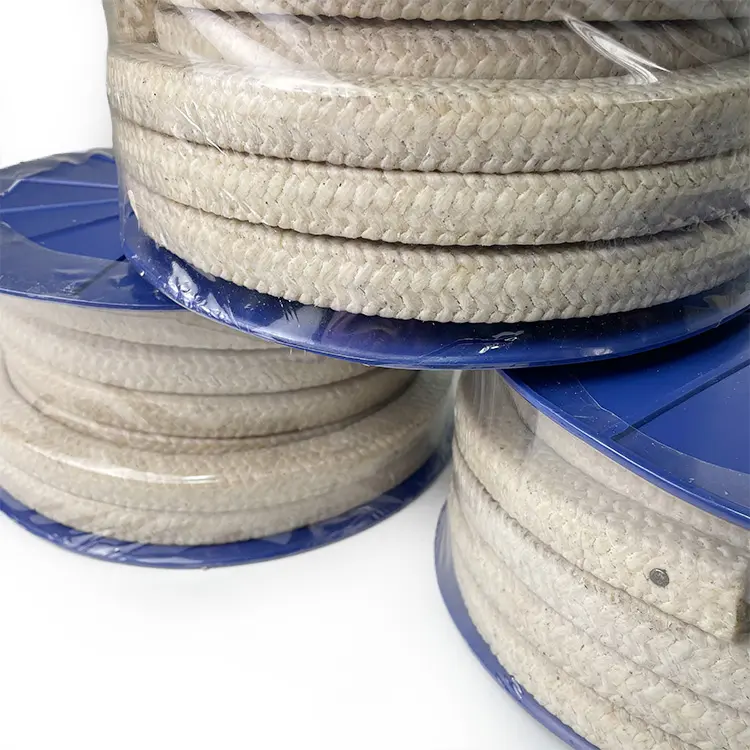

Standard Sizes & Packaging
Ramie Packing Impregnated With PTFE is stocked in square cross-sections from 4 mm to 30 mm (e.g., 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30 mm). Custom sizes are available on request.
- Trial Coils: 3 m or 8 m retail packs for maintenance workshops.
- Bulk Coils: Sold by the meter or by weight (kg) for high-consumption users.
- Pre-Formed / Die-Formed Ring Sets: Cut to your exact ID/OD, ready to install — the recommended format for reducing downtime.
Product Variants & Custom Options
- Silicone-Free Lubricant (Standard): Non-contaminating, suitable for potable water and food-processing water lines.
- Core Options: Silicone rubber core or PTFE core for added resilience in worn equipment.
- Pre-Cut Ring Kits: Die-formed rings made to your pump model or stuffing box dimensions.
- Private-Label Spools & Batch Traceability: Available for OEM and distributor partners.
Benefits – Why Choose Ramie Packing Impregnated With PTFE
- Shaft-Friendly Operation: The natural ramie fiber plus PTFE impregnation creates a low-friction seal that measurably reduces shaft and sleeve wear. That means fewer shaft replacements and lower total maintenance cost.
- Excellent Slurry & Abrasion Tolerance: The dense square-braid construction resists extrusion and handles sandy water, pulp, and sludge. This ramie packing with PTFE lasts longer in harsh water services than untreated natural fiber packings.
- Non-Contaminating Formulations: Our silicone-free lubricant system makes this packing safe for water lines in beverage, brewing, and pharma plants. Full documentation (MSDS, Certificate of Conformance) is supplied to support your audit.
- Fast, Flexible Supply: Because we control braiding and impregnation in-house, we can ship custom die-formed ring sets in days, not weeks. Trial samples and small-batch orders are welcome.
- Lower Cost vs. High-End Synthetics: Ramie Packing Impregnated With PTFE delivers a performance-to-price balance that is hard to beat for water, wastewater, and marine applications where extreme temperatures are not present.
Comparison Table – Ramie PTFE Packing vs Other Materials
| Feature | Ramie + PTFE | Acrylic + PTFE | Aramid (Kevlar) + PTFE | Pure PTFE | Graphite |
|---|---|---|---|---|---|
| Temp. (continuous) | –50 to +150 °C | up to ~260 °C | up to ~260 °C | –200 to +260 °C | extremely high |
| Shaft Wear | Very low | Low | Moderate | Very low | Moderate |
| Abrasion Resistance | Good | Low–moderate | High | Low | Good |
| Slurry Handling | Good | Not recommended | Excellent | Not ideal | Good |
| Food/Water Safety | Silicone-free, non-staining options | Not typical | Not typical | Yes (virgin PTFE) | Not certified |
| Cost | Economical | Higher | Higher | High | Moderate |
| Best For | Water, wastewater, marine, food water lines | High-speed, high-temp pumps | Heavy-duty slurry | Chemical service, clean applications | Steam, extreme temps |
Use this table as a quick selection guide. Our engineers can help match the exact material to your media, temperature, and shaft speed.
Installation & Handling Recommendations
- Use a shaft in good finish condition; deep scoring will reduce packing life.
- Install 4–6 rings for most centrifugal pump glands (5–6 rings for heavy-duty or deep stuffing boxes).
- Stagger ring joints at least 90° apart; cut squarely using a sharp blade or dedicated cutting tool.
- For pre-formed rings, avoid twisting during installation. Lightly tamp each ring into place before adding the next.
- Allow a controlled run-in period with slightly higher initial leakage, then gradually adjust the gland follower to achieve the target leakage rate. Do not overtighten.
Frequently Asked Questions (FAQ)
Q: Is this ramie packing impregnated with PTFE asbestos-free?
A: Yes. It is made from natural ramie fiber and contains absolutely no asbestos. MSDS and material declarations are available.
Q: Can I use this packing for steam service?
A: Ramie Packing Impregnated With PTFE is rated for moderate temperatures (typically up to 130–150 °C continuous). For high-temperature steam, we recommend our graphite or synthetic fiber packings.
Q: Do you offer food-grade certification?
A: We supply a silicone-free, non-staining formulation that is widely used in brewery, beverage, and food-grade water lines. While this specific SKU may not carry a formal NSF certification, we provide full compositional disclosure and a statement of non-toxicity to support your own validation.
Q: What are the typical MOQ and lead times?
A: For standard sizes, trial coils can ship within 3–5 working days. Custom die-formed ring sets generally ship in 5–7 working days. Minimum order quantities are flexible; we support both small trial orders and volume production.
Q: Can you supply pre-formed rings to fit my pump model?
A: Yes. Provide your pump make/model or stuffing box dimensions (bore ID, shaft OD, depth) and we will supply ready-to-install ring kits.
Q: What documentation do you provide?
A: Standard documentation includes MSDS, Certificate of Conformance, and batch traceability records. Additional certificates (CoA, material declarations) are available on request.
Technical Datasheet (Summary)
- Material: Bleached ramie yarn (Boehmeria nivea)
- Impregnation: PTFE suspensoid + silicone-free lubricant
- Color: Natural white / off-white
- Construction: Square braid / interlock braid; optional cores
- Temperature: –50 °C to +150 °C (continuous); short-term peak up to +200 °C
- Pressure (rotating): ≈20–25 bar; (valves) up to 50 bar
- Speed: 7–10 m/s
- pH Range: 4–12
- Sizes: 4 mm – 30 mm (square); custom up to 30 mm+
- Supply: Coils (by m or kg), pre-formed ring sets
Why Our Ramie Packing Impregnated With PTFE is Different
- Engineering-First Approach: We don’t just sell a generic SKU. We optimize braid pattern, PTFE content, and lubricant formulation for your actual operating conditions — whether that’s a municipal sewage pump or a brewery water line.
- Full In-House Control: From ramie yarn braiding to PTFE impregnation, every step happens in our own facility. This guarantees batch-to-batch consistency and complete traceability.
- Custom Ring Service That Saves You Downtime: Provide your pump model or stuffing box dimensions and we deliver die-formed rings that fit perfectly, install in minutes, and seal from the first run. We can also set up a safety stock program against your maintenance schedule.
- Documentation You Can Trust: Every shipment comes with MSDS and a Certificate of Conformance. For food/water contact applications we supply a written compositional disclosure that simplifies your procurement audit.
- Responsive Support: Need gland load advice? A failure analysis? An alternative recommendation for a different process? Our sealing engineers work directly with you — no call centers, no waiting days for a reply.
