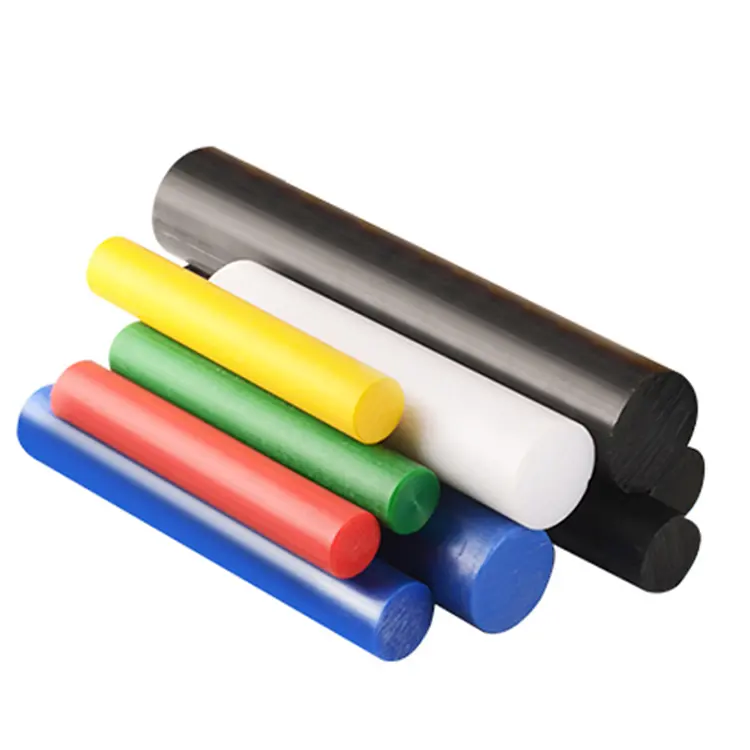

UHMWPE Round Rod is extruded from 100% virgin ultra-high molecular weight polyethylene resin. Also supplied as UHMWPE round bar or virgin UHMWPE rod. Standard diameters run from 10 mm to 200 mm. Standard length is 1000 mm. Cut-to-length pieces and CNC-machined features (flats, grooves, drilled holes) are available. Continuous operating temperature is -200 °C to 80 °C. Natural (white), black, and green colours are stocked.
Applications
- Bearings, bushings, and thrust washers
- Guide rails and wear strips
- Food processing machinery rollers and pins
- Chemical tank liners and spacers
- Marine fender pins and rubbing blocks
- Conveyor components and star wheels
Technical Specifications
| Property |
Value |
Test Method |
| Material |
100% virgin UHMWPE |
— |
| Standard diameters (mm) |
10, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 150, 200 |
Steel tape / caliper |
| Diameter tolerance (10–30 mm) |
±0.30 mm |
— |
| Diameter tolerance (40–80 mm) |
±0.50 mm |
— |
| Diameter tolerance (100–200 mm) |
±0.80 mm |
— |
| Standard length (mm) |
1000 |
Steel tape |
| Density (g/cm³) |
0.93 – 0.94 |
ISO 1183 |
| Molecular weight |
≥4.5 million g/mol |
Internal method |
| Tensile strength (MPa) |
≥40 |
ISO 527 |
| Elongation at break (%) |
≥300 |
ISO 527 |
| Flexural modulus (MPa) |
≥800 |
ISO 178 |
| Compressive strength (MPa) |
≥20 |
ISO 604 |
| Hardness (Shore D) |
63 – 65 |
ISO 868 |
| Coefficient of friction (dry vs steel) |
0.10 – 0.15 |
ASTM D1894 |
| Water absorption (24 h, %) |
<0.01 |
ISO 62 |
| Continuous service temp. (°C) |
-200 to 80 |
Internal method |
| Short-term peak temp. (°C) |
95 |
— |
| Flammability |
HB |
UL 94 |
Key Performance Data
- Coefficient of friction 0.10–0.15 against steel, dry. No stick-slip at low speeds.
- Abrasion loss ≤80 mm³ (sand-slurry per ASTM G65). Outlasts nylon 6 by 2–3× in sliding wear.
- Water absorption below 0.01%. No swelling in fresh or salt water.
- Impact strength remains ductile at -200 °C. Does not crack under repeated hammer impact.
- FDA 21 CFR 177.1520 compliant natural and green grades for food contact.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- FDA 21 CFR 177.1520 — compliant natural and green grades.
- Third-party test reports for tensile, abrasion, and coefficient of friction available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Non-standard diameter or cut length |
200 kg per size |
5 working days |
USD 50 (refunded on order) |
| Colour or grade (UV, anti-static, FDA) |
300 kg |
7 working days |
USD 60 (refunded on order) |
| Private label packaging |
500 kg |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Each rod wrapped in PE film → bundled → packed in 5‑ply corrugated box.
- Boxes stacked on ISPM 15 heat-treated fumigated pallet (1.1 m × 1.1 m).
- Maximum pallet gross weight: 800 kg.
- 20GP: approx. 10 pallets; 40HQ: approx. 20 pallets.
Quality Control
- Incoming inspection: UHMWPE resin molecular weight and density verified per batch.
- In-line monitoring: diameter checked with laser micrometer on 10% of rods per shift.
- Batch traceability: unique lot number laser-marked on each rod. Traceable to resin batch and extrusion date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
10 working days |
| FCL (approx. 8–10 MT) |
15 working days |
| Trade term |
FOB Shanghai (EXW available) |
Downloads
Full UHMWPE Product Catalogue (PDF)
