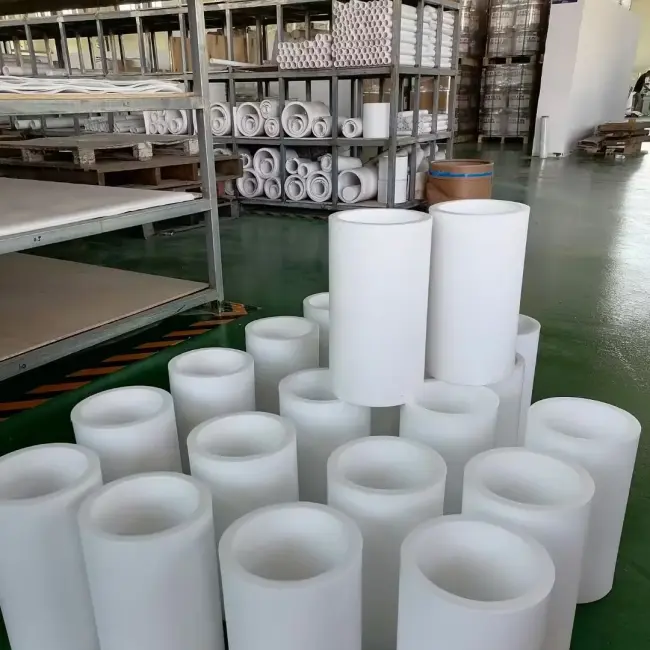

PTFE Hollow Bar is an extruded or compression-molded tube made from 100% virgin PTFE. It serves as a chemical-resistant sleeve, electrical insulator, and non-stick bushing. Outer diameters range from 15 mm to 200 mm. Inner diameters range from 5 mm to 150 mm. Standard length is 1000 mm. Continuous operating temperature spans -200 °C to 260 °C.
Applications
- Chemical-resistant pipe liners and spacers
- Insulating bushings for transformers and switchgear
- Valve stem packing sleeves
- Food-grade guide rails and rollers
- Corrosion-resistant flanged bearings
Technical Specifications
| Property |
Value |
Test Method |
| Material |
100% virgin PTFE |
— |
| Outer Diameter (OD) range (mm) |
15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 150, 200 |
Steel tape / caliper |
| Inner Diameter (ID) range (mm) |
5, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 150 |
Plug gauge / caliper |
| OD tolerance (≤50 mm) |
±0.20 mm |
— |
| OD tolerance (60–200 mm) |
±0.50 mm |
— |
| ID tolerance (all diameters) |
±0.30 mm |
— |
| Minimum wall thickness |
2.0 mm |
— |
| Standard length (mm) |
1000 |
Steel tape |
| Density (g/cm³) |
2.15 – 2.18 |
ASTM D792 |
| Tensile strength (MPa) |
≥25 |
ASTM D638 |
| Elongation at break (%) |
≥250 |
ASTM D638 |
| Hardness (Shore D) |
55 – 60 |
ASTM D2240 |
| Dielectric strength (kV/mm) |
≥18 |
ASTM D149 |
| Melting point (°C) |
327 ±5 |
ASTM D3418 |
| Water absorption (%) |
<0.01 |
ASTM D570 |
| Coefficient of friction (static vs steel) |
0.04 – 0.08 |
ASTM D1894 |
| Continuous service temp. (°C) |
-200 to 260 |
Internal method |
Key Performance Data
- Water absorption below 0.01%. No dimensional change in wet or humid conditions.
- Static friction coefficient 0.04–0.08 against polished steel. Stick-slip eliminated at low speeds.
- Inert to almost all chemicals except molten alkali metals and elemental fluorine under pressure.
- No embrittlement after 1000 hours at 260 °C. Flexibility retained at -200 °C.
- Flame rating UL 94 V‑0. Self-extinguishing.
Certifications & Compliance
- ISO 9001:2015 — certified quality management system.
- RoHS (Directive 2011/65/EU) — compliant.
- REACH (EC) 1907/2006 — PTFE polymer exempt from registration; no SVHC above 0.1% w/w.
- Third-party test reports for tensile strength, dielectric breakdown, and dimensional accuracy available upon request.
OEM/ODM Customization
| Customization option |
MOQ |
Sample lead time |
Sample charge |
| Non-standard OD, ID, or length |
200 kg per size |
5 working days |
USD 50 (refunded on order) |
| Etched surface for bonding |
300 kg |
7 working days |
USD 80 (refunded on order) |
| Private label packaging |
500 pieces |
3 working days (artwork) |
Free |
Packaging & Container Loading
- Each bar wrapped in PE film → bundled by diameter → packed in 5‑ply corrugated box.
- Boxes stacked on ISPM 15 heat-treated fumigated pallet (1.1 m × 1.1 m).
- Maximum pallet gross weight: 800 kg.
- 20GP container: 10 pallets; 40HQ: 20 pallets.
Quality Control
- Incoming inspection: virgin resin DSC melting point and moisture content verified per batch.
- In‑line monitoring: OD and ID measured with laser micrometer on 10% of bars every shift. Tensile specimen pulled from 1 bar per 200 kg.
- Batch traceability: unique lot number laser-marked on each bar. Traceable to resin lot and molding date.
Lead Time & Supply
| Order size |
Lead time |
| ≤500 kg |
10 working days |
| FCL (approx. 8–10 MT) |
20 working days |
| Trade term |
FOB Shanghai (EXW available) |
Downloads
Full PTFE Product Catalogue (PDF)
